Part Details for TPS4H000AQPWPRQ1 by Texas Instruments
Results Overview of TPS4H000AQPWPRQ1 by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (2 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
TPS4H000AQPWPRQ1 Information
TPS4H000AQPWPRQ1 by Texas Instruments is a Peripheral Driver.
Peripheral Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TPS4H000AQPWPRQ1 | Texas Instruments | 40-V/1000-mΩ Quad Channels Smart High-Side Switch 20-HTSSOP -40 to 125 |
Price & Stock for TPS4H000AQPWPRQ1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3008941
|
Farnell | POWER LOAD SWITCH, AEC-Q100, 40V, HTSSOP RoHS: Compliant Min Qty: 1 Lead time: 53 Weeks, 2 Days Container: Cut Tape | 1573 |
|
$1.3427 / $2.6195 | Buy Now |
|
DISTI #
3008941RL
|
Farnell | POWER LOAD SWITCH, AEC-Q100, 40V, HTSSOP RoHS: Compliant Min Qty: 100 Lead time: 53 Weeks, 2 Days Container: Reel | 1573 |
|
$1.3427 / $1.5664 | Buy Now |
|
|
LCSC | 4 1.6A Active High High Side Switch HTSSOP-20-EP Power Distribution Switches Load Drivers RoHS | 1158 |
|
$0.7398 / $1.3913 | Buy Now |
|
|
Win Source Electronics | IC PWR SWTCH N-CHAN 1:1 20HTSSOP | 67194 |
|
$0.8518 / $1.1002 | Buy Now |
US Tariff Estimator: TPS4H000AQPWPRQ1 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TPS4H000AQPWPRQ1
TPS4H000AQPWPRQ1 CAD Models
-

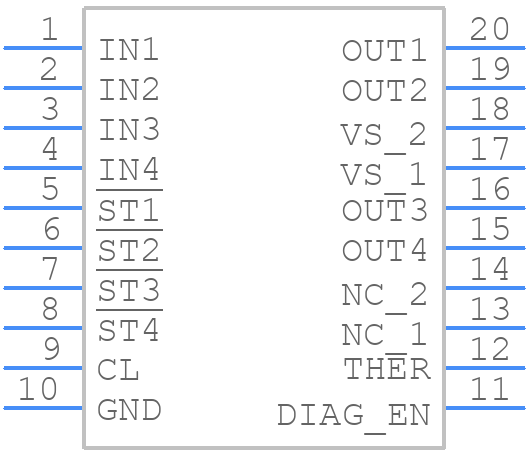

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TPS4H000AQPWPRQ1 Part Data Attributes
|
|
TPS4H000AQPWPRQ1
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS4H000AQPWPRQ1
Texas Instruments
40-V, 1-Ω, 4-ch automotive smart high-side switch with adjustable current limit 20-HTSSOP -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | TSSOP, | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Date Of Intro | 2016-11-01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Built-in Protections | TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE | |
| High Side Driver | YES | |
| Interface IC Type | BUFFER OR INVERTER BASED PERIPHERAL DRIVER | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e4 | |
| Length | 6.5 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Channels | 4 | |
| Number of Functions | 4 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current Flow Direction | SOURCE | |
| Output Peak Current Limit-Nom | 0.75 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Max | 40 V | |
| Supply Voltage-Min | 4 V | |
| Supply Voltage-Nom | 13.5 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Turn-off Time | 60 µs | |
| Turn-on Time | 60 µs | |
| Width | 4.4 mm |
Alternate Parts for TPS4H000AQPWPRQ1
This table gives cross-reference parts and alternative options found for TPS4H000AQPWPRQ1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPS4H000AQPWPRQ1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TPS4H000BQPWPRQ1 | Texas Instruments | $1.4243 | 40-V, 1-Ω, 4-ch automotive smart high-side switch with adjustable current limit 20-HTSSOP -40 to 125 | TPS4H000AQPWPRQ1 vs TPS4H000BQPWPRQ1 |
| ITS716GFUMA1 | Infineon Technologies AG | $2.5720 | Buffer/Inverter Based Peripheral Driver, 0.7A, PDSO20, GREEN, PLASTIC, SOP-20 | TPS4H000AQPWPRQ1 vs ITS716GFUMA1 |
TPS4H000AQPWPRQ1 Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure that the thermal pad is connected to a large copper area to dissipate heat efficiently.
-
Choose an input capacitor with a voltage rating of at least 6.3V, a capacitance value between 4.7µF to 10µF, and an ESR of less than 100mΩ. X5R or X7R ceramic capacitors are suitable options.
-
The TPS4H000AQPWPRQ1 can deliver up to 1A of output current. However, the maximum current is dependent on the input voltage, output voltage, and thermal conditions. Ensure that the device is properly heatsinked and the output current is within the recommended operating range.
-
The TPS4H000AQPWPRQ1 has a built-in overcurrent protection feature. Connect a resistor (RILIM) between the ILIM pin and GND to set the overcurrent limit. The recommended value for RILIM is 10kΩ to 20kΩ.
-
The EN (enable) pin is used to turn the device on or off. Connect the EN pin to a logic signal (e.g., from a microcontroller) to enable or disable the output voltage. A logic high (>1.4V) enables the output, while a logic low (<0.4V) disables it.
