Part Details for TPS54202HDDCT by Texas Instruments
Results Overview of TPS54202HDDCT by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (3 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
TPS54202HDDCT Information
TPS54202HDDCT by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TPS54202HDDCT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
33AH5242
|
Newark | Dc/Dc Conv, Sync Buck, 500Khz, 2A, Sot-6, Topology:Synchronous Buck (Step Down), Input Voltage Min:4.5V, Input Voltage Max:28V, No. Of Outputs:1Outputs, Dc/Dc Converter Ic Case:Sot, No. Of Pins:6Pins, Output Current:2A, Output Rohs Compliant: Yes |Texas Instruments TPS54202HDDCT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 218 |
|
$1.6700 / $2.0100 | Buy Now |
|
|
Bristol Electronics | 2541 |
|
RFQ | ||
|
|
Ameya Holding Limited | BUCK ADJ 2A SYNC SOT23-6 | 602 |
|
RFQ | |
|
DISTI #
TPS54202HDDCT
|
Chip One Stop | Semiconductors RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 357 |
|
$0.6570 / $1.5000 | Buy Now |
|
|
Win Source Electronics | IC REG BUCK ADJ 2A SYNC 6SOT / Conv DC-DC 4.5V to 28V Synchronous Step Down Single-Out 0.6V to 26V 2A 6-Pin TSOT-23 T/R | 74850 |
|
$0.1846 / $0.2384 | Buy Now |
US Tariff Estimator: TPS54202HDDCT by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TPS54202HDDCT
TPS54202HDDCT CAD Models
-

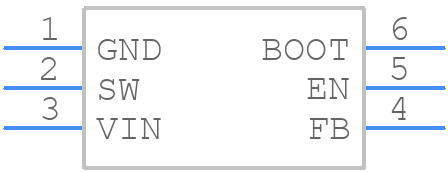

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TPS54202HDDCT Part Data Attributes
|
|
TPS54202HDDCT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS54202HDDCT
Texas Instruments
4.5V to 28V Input, 2A Output, Synchronous Step-Down Voltage Converter 6-SOT-23-THIN -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | TSSOP, | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Date Of Intro | 2016-05-01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 28 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 2 A | |
| Output Voltage-Max | 26 V | |
| Output Voltage-Min | 0.6 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.1 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 500 kHz | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.6 mm |
Alternate Parts for TPS54202HDDCT
This table gives cross-reference parts and alternative options found for TPS54202HDDCT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPS54202HDDCT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TPS54202DDCR | Texas Instruments | $0.6649 | 4.5V to 28V Input, 2A Output, EMI Friendly Synchronous Step-Down Converter 6-SOT-23-THIN -40 to 125 | TPS54202HDDCT vs TPS54202DDCR |
| TPS54202DDCT | Texas Instruments | $1.8752 | 4.5V to 28V Input, 2A Output, EMI Friendly Synchronous Step-Down Converter 6-SOT-23-THIN -40 to 125 | TPS54202HDDCT vs TPS54202DDCT |
| TPP362080-T6TR | 3peak Incorporated | Check for Price | Step-Down DC-DC Voltage Converter IC TSOT23-6 | TPS54202HDDCT vs TPP362080-T6TR |
TPS54202HDDCT Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the TPS54202HDDCT is 42V, but it's recommended to keep it below 40V for reliable operation.
-
To ensure the stability of the output voltage, make sure to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a sufficient capacitance value, as recommended in the datasheet.
-
The EN (Enable) pin is used to enable or disable the device. When EN is high, the device is enabled, and when EN is low, the device is disabled. You can use this pin to turn the device on and off, or to implement a power-saving mode.
-
The output voltage of the TPS54202HDDCT can be calculated using the formula: Vout = (R1 / R2) * (Vref), where R1 and R2 are the resistors connected to the FB (Feedback) pin, and Vref is the internal reference voltage (1.22V).
-
The maximum output current that the TPS54202HDDCT can deliver is 2A, but it's recommended to keep the output current below 1.5A for reliable operation.
