TPS54233DR Information
TPS54233DR by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TPS54233DRG4 | Texas Instruments | 3.5 to 28V Input, 2A, 300kHz Step-Down Converter with Eco-mode 8-SOIC -40 to 150 | |
| TPS54233DR | Texas Instruments | 3.5 to 28V Input, 2A, 300kHz Step-Down Converter with Eco-mode 8-SOIC -40 to 150 |
Price & Stock for TPS54233DR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 134 |
|
RFQ | ||
|
|
Ameya Holding Limited | IC REG BUCK ADJ 2A 8SOIC | 4876 |
|
RFQ | |
|
|
Karl Kruse GmbH & Co KG | Conv DC-DC Single Step Down 3.5V to 28V 8-Pin SOIC T/R | 2500 |
|
RFQ | |
|
|
Chip Stock | 3.5to28VInput,2A,300kHzStep-DownConverterwithEco-mode8-SOIC-40to150 | 111190 |
|
RFQ | |
|
|
LCSC | 300kHz 2A Buck Adjustable 800mV25V 1 SOIC-8 Voltage Regulators - DC DC Switching Regulators RoHS | 613 |
|
$0.3889 / $0.7595 | Buy Now |
|
|
Win Source Electronics | IC REG BUCK ADJ 2A 8SOIC | 31923 |
|
$0.3736 / $0.5604 | Buy Now |
US Tariff Estimator: TPS54233DR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TPS54233DR
TPS54233DR CAD Models
-

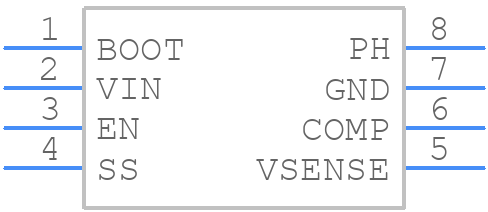

Part Symbol
-
