Part Details for TPS54260DGQR by Texas Instruments
Results Overview of TPS54260DGQR by Texas Instruments
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TPS54260DGQR Information
TPS54260DGQR by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TPS54260DGQR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 14 |
|
RFQ | ||
|
DISTI #
TPS54260DGQR
|
TME | PMIC, DC/DC converter, Uin: 3.5÷60VDC, Uout: 0.8÷58VDC, 2.5A, SMD Min Qty: 1 | 916 |
|
$2.3800 / $4.1600 | Buy Now |
|
|
ComSIT USA | AVAILABLE EU | 8450 |
|
RFQ | |
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
|
NexGen Digital | 9930 |
|
RFQ | ||
|
|
Chip 1 Exchange | INSTOCK | 14092 |
|
RFQ | |
|
DISTI #
TPS54260DGQR
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 1639 |
|
$1.5500 / $2.5600 | Buy Now |
|
|
LCSC | 2.5MHz 2.5A Buck Adjustable 800mV60V 1 MSOP-10-EP Voltage Regulators - DC DC Switching Regulators RoHS | 24157 |
|
$0.2120 / $0.4193 | Buy Now |
|
|
MacroQuest Electronics | ISO 9001: 2015, ISO 14001:2015, ISO 45001:2018 | 15000 |
|
$0.4700 / $0.6200 | Buy Now |
|
|
New Advantage Corporation | IC-54260 REG BUCK ADJ 2.5A 10MSOP RoHS: Compliant Min Qty: 1 Package Multiple: 100 | 648 |
|
$2.8500 / $3.0900 | Buy Now |
US Tariff Estimator: TPS54260DGQR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TPS54260DGQR
TPS54260DGQR CAD Models
-

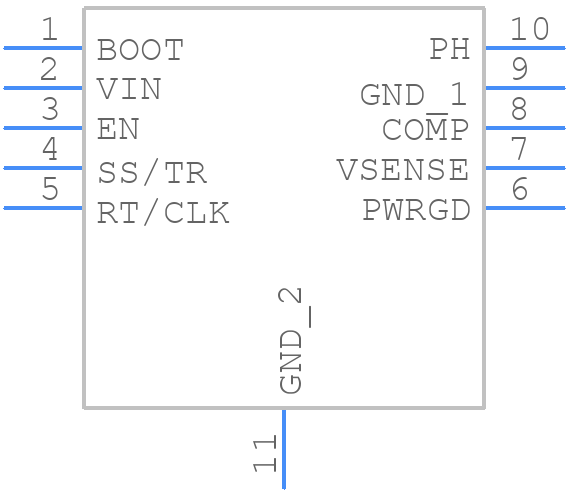

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TPS54260DGQR Part Data Attributes
|
|
TPS54260DGQR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS54260DGQR
Texas Instruments
3.5V to 60V Input, 2.5A Step-Down Converter with Eco-Mode 10-HVSSOP -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | MSOP | |
| Package Description | HTSSOP, TSSOP10,.19,20 | |
| Pin Count | 10 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 60 V | |
| Input Voltage-Min | 3.5 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | S-PDSO-G10 | |
| JESD-609 Code | e4 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 2.5 A | |
| Output Voltage-Max | 58 V | |
| Output Voltage-Min | 0.8 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HTSSOP | |
| Package Equivalence Code | TSSOP10,.19,20 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Supply Current-Max (Isup) | 0.2 mA | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 2500 kHz | |
| Technology | BICMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for TPS54260DGQR
This table gives cross-reference parts and alternative options found for TPS54260DGQR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPS54260DGQR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TPS54240QDRCRQ1 | Texas Instruments | $2.0516 | Automotive 3.5V to 42V, 2.5A Buck Converter with Eco-Mode™ 10-VSON -40 to 125 | TPS54260DGQR vs TPS54240QDRCRQ1 |
| TPS54260DGQ | Texas Instruments | $4.4946 | 3.5V to 60V Input, 2.5A Step-Down Converter with Eco-Mode 10-HVSSOP -40 to 125 | TPS54260DGQR vs TPS54260DGQ |
| TPS54260QDGQRQ1 | Texas Instruments | Check for Price | Automotive 3.5V to 60V, 2.5A Step-down Converter with Eco-Mode™ 10-HVSSOP -40 to 125 | TPS54260DGQR vs TPS54260QDGQRQ1 |
| LT3688HFE#PBF | Analog Devices Inc | Check for Price | Dual 800mA Step-Down Switching Regulator with Power-On Reset and Watchdog Timer | TPS54260DGQR vs LT3688HFE#PBF |
| LT3688HFE#TRPBF | Analog Devices Inc | Check for Price | Dual 800mA Step-Down Switching Regulator with Power-On Reset and Watchdog Timer | TPS54260DGQR vs LT3688HFE#TRPBF |
| V62/16624-01YE | Texas Instruments | Check for Price | 3.5-V to 60-V Input, 2.5A Step-Down Converter With Eco-mode™ 10-VSON -55 to 125 | TPS54260DGQR vs V62/16624-01YE |
| TPS54240QDGQRQ1 | Texas Instruments | Check for Price | Automotive 3.5V to 42V, 2.5A Buck Converter with Eco-Mode™ 10-HVSSOP -40 to 125 | TPS54260DGQR vs TPS54240QDGQRQ1 |
| LT3688IFE#PBF | Analog Devices Inc | Check for Price | Dual 800mA Step-Down Switching Regulator with Power-On Reset and Watchdog Timer | TPS54260DGQR vs LT3688IFE#PBF |
| LT3688IFE#TRPBF | Analog Devices Inc | Check for Price | Dual 800mA Step-Down Switching Regulator with Power-On Reset and Watchdog Timer | TPS54260DGQR vs LT3688IFE#TRPBF |
| TPS54240DRCR | Texas Instruments | Check for Price | 3.5V to 42V Input, 2.5A Step-Down Converter with Eco-Mode 10-VSON -40 to 125 | TPS54260DGQR vs TPS54240DRCR |
TPS54260DGQR Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the TPS54260DGQR is 42V, but it's recommended to keep it below 40V for reliable operation.
-
To ensure the stability of the output voltage, it's essential to use a suitable output capacitor with a low equivalent series resistance (ESR) and a sufficient capacitance value. A 10uF to 22uF ceramic capacitor is recommended.
-
The EN (enable) pin is used to turn the regulator on or off. To turn the regulator on, connect the EN pin to VIN or a logic high signal. To turn it off, connect the EN pin to GND or a logic low signal.
-
The output voltage of the TPS54260DGQR can be adjusted by using a resistor divider network between the output and the ADJ pin. The output voltage is determined by the ratio of the resistors and the internal reference voltage.
-
The maximum output current that the TPS54260DGQR can deliver is 2A, but it's recommended to keep it below 1.5A for reliable operation and to prevent overheating.
