TPS54314PWPR Information
TPS54314PWPR by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TPS54314PWPR | Texas Instruments | 3V to 6V Input, 3A Synchronous Step-Down SWIFT™ Converter with 1.8V Output 20-HTSSOP -40 to 125 | |
| TPS54314PWPRG4 | Texas Instruments | 3V to 6V Input, 3A Synchronous Step-Down SWIFT™ Converter with 1.8V Output 20-HTSSOP -40 to 125 |
Price & Stock for TPS54314PWPR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 1073 |
|
RFQ | ||
|
|
Rochester Electronics | TPS54314 3V to 6V Input, 3A Synchronous Step-Down SWIFT Converter with 1.8V Output RoHS: Compliant Status: Active Min Qty: 1 | 24783 |
|
$2.8300 / $3.5400 | Buy Now |
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
|
LCSC | 280kHz700kHz Buck 3A Fixed 1.8V 1 HTSSOP-20-EP Voltage Regulators - DC DC Switching Regulators RoHS | 4 |
|
$5.5462 / $5.8845 | Buy Now |
|
|
Win Source Electronics | IC REG BCK 1.8V 3A SYNC 20HTSSOP | 2276 |
|
$2.1760 / $3.2640 | Buy Now |
US Tariff Estimator: TPS54314PWPR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TPS54314PWPR
TPS54314PWPR CAD Models
-

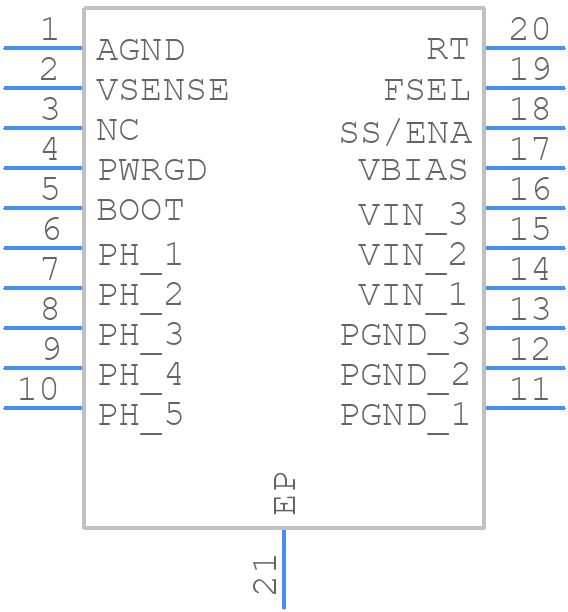

Part Symbol
-

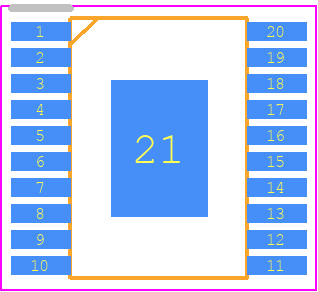

Footprint
-
