Part Details for TPS5431DDAR by Texas Instruments
Results Overview of TPS5431DDAR by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (2 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TPS5431DDAR Information
TPS5431DDAR by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TPS5431DDAR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Rochester Electronics | TPS5431 5.5V to 23V Input, 3A, 500kHz Step-Down Converter RoHS: Compliant Status: Active Min Qty: 1 | 14 |
|
$2.0600 / $2.5800 | Buy Now |
|
|
Chip Stock | 5.5Vto23VInput,3A,500kHzStep-DownConverter8-SOPowerPAD-40to125 | 39500 |
|
RFQ | |
|
|
Win Source Electronics | IC REG BUCK ADJ 3A 8SOPWRPAD | 36000 |
|
$2.0097 / $2.5953 | Buy Now |
US Tariff Estimator: TPS5431DDAR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TPS5431DDAR
TPS5431DDAR CAD Models
-

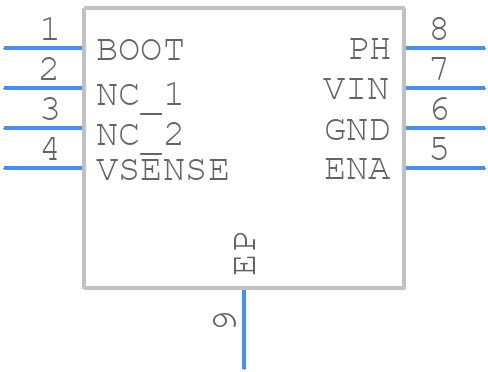

Part Symbol
-

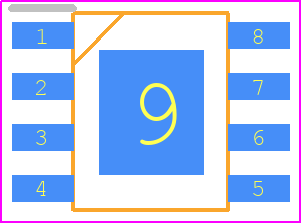

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TPS5431DDAR Part Data Attributes
|
|
TPS5431DDAR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS5431DDAR
Texas Instruments
5.5V to 23V Input, 3A, 500kHz Step-Down Converter 8-SO PowerPAD -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Package Description | Hlsop, Sop8,.25 | |
| Pin Count | 8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Analog IC - Other Type | Switching Regulator | |
| Control Mode | Voltage-Mode | |
| Control Technique | Pulse Width Modulation | |
| Input Voltage-Max | 23 V | |
| Input Voltage-Min | 5.5 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.89 Mm | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 3 A | |
| Output Voltage-Max | 20 V | |
| Output Voltage-Min | 1.23 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HLSOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Heat Sink/Slug, Low Profile | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.68 Mm | |
| Surface Mount | Yes | |
| Switcher Configuration | Buck | |
| Switching Frequency-Max | 500 Khz | |
| Temperature Grade | Automotive | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Width | 3.9 Mm |
Alternate Parts for TPS5431DDAR
This table gives cross-reference parts and alternative options found for TPS5431DDAR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPS5431DDAR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TPS5431DDAG4 | Texas Instruments | Check for Price | 5.5V to 23V Input, 3A, 500kHz Step-Down Converter 8-SO PowerPAD -40 to 125 | TPS5431DDAR vs TPS5431DDAG4 |
TPS5431DDAR Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the TPS5431DDAR is 42V, but it's recommended to keep it below 40V for reliable operation.
-
To ensure stability, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, keep the input and output capacitors close to the device and use a low-ESR capacitor for the output.
-
The minimum input voltage required for the TPS5431DDAR to operate is 6.5V, but it's recommended to keep it above 7V for reliable operation.
-
Yes, the TPS5431DDAR can operate in high-temperature environments, but the junction temperature should not exceed 150°C. Make sure to follow the thermal design guidelines and use a suitable heat sink if necessary.
-
The output voltage of the TPS5431DDAR can be calculated using the formula: Vout = (R1/R2) * (Vref), where R1 and R2 are the resistors in the feedback network, and Vref is the internal reference voltage (1.221V).
