TPS54531DDA Information
TPS54531DDA by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TPS54531DDAR | Texas Instruments | 3.5V to 28V Input, 5A, 570kHz Step-Down Converter with Eco-mode 8-SO PowerPAD -40 to 85 | |
| TPS54531DDA | Texas Instruments | 3.5V to 28V Input, 5A, 570kHz Step-Down Converter with Eco-mode 8-SO PowerPAD -40 to 85 |
Price & Stock for TPS54531DDA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
33AH5258
|
Newark | Ic, Buck, 570Khz, 3.5V To 28V, 5A, soic-8, Topology:Buck (Step Down), Input Voltage Min:3.5V, Input Voltage Max:28V, No. Of Outputs:1Outputs, Dc/Dc Converter Ic Case:So Powerpad, No. Of Pins:8Pins, Output Current:5A, Output Voltage Rohs Compliant: Yes |Texas Instruments TPS54531DDA RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 40 |
|
$3.0600 / $3.8300 | Buy Now |
|
|
Bristol Electronics | 37 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 3 | 10 |
|
$2.2500 | Buy Now |
|
DISTI #
TPS54531DDA
|
TME | PMIC, DC/DC converter, Uin: 3.5÷28VDC, Uout: 0.8÷26VDC, 5A, HSOP8 Min Qty: 1 | 103 |
|
$1.5100 / $2.4100 | Buy Now |
|
|
Ameya Holding Limited | PMIC, DC/DC converter, Uin: 3.5÷28V, Uout: 0.8÷26V, SO8, buck | 188351 |
|
RFQ | |
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
|
Chip Stock | 3.5Vto28VInput,5A,570kHzStep-DownConverterwithEco-mode8-SOPowerPAD-40to85 | 73594 |
|
RFQ | |
|
|
LCSC | 570kHz Buck 5A Adjustable 800mV26.04V 1 SO-8 Voltage Regulators - DC DC Switching Regulators RoHS | 456 |
|
$0.2794 / $0.5417 | Buy Now |
|
|
Win Source Electronics | 5A, 28V INPUT, STEP DOWN SWIFT™ DC/DC CONVERTER WITH ECO-mode™ | IC REG BUCK ADJUSTABLE 5A 8SOPWR | 990000 |
|
$0.2182 / $0.2818 | Buy Now |
US Tariff Estimator: TPS54531DDA by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TPS54531DDA
TPS54531DDA CAD Models
-

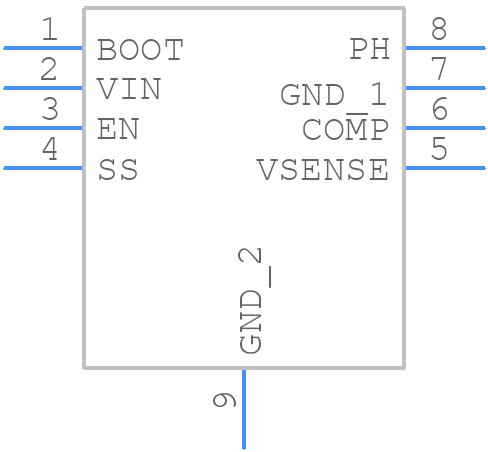

Part Symbol
-

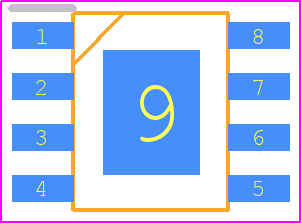

Footprint
-
