TPS71733DCKR Information
TPS71733DCKR by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TPS71733DCKR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29AH8210
|
Newark | Ldo Voltage Regulator, 3.3V, 150Ma, Sc-7, Msl:Msl 1 - Unlimited, Svhc:No Svhc (15-Jan-2019) Rohs Compliant: Yes |Texas Instruments TPS71733DCKR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2576 |
|
$0.9660 / $1.2500 | Buy Now |
|
|
Bristol Electronics | 20031 |
|
RFQ | ||
|
DISTI #
SMC-TPS71733DCKR
|
Sensible Micro Corporation | Ic Reg Ldo 3.3V 0.15A Sc70-5 RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: TBC | 50 |
|
RFQ | |
|
|
Chip Stock | 150-mA,high-PSRR,low-IQ,low-dropoutvoltageregulatorwithenable5-SC70-40to125 | 8530 |
|
RFQ | |
|
|
Win Source Electronics | IC REG LDO 3.3V 0.15A SC70-5 | 2590 |
|
$0.6000 / $0.7750 | Buy Now |
US Tariff Estimator: TPS71733DCKR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TPS71733DCKR
TPS71733DCKR CAD Models
-

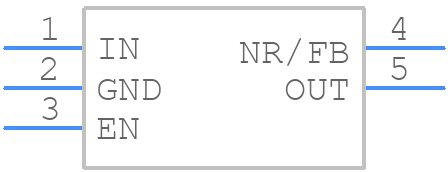

Part Symbol
-
