TPS73601QDBVRQ1 Information
TPS73601QDBVRQ1 by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TPS73601QDBVRQ1 | Texas Instruments | Automotive Single Output LDO, 400mA, Cap free, Low Noise, Reverse Current Protection 5-SOT-23 -40 to 125 |
Price & Stock for TPS73601QDBVRQ1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
TPS73601QDBVRQ1
|
TME | IC: voltage regulator, LDO,adjustable, 1.2÷5.5V, 0.4A, SOT23-5 Min Qty: 1 | 0 |
|
$1.3400 / $2.4200 | RFQ |
|
|
ComSIT USA | AVAILABLE EU | 1154 |
|
RFQ | |
|
|
Chip Stock | LDORegulatorPos1.2Vto5.5V0.4AAutomotive5-PinSOT-23T/R | 50350 |
|
RFQ | |
|
|
Win Source Electronics | IC REG LDO ADJ 0.4A SOT23-5 | 47250 |
|
$0.5601 / $0.8401 | Buy Now |
US Tariff Estimator: TPS73601QDBVRQ1 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TPS73601QDBVRQ1
TPS73601QDBVRQ1 CAD Models
-

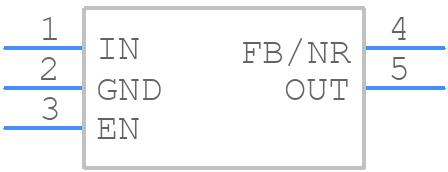

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TPS73601QDBVRQ1 Part Data Attributes
|
|
TPS73601QDBVRQ1
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS73601QDBVRQ1
Texas Instruments
Automotive 400-mA, high-accuracy, low-dropout voltage regulator with reverse current protection 5-SOT-23 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOT-23 | |
| Pin Count | 5 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Adjustability | Adjustable | |
| Dropout Voltage1-Max | 0.2 V | |
| Dropout Voltage1-Nom | 0.075 V | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 1.7 V | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e4 | |
| Length | 2.9 Mm | |
| Line Regulation-Max (%/V) | 0.01 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.4 A | |
| Output Voltage1-Max | 5.4 V | |
| Output Voltage1-Min | 1.2 V | |
| Output Voltage1-Nom | 1.8 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | LSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Low Profile | |
| Packing Method | Tr, 7 Inch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | Adjustable Positive Single Output Ldo Regulator | |
| Screening Level | Aec-Q100 | |
| Seated Height-Max | 1.45 Mm | |
| Surface Mount | Yes | |
| Technology | Bicmos | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.95 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 1% | |
| Width | 1.6 Mm |
