TPS79933DDCT Information
TPS79933DDCT by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TPS79933DDCTG4 | Texas Instruments | 200mA, Low Quiescent Current, Ultra-Low Noise, High PSRR Low Dropout Linear Regulator 5-SOT-23-THIN -40 to 125 | |
| TPS79933DDCT | Texas Instruments | 200mA, Low Quiescent Current, Ultra-Low Noise, High PSRR Low Dropout Linear Regulator 5-SOT-23-THIN -40 to 125 |
Price & Stock for TPS79933DDCT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 995 |
|
RFQ | ||
|
|
Bristol Electronics | 580 |
|
RFQ | ||
|
|
Ameya Holding Limited | TOSOT 5/I°/200MA LOW QUIESCENT CURRENT, ULTRA-LOW NOISE, HIGH PSRR LDO | 238 |
|
RFQ | |
|
|
ComSIT USA | 200 MILLIAMP, LOW QUIESCENT CURRENT, ULTRA-LOW NOISE, HIGH PSRR LOW DROPOUT LINEAR REGULATOR Fixed Positive LDO Regulator, 3.3V, 0.16V Dropout, BICMOS, PDSO5 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
|
Chip Stock | 200-mA,low-IQ,low-dropoutvoltageregulatorwithlow-noise&, enable5-SOT-23-THIN-40to125 | 41590 |
|
RFQ | |
|
|
Win Source Electronics | IC REG LDO 3.3V 0.2A 5SOT | 47040 |
|
$0.1663 / $0.2147 | Buy Now |
US Tariff Estimator: TPS79933DDCT by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TPS79933DDCT
TPS79933DDCT CAD Models
-

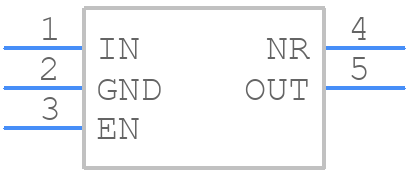

Part Symbol
-
Footprint
-

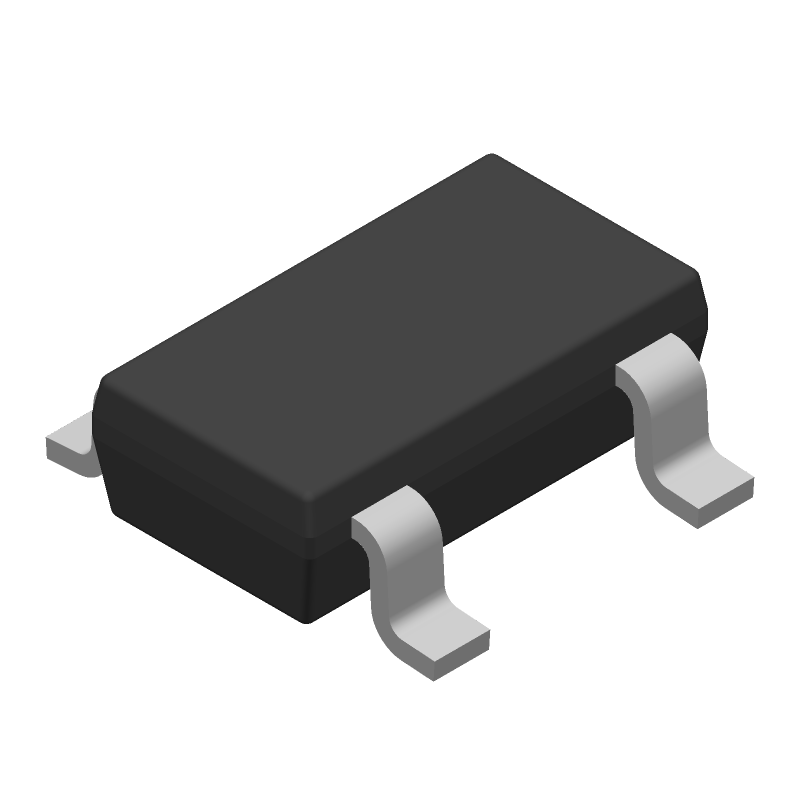

3D Model
