TPS7A2042PDBVR Information
TPS7A2042PDBVR by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TPS7A2042PDBVR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | Min Qty: 9 | 6000 |
|
$0.0891 / $0.5940 | Buy Now |
|
|
Chip Stock | 300mAultra-low-noiselow-IQlow-dropout(LDO)linearregulatorwithhighPSRR5-SOT-23-40to125 | 7500 |
|
RFQ | |
|
|
LCSC | 92dB(1kHz) Positive Fixed 4.2V SOT-23-5 Voltage Regulators - Linear Low Drop Out (LDO) Regulators RoHS | 1795 |
|
$0.1255 / $0.2583 | Buy Now |
|
|
Win Source Electronics | IC POWER / Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5 | 6170 |
|
$0.2228 / $0.3342 | Buy Now |
US Tariff Estimator: TPS7A2042PDBVR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TPS7A2042PDBVR
TPS7A2042PDBVR CAD Models
-

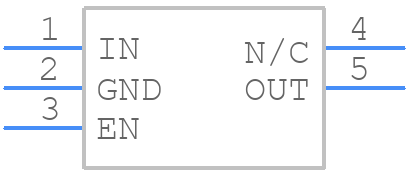

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TPS7A2042PDBVR Part Data Attributes
|
|
TPS7A2042PDBVR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS7A2042PDBVR
Texas Instruments
300mA ultra-low-noise low-IQ low-dropout (LDO) linear regulator with high PSRR 5-SOT-23 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Adjustability | Fixed | |
| Dropout Voltage1-Max | 0.145 V | |
| Dropout Voltage1-Nom | 0.11 V | |
| Input Voltage Absolute-Max | 6.5 V | |
| Input Voltage-Max | 6 V | |
| Input Voltage-Min | 4.5 V | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2.9 Mm | |
| Line Regulation-Max | 0.189% | |
| Load Regulation-Max | 0.019% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.3 A | |
| Output Voltage1-Max | 4.263 V | |
| Output Voltage1-Min | 4.137 V | |
| Output Voltage1-Nom | 4.2 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Low Profile, Shrink Pitch | |
| Packing Method | Tr, 7 Inch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Regulator Type | Fixed Positive Single Output Ldo Regulator | |
| Seated Height-Max | 1.45 Mm | |
| Surface Mount | Yes | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.95 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 1.5% | |
| Width | 1.6 Mm |
Alternate Parts for TPS7A2042PDBVR
This table gives cross-reference parts and alternative options found for TPS7A2042PDBVR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPS7A2042PDBVR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AP2125N-4.2TRG1 | Diodes Incorporated | Check for Price | Fixed Positive LDO Regulator, 4.2V, 0.3V Dropout, CMOS, PDSO3, GREEN, SOT-23, 3 PIN | TPS7A2042PDBVR vs AP2125N-4.2TRG1 |
