TPS7A2633DRVR Information
TPS7A2633DRVR by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TPS7A2633DRVR | Texas Instruments | 500-mA, 18-V, ultra-low-IQ, high-accuracy, adjustable low-dropout voltage regulator with power good 6-WSON -40 to 125 |
Price & Stock for TPS7A2633DRVR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
TPS7A2633DRVR
|
TME | IC: voltage regulator, LDO,linear,fixed, 3.3V, 0.5A, WSON6, SMD Min Qty: 1 | 902 |
|
$0.4250 / $0.8800 | Buy Now |
|
|
Chip Stock | Low-DropoutLinearVoltageRegulator3.3V500mA6-PinWSONT/R | 34420 |
|
RFQ | |
|
|
Win Source Electronics | IC REG LINEAR 3.3V 500MA 6WSON / Linear Voltage Regulator IC Positive Fixed 1 Output 500mA 6-WSON (2x2) | 19600 |
|
$0.7428 / $1.1142 | Buy Now |
US Tariff Estimator: TPS7A2633DRVR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TPS7A2633DRVR
TPS7A2633DRVR CAD Models
-

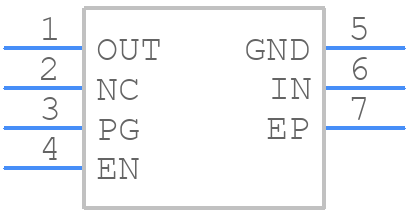

Part Symbol
-
Footprint
-

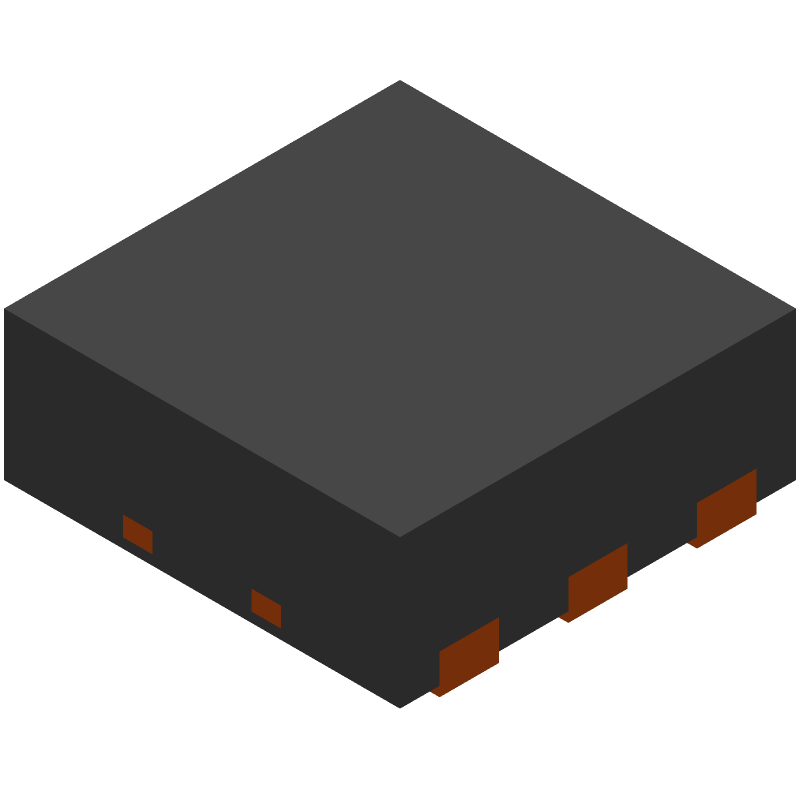

3D Model
