TPS7B8250QDGNRQ1 Information
TPS7B8250QDGNRQ1 by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TPS7B8250QDGNRQ1 | Texas Instruments | Automotive 300-mA high-voltage ultra-low-IQ low-dropout (LDO) linear regulator 8-MSOP-PowerPAD -40 to 150 |
Price & Stock for TPS7B8250QDGNRQ1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 2390 |
|
RFQ | ||
|
|
Ameya Holding Limited | 72539 |
|
RFQ | ||
|
|
Chip Stock | LDORegulatorPos5V0.3A8-PinMSOPPowerPADT/R | 28500 |
|
RFQ | |
|
|
LCSC | 60dB(100Hz) Positive Fixed 5V HVSSOP-8-EP-0.65mm Voltage Regulators - Linear Low Drop Out (LDO) Regulators RoHS | 8054 |
|
$0.2353 / $0.4891 | Buy Now |
|
|
Win Source Electronics | IC REG LIN 3.3V/5V 300MA 8MSOP | 25000 |
|
$0.3460 / $0.4469 | Buy Now |
US Tariff Estimator: TPS7B8250QDGNRQ1 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TPS7B8250QDGNRQ1
TPS7B8250QDGNRQ1 CAD Models
-

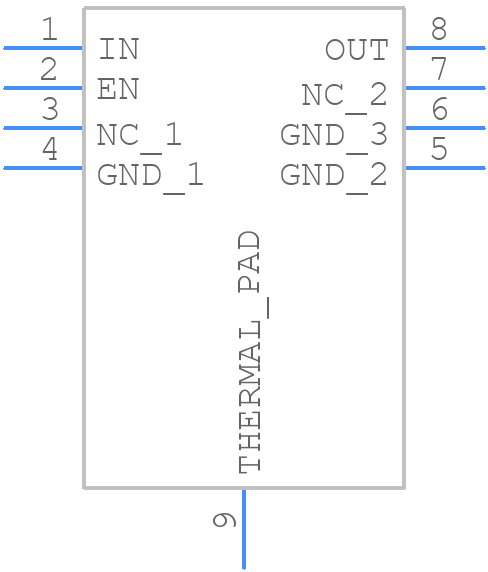

Part Symbol
-
