TRF37C73IDSGT Information
TRF37C73IDSGT by Texas Instruments is an RF/Microwave Amplifier.
RF/Microwave Amplifiers are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Price & Stock for TRF37C73IDSGT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Rochester Electronics | Wide Band Low Power Amplifier, 1MHz Min, 6000MHz Max, 1 Func RoHS: Compliant Status: Active Min Qty: 1 | 53350 |
|
$0.6262 / $1.0100 | Buy Now |
US Tariff Estimator: TRF37C73IDSGT by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TRF37C73IDSGT
TRF37C73IDSGT CAD Models
-

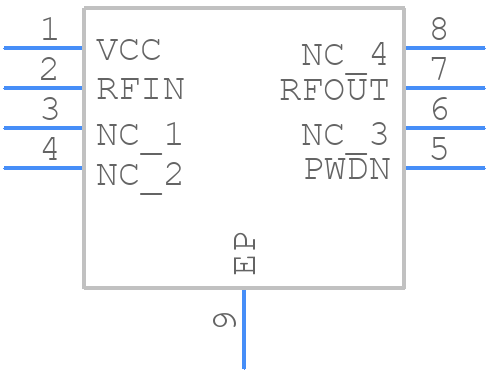

Part Symbol
-
Footprint
-

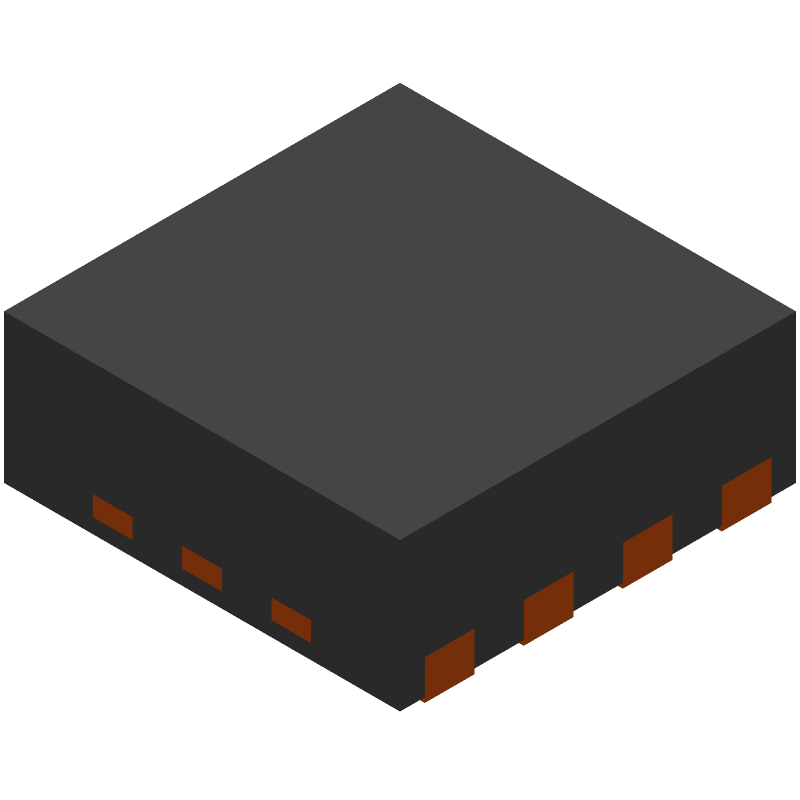

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TRF37C73IDSGT Part Data Attributes
|
|
TRF37C73IDSGT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TRF37C73IDSGT
Texas Instruments
1 to 6000 MHz 18dB RF Gain Block Amplifier with Powerdown Pin 8-WSON -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Characteristic Impedance | 50 Ω | |
| Construction | Component | |
| Gain | 18 Db | |
| Input Power-Max (CW) | 10 Dbm | |
| JESD-609 Code | e4 | |
| Mounting Feature | Surface Mount | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Frequency-Max | 6000 Mhz | |
| Operating Frequency-Min | 1 Mhz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Power Supplies | 3.3 V | |
| RF/Microwave Device Type | Wide Band Low Power | |
| Supply Current-Max | 65 Ma | |
| Surface Mount | Yes | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
