TRF37D73IDSGR Information
TRF37D73IDSGR by Texas Instruments is an RF/Microwave Amplifier.
RF/Microwave Amplifiers are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TRF37D73IDSGR | Texas Instruments | 1 to 6000 MHz 20dB RF Gain Block Amplifier with Powerdown Pin 8-WSON -40 to 85 |
Price & Stock for TRF37D73IDSGR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 9 |
|
RFQ | ||
|
|
Chip Stock | RFGainBlockAmplifierwithPowerdownPin1MHzto6000MHz20dB8WSONSurfaceMountT/R | 4230 |
|
RFQ | |
|
|
LCSC | 1MHz6GHz 19.5dB 3V3.45V 3.25dB 16.5dBm 53mA WSON-8-EP(2x2) RF Amplifiers RoHS | 96 |
|
$0.6933 / $0.7351 | Buy Now |
|
|
Win Source Electronics | IC RF AMP 1MHZ-6GHZ 8WSON / RF Amplifier IC 1MHz ~ 6GHz 8-WSON (2x2) | 1640 |
|
$0.8338 / $1.2507 | Buy Now |
US Tariff Estimator: TRF37D73IDSGR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TRF37D73IDSGR
TRF37D73IDSGR CAD Models
-

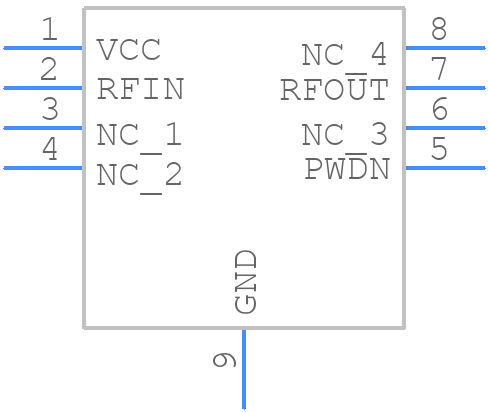

Part Symbol
-
Footprint
-

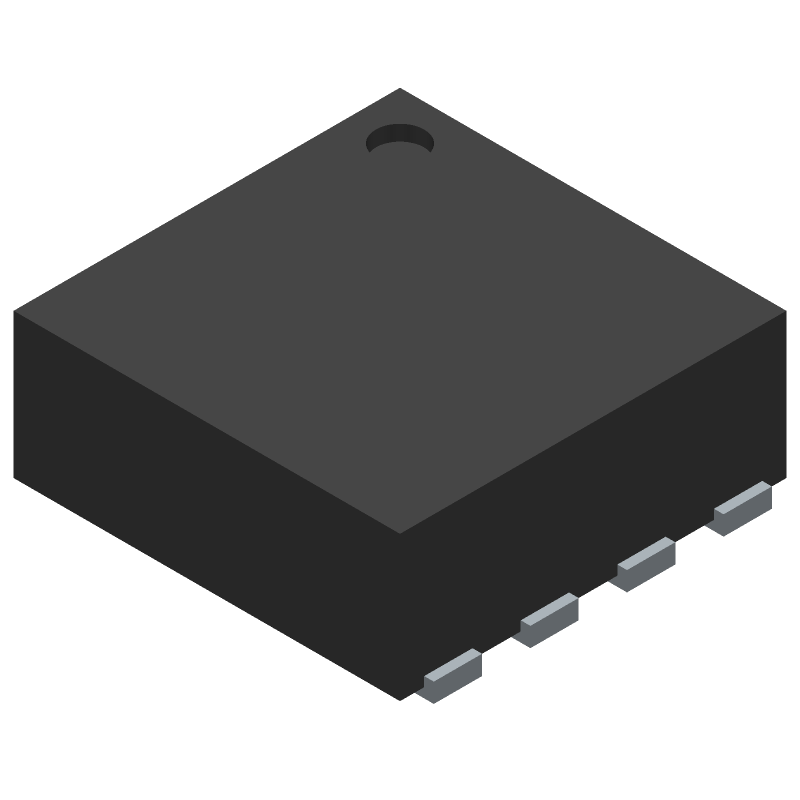

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TRF37D73IDSGR Part Data Attributes
|
|
TRF37D73IDSGR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TRF37D73IDSGR
Texas Instruments
1 to 6000 MHz 20dB RF Gain Block Amplifier with Powerdown Pin 8-WSON -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Characteristic Impedance | 50 Ω | |
| Construction | Component | |
| Gain | 20 Db | |
| Input Power-Max (CW) | 10 Dbm | |
| JESD-609 Code | e4 | |
| Mounting Feature | Surface Mount | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Frequency-Max | 6000 Mhz | |
| Operating Frequency-Min | 1 Mhz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Power Supplies | 3.3 V | |
| RF/Microwave Device Type | Wide Band Low Power | |
| Supply Current-Max | 65 Ma | |
| Surface Mount | Yes | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
