TRS3253EMRSMREP Information
TRS3253EMRSMREP by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TRS3253EMRSMREP | Texas Instruments | RS-232 Transceiver With Split Supply Pin for Logic Side 32-VQFN -55 to 125 |
Price & Stock for TRS3253EMRSMREP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
LCSC | VQFN-32-EP(4x4) Drivers Receivers Transceivers RoHS | 5 |
|
$13.3239 / $13.7642 | Buy Now |
US Tariff Estimator: TRS3253EMRSMREP by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TRS3253EMRSMREP
TRS3253EMRSMREP CAD Models
-

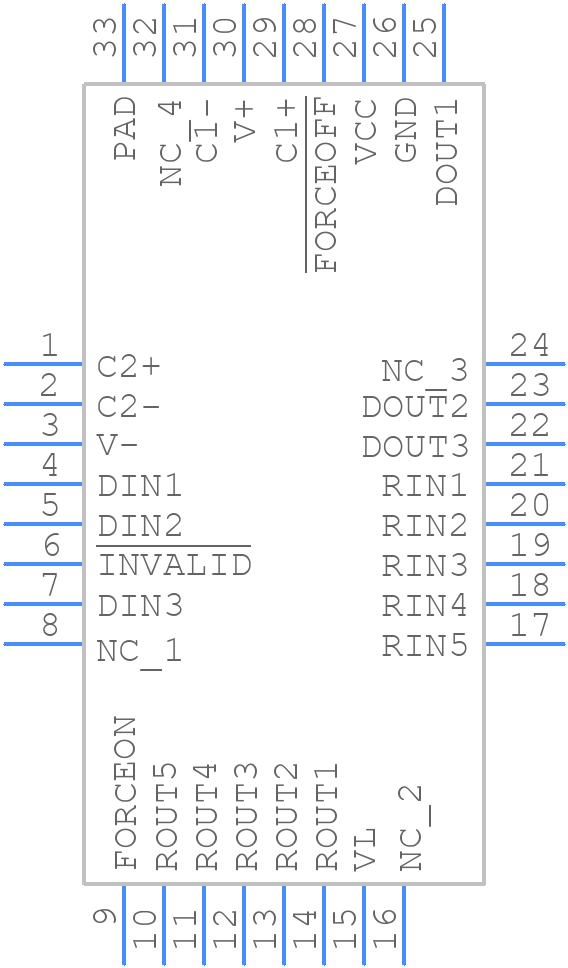

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TRS3253EMRSMREP Part Data Attributes
|
|
TRS3253EMRSMREP
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TRS3253EMRSMREP
Texas Instruments
Enhanced Product RS-232 line driver/receiver with logic supply pin & +/-15-kV IEC-ESD protection 32-VQFN -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Hvqccn, Lcc32,.16sq,16 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Differential Output | No | |
| Driver Number of Bits | 3 | |
| Input Characteristics | Schmitt Trigger | |
| Interface IC Type | Line Transceiver | |
| Interface Standard | Eia-232 | |
| JESD-30 Code | S-PQCC-N32 | |
| JESD-609 Code | e4 | |
| Length | 4 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 3 | |
| Number of Terminals | 32 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC32,.16SQ,16 | |
| Package Shape | Square | |
| Package Style | Chip Carrier, Heat Sink/Slug, Very Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Receiver Number of Bits | 5 | |
| Seated Height-Max | 1 Mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Supply Voltage1-Max | 3.6 V | |
| Supply Voltage1-Min | 3 V | |
| Supply Voltage1-Nom | 3.3 V | |
| Surface Mount | Yes | |
| Temperature Grade | Military | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.4 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4 Mm |
Alternate Parts for TRS3253EMRSMREP
This table gives cross-reference parts and alternative options found for TRS3253EMRSMREP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TRS3253EMRSMREP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TRS3253EIRSMR | Texas Instruments | $1.4348 | 3- to 5.5-V 1Mbps RS-232 line driver/receiver with logic supply pin & +/-15-kV IEC-ESD protection 32-VQFN -40 to 85 | TRS3253EMRSMREP vs TRS3253EIRSMR |
TRS3253EMRSMREP Frequently Asked Questions (FAQ)
-
Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible to minimize noise and EMI.
-
The TRS3253EMRSMREP requires a bias voltage of 2.5V to 5.5V, and the recommended bias current is 10mA to 50mA. Ensure the bias voltage is stable and noise-free for optimal performance.
-
The TRS3253EMRSMREP is rated for operation from -40°C to 125°C, but it's recommended to operate within -20°C to 85°C for optimal performance and reliability.
-
Texas Instruments recommends using ESD protection devices, such as TVS diodes or ESD arrays, to protect the TRS3253EMRSMREP from electrostatic discharge. Follow proper PCB layout and handling procedures to minimize ESD risks.
-
Power sequencing is critical for the TRS3253EMRSMREP. Ensure the power supplies are sequenced in the correct order: VCC, then VDD, and finally the input signals. This prevents latch-up and ensures proper operation.
