TS924IDT Information

TS924IDT by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.

Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.

Price & Stock for TS924IDT

Part # Distributor Description Stock Price Buy
DISTI # 69AH3085
Newark Opamp, 4Mhz, -40 To 125Deg C Rohs Compliant: Yes |Stmicroelectronics TS924IDT RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1768
  • 1 $2.4300
  • 10 $1.8600
  • 25 $1.7200
  • 50 $1.6500
  • 100 $1.5700
  • 250 $1.4900
  • 500 $1.3900
  • 1,000 $1.2900
$1.2900 / $2.4300 Buy Now
DISTI # 45Y8750
Newark Operational Amplifier, Quad, 4 Mhz, 4, 1.3 V/ S, 2.7V To 12V, Soic, 14 Rohs Compliant: Yes |Stmicroelectronics TS924IDT RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 1 Container: Reel 0
  • 2,500 $0.9410
  • 5,000 $0.9310
$0.9310 / $0.9410 Buy Now
DISTI # TS924IDT
Avnet Americas OP Amp Quad GP R-R I/O 12V 14-Pin SOIC T/R - Tape and Reel (Alt: TS924IDT) COO: Morocco RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 17 Weeks, 0 Days Container: Reel 0
  • 2,500 $0.7890
  • 5,000 $0.7840
  • 10,000 $0.7695
  • 15,000 $0.7555
  • 20,000 $0.7420
$0.7420 / $0.7890 Buy Now
STMicroelectronics Rail-to-rail high output current op-amps COO: Singapore RoHS: Compliant Min Qty: 1 3290
  • 1 $2.1500
  • 10 $1.5900
  • 25 $1.4500
  • 100 $1.3000
  • 250 $1.2300
  • 500 $1.1300
$1.1300 / $2.1500 Buy Now
Rochester Electronics TS924 - Amplifiers and Comparators-AMPLI RoHS: Compliant Status: Active Min Qty: 1 6879
  • 100 $1.0600
  • 500 $0.9540
  • 1,000 $0.8798
  • 10,000 $0.7844
  • 100,000 $0.6572
$0.6572 / $1.0600 Buy Now
DISTI # TS924IDT
TME IC: operational amplifier, 4MHz, Ch: 4, SO14, 2.7÷12VDC, reel,tape Min Qty: 1 2164
  • 1 $1.1900
  • 10 $0.7400
  • 25 $0.7300
$0.7300 / $1.1900 Buy Now
ComSIT USA AVAILABLE EU 122
RFQ
ComSIT USA AVAILABLE EU 338
RFQ
ComSIT USA Electronic Component RoHS: Compliant Stock DE - 0
Stock ES - 1304
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # TS924IDT
Avnet Silica OP Amp Quad GP RR IO 12V 14Pin SOIC TR (Alt: TS924IDT) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 17 Weeks, 0 Days Silica - 50000
Buy Now
Chip Stock TS924Series12V4MHzRailtoRailSMTOperationalAmplifier-SOIC-14 28860
RFQ
Component Electronics, Inc SMT TAPE 3
  • 1 $1.5400
  • 100 $1.1500
  • 1,000 $1.0000
$1.0000 / $1.5400 Buy Now
DISTI # TS924IDT
EBV Elektronik OP Amp Quad GP RR IO 12V 14Pin SOIC TR (Alt: TS924IDT) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 19 Weeks, 0 Days EBV - 0
Buy Now
Win Source Electronics IC OPAMP GP 4MHZ RRO 14SO 25360
  • 30 $2.2523
  • 65 $1.8480
  • 100 $1.7903
  • 135 $1.7325
  • 175 $1.6748
  • 235 $1.5015
$1.5015 / $2.2523 Buy Now

US Tariff Estimator: TS924IDT by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

TS924IDT
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for TS924IDT

TS924IDT CAD Models

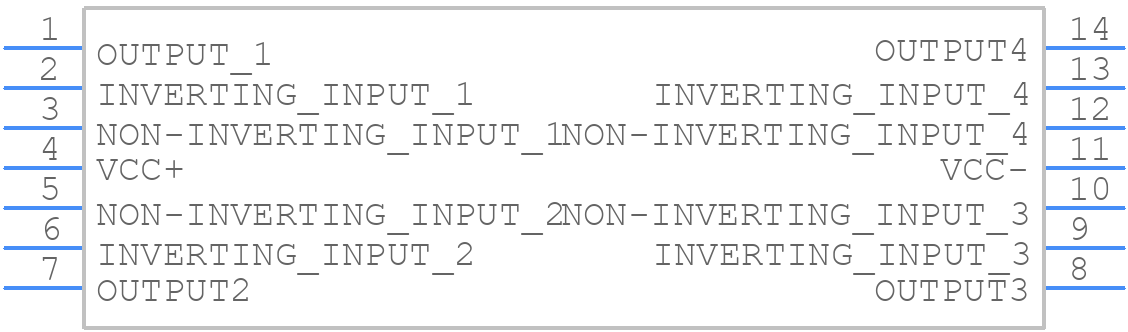

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TS924IDT Part Data Attributes

Parametric Data
TS924IDT STMicroelectronics
Buy Now Datasheet
Compare Parts:
TS924IDT STMicroelectronics Rail-to-rail high output current op-amps
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code SOIC
Package Description ROHS COMPLIANT, PLASTIC, MICRO, SOP-14
Pin Count 14
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.33.00.01
Factory Lead Time 10 Weeks
Samacsys Manufacturer STMicroelectronics
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.1 µA
Bias Current-Max (IIB) @25C 0.1 µA
Common-mode Reject Ratio-Min 60 dB
Common-mode Reject Ratio-Nom 80 dB
Frequency Compensation YES
Input Offset Voltage-Max 5000 µV
JESD-30 Code R-PDSO-G14
JESD-609 Code e4
Length 8.65 mm
Low-Bias NO
Low-Offset NO
Micropower NO
Moisture Sensitivity Level 1
Number of Functions 14
Number of Terminals 4
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method TR
Peak Reflow Temperature (Cel) 260
Power NO
Programmable Power NO
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Slew Rate-Min 0.7 V/us
Slew Rate-Nom 1.3 V/us
Supply Current-Max 7 mA
Supply Voltage Limit-Max 14 V
Supply Voltage-Nom (Vsup) 3 V
Surface Mount YES
Technology BICMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Unity Gain BW-Nom 4000
Voltage Gain-Min 15000
Wideband NO
Width 3.9 mm
