Part Details for TSV992AIDT by STMicroelectronics
Results Overview of TSV992AIDT by STMicroelectronics
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (2 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TSV992AIDT Information
TSV992AIDT by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TSV992AIDT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
08P4871
|
Newark | Op Amp, Rrio, 20Mhz, Vl Bias, 8Soic, No. Of Amplifiers:2 Amplifier, Bandwidth:20Mhz, Slew Rate:10V/Μs, Supply Voltage Range:2.5V To 5.5V, Amplifier Case Style:Soic, No. Of Pins:8Pins, Operating Temperature Min:-40°C, Operating Rohs Compliant: Yes |Stmicroelectronics TSV992AIDT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2355 |
|
$0.6330 / $1.2500 | Buy Now |
|
DISTI #
57P4055
|
Newark | Signal Conditioning And Supply M |Stmicroelectronics TSV992AIDT RoHS: Not Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
TSV992AIDT
|
Avnet Americas | Operational Amplifier, Dual, 2 Channels, 20 MHz, 10 V/?s, 2.5V to 5.5V, SOIC, 8 Pins - Tape and Reel (Alt: TSV992AIDT) COO: France RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$0.5426 / $0.6201 | Buy Now |
|
DISTI #
70521345
|
RS | TSV992AIDT, DUAL OP AMP, 20MHZ RAIL-RAIL, 2.5 - 5.5 V, 8-PIN SOIC Min Qty: 5 Package Multiple: 1 Container: Bulk | 0 |
|
$1.5300 / $1.8100 | RFQ |
|
|
STMicroelectronics | Wide bandwidth (20MHz) rail to rail input/output 5V CMOS Op-Amps, small offset, dual COO: France RoHS: Compliant Min Qty: 1 | 1088 |
|
$0.6400 / $1.2300 | Buy Now |
|
|
Rochester Electronics | TSV992A - Amplifiers and Comparators-AMPLI RoHS: Compliant Status: Active Min Qty: 1 | 4505 |
|
$0.5706 / $0.9203 | Buy Now |
|
DISTI #
TSV992AIDT
|
Avnet Silica | Operational Amplifier Dual 2 Channels 20 MHz 10 Vs 25V to 55V SOIC 8 Pins (Alt: TSV992AIDT) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 17 Weeks, 0 Days | Silica - 2500 |
|
Buy Now | |
|
DISTI #
TSV992AIDT
|
EBV Elektronik | Operational Amplifier Dual 2 Channels 20 MHz 10 Vs 25V to 55V SOIC 8 Pins (Alt: TSV992AIDT) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 18 Weeks, 0 Days | EBV - 2500 |
|
Buy Now | |
|
|
LCSC | 1.5mV 1pA 10V/us 75dB 2.5V5.5V 20MHz 2 Rail-to-Rail Input Rail-to-Rail Output SOP-8 Amplifiers RoHS | 2132 |
|
$0.6582 / $1.1788 | Buy Now |
US Tariff Estimator: TSV992AIDT by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TSV992AIDT
TSV992AIDT CAD Models
-

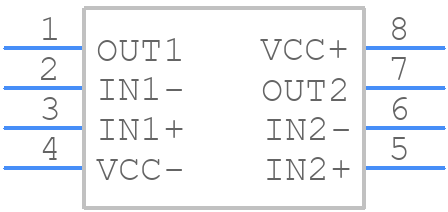

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TSV992AIDT Part Data Attributes
|
|
TSV992AIDT
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
TSV992AIDT
STMicroelectronics
Wide bandwidth (20MHz) rail to rail input/output 5V CMOS Op-Amps, small offset, dual
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SOIC | |
| Package Description | SOP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.0001 µA | |
| Bias Current-Max (IIB) @25C | 0.00001 µA | |
| Common-mode Reject Ratio-Min | 60 dB | |
| Common-mode Reject Ratio-Nom | 78 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 3000 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 8 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Nom | 10 V/us | |
| Supply Current-Max | 2.2 mA | |
| Supply Voltage Limit-Max | 6 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Unity Gain BW-Nom | 20000 | |
| Voltage Gain-Min | 5600 | |
| Wideband | NO | |
| Width | 3.9 mm |
Alternate Parts for TSV992AIDT
This table gives cross-reference parts and alternative options found for TSV992AIDT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TSV992AIDT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TSV992AIYDT | STMicroelectronics | $0.9352 | Wide bandwidth (20MHz) rail to rail input/output 5V CMOS Op-Amps, small offset, dual | TSV992AIDT vs TSV992AIYDT |
| TSV992AID | STMicroelectronics | Check for Price | Rail to rail input/output high merit factor op-amps | TSV992AIDT vs TSV992AID |
TSV992AIDT Frequently Asked Questions (FAQ)
-
A good PCB layout for the TSV992AIDT involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To ensure stability, make sure to follow the recommended operating conditions, decouple the power supply with a 10uF capacitor, and use a 1uF capacitor in parallel with a 10Ω resistor between the output and ground. Additionally, ensure that the input and output impedance are matched.
-
The maximum power dissipation of the TSV992AIDT is 250mW. However, this value can be affected by the operating conditions, such as temperature and supply voltage. It's recommended to calculate the power dissipation based on the specific application and ensure that it does not exceed the maximum rating.
-
The TSV992AIDT is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the power dissipation and ensure proper heat sinking to maintain a safe operating temperature.
-
To troubleshoot issues with the TSV992AIDT, start by verifying the power supply voltage and ensuring that it's within the recommended range. Check the input and output signals for distortion or clipping, and verify that the device is properly decoupled. Use an oscilloscope to analyze the signals and identify any anomalies.
