TSV992AIST by: STMicroelectronics

Wide bandwidth (20MHz) rail to rail input/output 5V CMOS Op-Amps, small offset, dual

Part Details for TSV992AIST by STMicroelectronics

Results Overview of TSV992AIST by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TSV992AIST Information

TSV992AIST by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.

Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.

Price & Stock for TSV992AIST

Part # Distributor Description Stock Price Buy
DISTI # 57P4056
Newark Signal Conditioning And Supply M |Stmicroelectronics TSV992AIST RoHS: Not Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel 0
Buy Now
DISTI # TSV992AIST
Avnet Americas OP Amp Dual GP R-R I/O 5.5V 8-Pin MSOP T/R - Tape and Reel (Alt: TSV992AIST) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 18 Weeks, 0 Days Container: Reel 0
  • 4,000 $0.6746
  • 8,000 $0.6381
  • 16,000 $0.6255
  • 24,000 $0.6223
  • 32,000 $0.6191
$0.6191 / $0.6746 Buy Now
STMicroelectronics Wide bandwidth (20MHz) rail to rail input/output 5V CMOS Op-Amps, small offset, dual COO: France RoHS: Compliant Min Qty: 1 8911
  • 1 $1.3200
  • 10 $0.9600
  • 25 $0.8700
  • 100 $0.7700
  • 250 $0.7300
  • 500 $0.7000
$0.7000 / $1.3200 Buy Now
Rochester Electronics TSV992 - Amplifiers and Comparators-AMPLI RoHS: Compliant Status: Active Min Qty: 1 19499
  • 100 $1.0000
  • 500 $0.9000
  • 1,000 $0.8300
  • 10,000 $0.7400
  • 100,000 $0.6200
$0.6200 / $1.0000 Buy Now
DISTI # TSV992AIST
TME IC: operational amplifier, 20MHz, Ch: 2, MSOP8, 2.5÷5.5VDC Min Qty: 1 0
  • 1 $1.4900
  • 5 $1.2500
  • 10 $1.1300
  • 25 $0.9900
  • 100 $0.9400
$0.9400 / $1.4900 RFQ
DISTI # TSV992AIST
IBS Electronics OP AMP DUAL LOW VOLTAGE AMPLIFIER R-R I/O 5.5V 8-PIN MSOP T/R Min Qty: 4000 Package Multiple: 1 0
  • 4,000 $0.7630
  • 8,000 $0.7560
  • 12,000 $0.7490
$0.7490 / $0.7630 Buy Now
DISTI # TSV992AIST
Avnet Silica OP Amp Dual GP RR IO 55V 8Pin MSOP TR (Alt: TSV992AIST) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 17 Weeks, 0 Days Silica - 20000
Buy Now
Chip Stock Widebandwidth(20MHz)railtorailinput/output5VCMOSOp-Amps,smalloffset,dual 14500
RFQ
DISTI # TSV992AIST
EBV Elektronik OP Amp Dual GP RR IO 55V 8Pin MSOP TR (Alt: TSV992AIST) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 20 Weeks, 0 Days EBV - 0
Buy Now
LCSC 1.5mV 1pA 10V/us 75dB 2.5V5.5V 20MHz 2 Rail-to-Rail Input Rail-to-Rail Output MSOP-8 Amplifiers RoHS 10
  • 1 $1.1579
  • 10 $1.1316
  • 30 $1.1146
  • 100 $1.0960
$1.0960 / $1.1579 Buy Now

US Tariff Estimator: TSV992AIST by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

TSV992AIST
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for TSV992AIST

TSV992AIST CAD Models

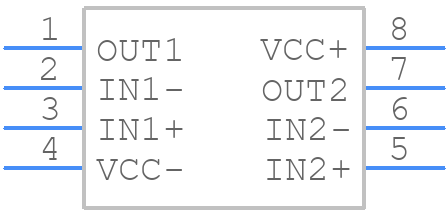

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TSV992AIST Part Data Attributes

Parametric Data
TSV992AIST STMicroelectronics
Buy Now Datasheet
Compare Parts:
TSV992AIST STMicroelectronics Wide bandwidth (20MHz) rail to rail input/output 5V CMOS Op-Amps, small offset, dual
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code SOIC
Package Description Minisop-8
Pin Count 8
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.33.00.01
Factory Lead Time 12 Weeks
Amplifier Type Operational Amplifier
Architecture Voltage-Feedback
Average Bias Current-Max (IIB) 0.0001 µA
Bias Current-Max (IIB) @25C 0.00001 µA
Common-mode Reject Ratio-Min 60 Db
Common-mode Reject Ratio-Nom 78 Db
Frequency Compensation Yes
Input Offset Voltage-Max 3000 µV
JESD-30 Code S-PDSO-G8
JESD-609 Code e3
Length 3 Mm
Low-Bias Yes
Low-Offset No
Micropower No
Moisture Sensitivity Level 1
Number of Functions 8
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material Plastic/Epoxy
Package Code TSSOP
Package Equivalence Code TSSOP8,.19
Package Shape Square
Package Style Small Outline, Thin Profile, Shrink Pitch
Packing Method Tr
Peak Reflow Temperature (Cel) 260
Power No
Programmable Power No
Qualification Status Not Qualified
Seated Height-Max 1.1 Mm
Slew Rate-Nom 10 V/Us
Supply Current-Max 2.2 Ma
Supply Voltage Limit-Max 6 V
Supply Voltage-Nom (Vsup) 3.3 V
Surface Mount Yes
Technology Bicmos
Temperature Grade Automotive
Terminal Finish Matte Tin (Sn) - Annealed
Terminal Form Gull Wing
Terminal Pitch 0.65 Mm
Terminal Position Dual
Time@Peak Reflow Temperature-Max (s) 30
Unity Gain BW-Nom 20000
Voltage Gain-Min 5600
Wideband No
Width 3 Mm
