TSX712IYST Information
TSX712IYST by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TSX712IYST
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
20AM2791
|
Newark | Op-Amp, 2.7Mhz, 125Deg C, Minisoic-8 Rohs Compliant: Yes |Stmicroelectronics TSX712IYST RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$1.8200 / $2.1000 | Buy Now |
|
DISTI #
82Y7337
|
Newark | Op-Amp, Aec-Q100, 2.7Mhz, Mini Soic-8, No. Of Amplifiers:2 Amplifier, Bandwidth:2.7Mhz, Slew Rate:1.4V/ S, Supply Voltage Range:2.7V To 16V, Amplifier Case Style:Mini Soic, No. Of Pins:8Pins, Operating Temperature Min:-40 C Rohs Compliant: Yes |Stmicroelectronics TSX712IYST RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$2.2800 / $3.0500 | Buy Now |
|
DISTI #
TSX712IYST
|
Avnet Americas | OP Amp Single Low Power Amplifier Rail to Rail I/O 16V 8-Pin Mini-SO T/R - Tape and Reel (Alt: TSX712IYST) COO: Italy RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 24 Weeks, 0 Days Container: Reel | 0 |
|
$1.2524 / $1.4313 | Buy Now |
|
|
STMicroelectronics | Precision (200uV), rail-to-rail 16V CMOS Op-Amps, dual, GBP 2.7MHz COO: Italy RoHS: Compliant Min Qty: 1 | 528 |
|
$1.6500 / $3.7800 | Buy Now |
|
DISTI #
TSX712IYST
|
TME | IC: operational amplifier, 2.7MHz, Ch: 2, miniSO8, 2.7÷16VDC Min Qty: 1 | 0 |
|
$2.0400 / $2.9400 | RFQ |
|
DISTI #
TSX712IYST
|
Avnet Silica | OP Amp Single Low Power Amplifier Rail to Rail IO 16V 8Pin MiniSO TR (Alt: TSX712IYST) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 17 Weeks, 0 Days | Silica - 8000 |
|
Buy Now | |
|
DISTI #
TSX712IYST
|
EBV Elektronik | OP Amp Single Low Power Amplifier Rail to Rail IO 16V 8Pin MiniSO TR (Alt: TSX712IYST) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 26 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
US Tariff Estimator: TSX712IYST by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TSX712IYST
TSX712IYST CAD Models
-

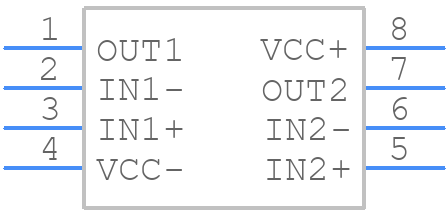

Part Symbol
-
