UA78L12ACPK Information
UA78L12ACPK by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for UA78L12ACPK
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29AH8352
|
Newark | Linear Volt Reg, 12V, 0.1A, Sot-89-3 Rohs Compliant: Yes |Texas Instruments UA78L12ACPK RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 84 |
|
$0.2790 / $0.3610 | Buy Now |
|
|
Bristol Electronics | Min Qty: 8 | 7636 |
|
$0.0905 / $0.6705 | Buy Now |
|
|
Bristol Electronics | Min Qty: 9 | 58 |
|
$0.3000 / $0.6000 | Buy Now |
|
|
Rochester Electronics | Fixed Positive Standard Regulator, 12V, BIPolar, PSSO3 RoHS: Compliant Status: Active Min Qty: 1 | 121701 |
|
$0.1126 / $0.1816 | Buy Now |
|
DISTI #
UA78L12ACPK
|
TME | IC: voltage regulator, linear,fixed, 12V, 0.1A, SOT89, SMD, 0÷125°C Min Qty: 1 | 1265 |
|
$0.1300 / $0.2580 | Buy Now |
|
|
Ameya Holding Limited | IC: voltage regulator, fixed, 12V, 0.1A, SOT89, SMD, reel,tape | 2000 |
|
RFQ | |
|
|
ComSIT USA | POSITIVE-VOLTAGE REGULATOR Fixed Positive Standard Regulator, 12VBIPolar, PSSO3 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
|
LCSC | 37dB(120Hz) Positive Fixed 12V SOT-89-3 Voltage Regulators - Linear Low Drop Out (LDO) Regulators RoHS | 825 |
|
$0.1413 / $0.3103 | Buy Now |
|
|
Win Source Electronics | IC REG LDO 12V 0.1A SOT89-3 | 57500 |
|
$0.1457 / $0.1881 | Buy Now |
US Tariff Estimator: UA78L12ACPK by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for UA78L12ACPK
UA78L12ACPK CAD Models
-

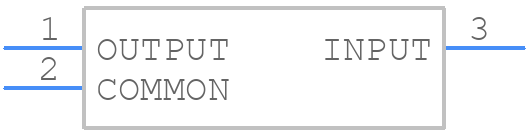

Part Symbol
-
Footprint
-

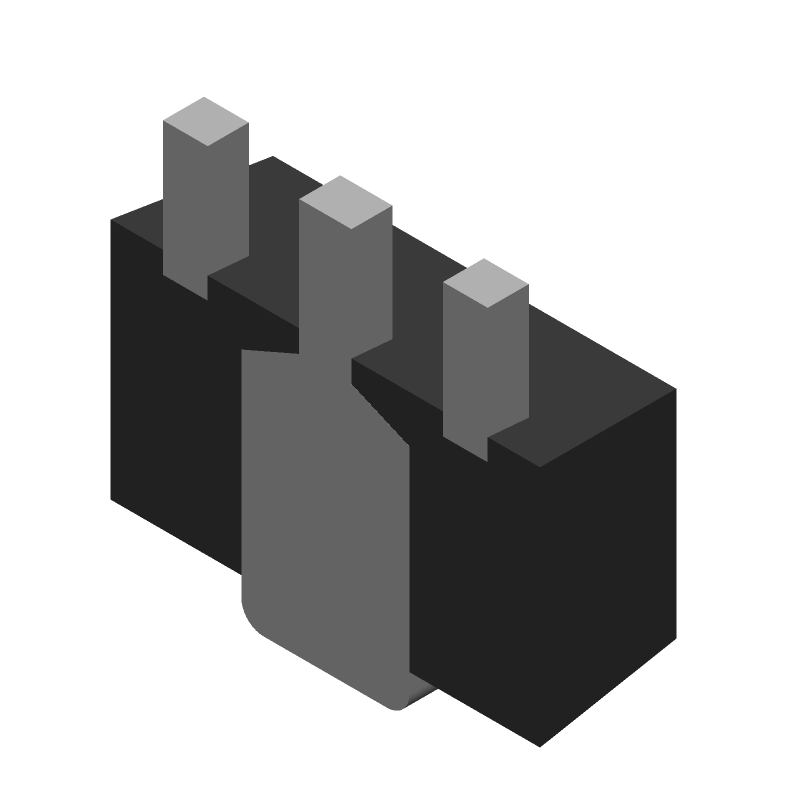

3D Model
