UCC28C40DGKR Information
UCC28C40DGKR by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for UCC28C40DGKR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Ameya Holding Limited | IC PWM CTRLR CURR MODE 8VSSOP | 17950 |
|
RFQ | |
|
|
Chip Stock | CurrentModePWMController18V200mA1000kHz8-PinVSSOPT/R | 35676 |
|
RFQ | |
|
|
LCSC | 1MHz 1 Adjustable VSSOP-8 DC DC Switching Controllers RoHS | 34 |
|
$0.4025 / $0.6532 | Buy Now |
|
|
Win Source Electronics | IC REG CTRLR MULT TOP 8VSSOP | 21400 |
|
$0.3583 / $0.4627 | Buy Now |
US Tariff Estimator: UCC28C40DGKR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for UCC28C40DGKR
UCC28C40DGKR CAD Models
-

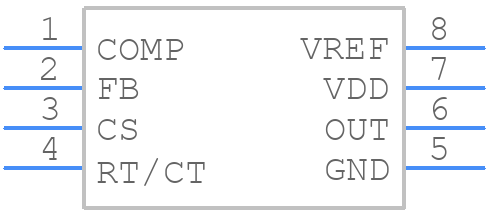

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
UCC28C40DGKR Part Data Attributes
|
|
UCC28C40DGKR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
UCC28C40DGKR
Texas Instruments
Industrial, 20-V, low-power current-mode PWM controller, 7-V/6.6-V UVLO, 100% duty cycle 8-VSSOP -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | MSOP | |
| Package Description | Tssop, Tssop8,.19 | |
| Pin Count | 8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Additional Feature | Also Operates In Current Mode | |
| Analog IC - Other Type | Switching Controller | |
| Control Mode | Current-Mode | |
| Control Technique | Pulse Width Modulation | |
| Input Voltage-Max | 18 V | |
| Input Voltage-Min | 12 V | |
| Input Voltage-Nom | 15 V | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 3 Mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 1 A | |
| Output Voltage-Max | 18 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape | Square | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 Mm | |
| Supply Current-Max (Isup) | 3 Ma | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | ||
| Surface Mount | Yes | |
| Switcher Configuration | Single | |
| Switching Frequency-Max | 1000 Khz | |
| Technology | Bicmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 Mm |
Alternate Parts for UCC28C40DGKR
This table gives cross-reference parts and alternative options found for UCC28C40DGKR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of UCC28C40DGKR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| UCC38C40DGKG4 | Texas Instruments | Check for Price | 1A SWITCHING CONTROLLER, 1000kHz SWITCHING FREQ-MAX, PDSO8, GREEN, PLASTIC, MSOP-8 | UCC28C40DGKR vs UCC38C40DGKG4 |
| UCC38C40DGKRG4 | Texas Instruments | Check for Price | BiCMOS Low-Power Current Mode PWM Controller 8-VSSOP 0 to 70 | UCC28C40DGKR vs UCC38C40DGKRG4 |
| UCC28C40DGKRG4 | Texas Instruments | Check for Price | BiCMOS Low-Power Current Mode PWM Controller 8-VSSOP -40 to 85 | UCC28C40DGKR vs UCC28C40DGKRG4 |
UCC28C40DGKR Frequently Asked Questions (FAQ)
-
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and keep the thermal pad clear of any components or traces.
-
To ensure reliable start-up, ensure that the input voltage rises monotonically and does not droop during start-up. A soft-start circuit can be used to limit the inrush current and prevent voltage droop. Additionally, ensure that the output voltage is properly decoupled with a capacitor to prevent oscillations.
-
The recommended input capacitor value is 10uF to 22uF, with a voltage rating of 50V or higher. A low-ESR ceramic capacitor such as X5R or X7R is recommended. Avoid using electrolytic capacitors as they may not provide sufficient ripple current capability.
-
The compensation network can be optimized by using the TI's Power Stage Designer tool or by following the guidelines in the datasheet. A Type II compensation network is recommended, with a zero at 1/3 to 1/2 of the switching frequency and a pole at 1/2 to 2/3 of the switching frequency.
-
The maximum allowed output voltage ripple is 1% of the nominal output voltage. Exceeding this limit may affect the stability and reliability of the converter. A good design practice is to aim for an output voltage ripple of 0.5% or less.
