Part Details for UMX1NTN by ROHM Semiconductor
Results Overview of UMX1NTN by ROHM Semiconductor
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (3 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
UMX1NTN Information
UMX1NTN by ROHM Semiconductor is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for UMX1NTN
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
40P3417
|
Newark | Transistor Dual Um6 Npn/Npn, Transistor Polarity:Dual Npn, Collector Emitter Voltage Max Npn:50V, Collector Emitter Voltage Max Pnp:-, Continuous Collector Current Npn:150Ma, Continuous Collector Current Pnp:-, No. Of Pins:6Pins Rohs Compliant: Yes |Rohm UMX1NTN RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Bulk | 30 |
|
$0.1100 / $0.4300 | Buy Now |
|
DISTI #
70600349
|
RS | ROHM UMX1NTN DUAL NPN BIPOLAR TRANSISTOR, 0.15 A, 50 V, 6-PIN SC-88 Min Qty: 75 Package Multiple: 1 Container: Bulk | 0 |
|
$0.1130 | RFQ |
|
|
Bristol Electronics | 16972 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 14 | 30 |
|
$0.3750 | Buy Now |
|
DISTI #
UMX1NTN
|
TME | Transistor: NPN x2, bipolar, complementary pair, 50V, 0.15A, 150mW Min Qty: 1 | 916 |
|
$0.0553 / $0.4100 | Buy Now |
|
|
ComSIT USA | Small Signal Bipolar Transistor, 0.15A I(C), 50V V(BR)CEO, 2-Element, NPN, Silicon ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
UMX1NTN
|
IBS Electronics | ROHM UMX1NTN DUAL NPN BIPOLAR TRANSISTOR 0.15 A 50 V 6-PIN SC-88 | ROHM SEMICONDUCTOR UMX1NTN Min Qty: 3000 Package Multiple: 1 | 0 |
|
$0.0515 / $0.0553 | Buy Now |
|
|
NexGen Digital | 192000 |
|
RFQ | ||
|
DISTI #
TDSTD7078
|
Rutronik | NPN/NPN DUAL-TRANS.50V SOT363 RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Container: Reel |
Stock DE - 9000 Stock HK - 0 Stock US - 0 Stock SG - 0 |
|
$0.0474 / $0.0563 | Buy Now |
|
DISTI #
UMX1NTN
|
Avnet Asia | (Alt: UMX1NTN) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 24 Weeks, 0 Days | 3000 |
|
$0.0624 / $0.0881 | Buy Now |
Part Details for UMX1NTN

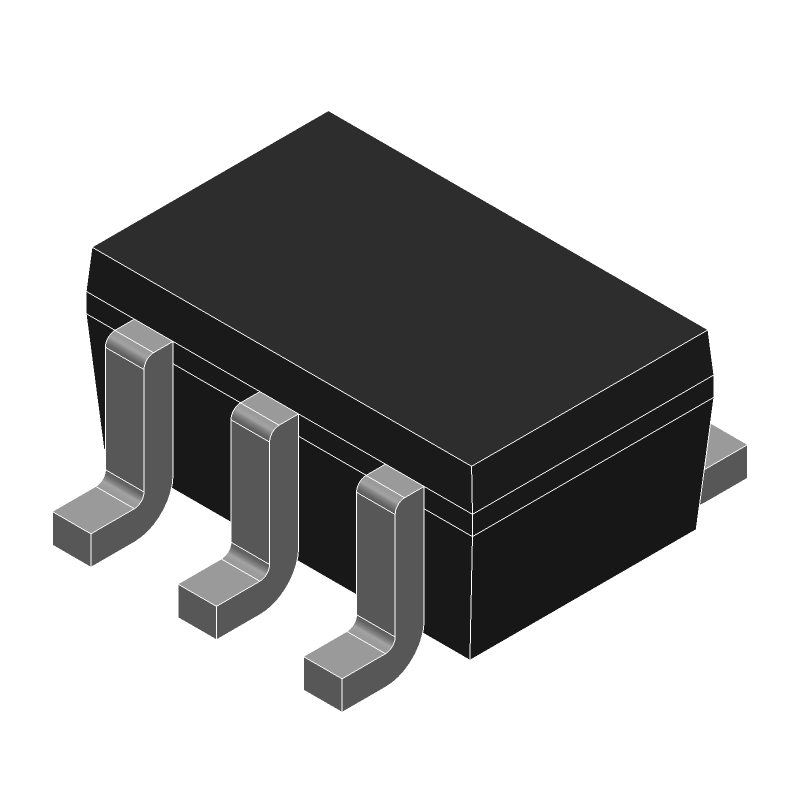

UMX1NTN CAD Models
UMX1NTN Part Data Attributes
|
|
UMX1NTN
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
UMX1NTN
ROHM Semiconductor
Small Signal Bipolar Transistor, 0.15A I(C), 50V V(BR)CEO, 2-Element, NPN, Silicon, UMT6, SC-88, 6 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SC-88 | |
| Package Description | Umt6, Sc-88, 6 Pin | |
| Pin Count | 6 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 18 Weeks | |
| Collector Current-Max (IC) | 0.15 A | |
| Collector-Emitter Voltage-Max | 50 V | |
| Configuration | Separate, 2 Elements | |
| DC Current Gain-Min (hFE) | 120 | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e2 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | Npn | |
| Power Dissipation-Max (Abs) | 0.15 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | Yes | |
| Terminal Finish | Tin/Copper (Sn/Cu) | |
| Terminal Form | Gull Wing | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Transistor Application | Amplifier | |
| Transistor Element Material | Silicon | |
| Transition Frequency-Nom (fT) | 180 Mhz | |
| VCEsat-Max | 0.4 V |
