US1GWF-7 Information
US1GWF-7 by Diodes Incorporated is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for US1GWF-7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
88AH7340
|
Newark | Rectifier, 400V, 1A, Sod-123F Rohs Compliant: Yes |Diodes Inc. US1GWF-7 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1890 |
|
$0.1370 / $0.3900 | Buy Now |
|
DISTI #
US1GWF-7
|
Avnet Americas | - Tape and Reel (Alt: US1GWF-7) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Container: Reel | 189000 |
|
$0.0792 / $0.0858 | Buy Now |
|
DISTI #
US1GWF-7
|
TME | Diode: rectifying, SMD, 400V, 1A, 35ns, SOD123F, Ufmax: 1.25V Min Qty: 1 | 0 |
|
$0.1260 / $0.3700 | RFQ |
|
DISTI #
US1GWF-7
|
IBS Electronics | RECTIFIER DIODE 1 PHASE 1 ELEMENT 1A 400V V(RRM) SILICON Min Qty: 3000 Package Multiple: 1 | 6000 |
|
$0.1166 / $0.1238 | Buy Now |
|
DISTI #
US1GWF-7
|
Avnet Asia | (Alt: US1GWF-7) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days | 0 |
|
$0.1080 / $0.1174 | Buy Now |
|
DISTI #
US1GWF-7
|
Avnet Silica | (Alt: US1GWF-7) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 3000 | 6000 |
|
$0.1286 / $0.1393 | Buy Now |
US Tariff Estimator: US1GWF-7 by Diodes Incorporated
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for US1GWF-7
US1GWF-7 CAD Models
-
Part Symbol
-
Footprint
-

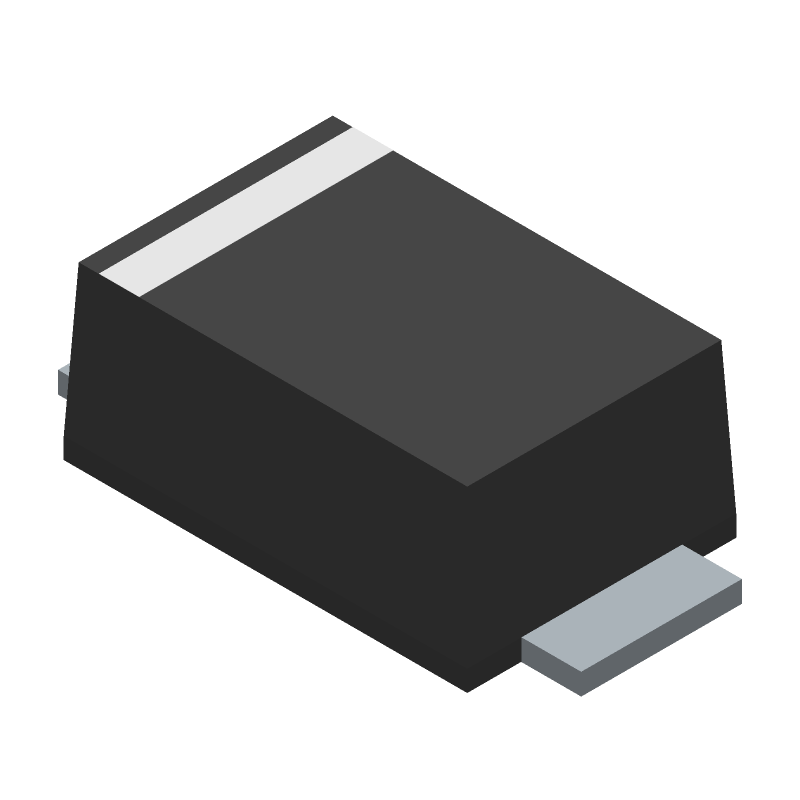

3D Model
