Part Details for USB2533-1080AEN by Microchip Technology Inc
Results Overview of USB2533-1080AEN by Microchip Technology Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (4 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Computing and Data Storage
USB2533-1080AEN Information
USB2533-1080AEN by Microchip Technology Inc is a Bus Controller.
Bus Controllers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for USB2533-1080AEN
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
89W9491
|
Newark | 3-Port Usb2.0 Hub Controller 36 Sqfn 6X6X1.0Mm Tray Rohs Compliant: Yes |Microchip USB2533-1080AEN RoHS: Compliant Min Qty: 490 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$3.6800 | Buy Now |
|
DISTI #
USB2533-1080AEN
|
Avnet Americas | - Trays (Alt: USB2533-1080AEN) COO: China RoHS: Compliant Min Qty: 490 Package Multiple: 490 Lead time: 7 Weeks, 0 Days Container: Tray | 0 |
|
$3.7875 / $4.3286 | Buy Now |
|
DISTI #
USB2533-1080AEN
|
Microchip Technology Inc | USB 2.0 HI-SPEED THREE PORT HUB CONTROLLER, SQFN, Projected EOL: 2039-05-13 COO: Taiwan ECCN: EAR99 RoHS: Compliant Lead time: 11 Weeks, 0 Days Container: Tray | In Stock: 4014 and Alternates Available |
|
$3.4200 / $4.7300 | Buy Now |
|
DISTI #
70470319
|
RS | MICROCHIP USB2533-1080AEN, USB CONTROLLER, USB 2.0, 3.3 V, 36-PIN SQFN Min Qty: 490 Package Multiple: 1 Lead time: 6 Weeks, 0 Days Container: Bulk | 0 |
|
$4.7900 | RFQ |
|
|
Bristol Electronics | 3402 |
|
RFQ | ||
|
DISTI #
USB2533-1080AEN
|
IBS Electronics | LOW SPEED/FULL SPEED/HIGH SPEED 3-PORT HUB CONTROLLER USB 2.0 3.3V TRAY 36-PIN SQFN EP Min Qty: 5 Package Multiple: 1 | 106 |
|
$4.7740 / $10.4300 | Buy Now |
|
|
NAC | 3-port USB2.0 Hub Controller. Package: 36 SQFN 6x6x1.0mm TRAY - Non-Auto USB Product Line RoHS: Compliant Min Qty: 490 Package Multiple: 490 Container: Tray | 0 |
|
$3.7000 / $4.4600 | Buy Now |
|
|
Chip Stock | LowSpeed/FullSpeed/HighSpeed3-PortHubControllerUSB2.03.3VTray36-PinSQFNEP | 16124 |
|
RFQ | |
|
DISTI #
USB2533-1080AEN
|
EBV Elektronik | (Alt: USB2533-1080AEN) RoHS: Compliant Min Qty: 490 Package Multiple: 490 Lead time: 8 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
LCSC | Hub USB 2.0 QFN-36-EP(6x6) Interface Controllers RoHS | 87 |
|
$4.8917 / $5.6645 | Buy Now |
US Tariff Estimator: USB2533-1080AEN by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for USB2533-1080AEN
USB2533-1080AEN CAD Models
-

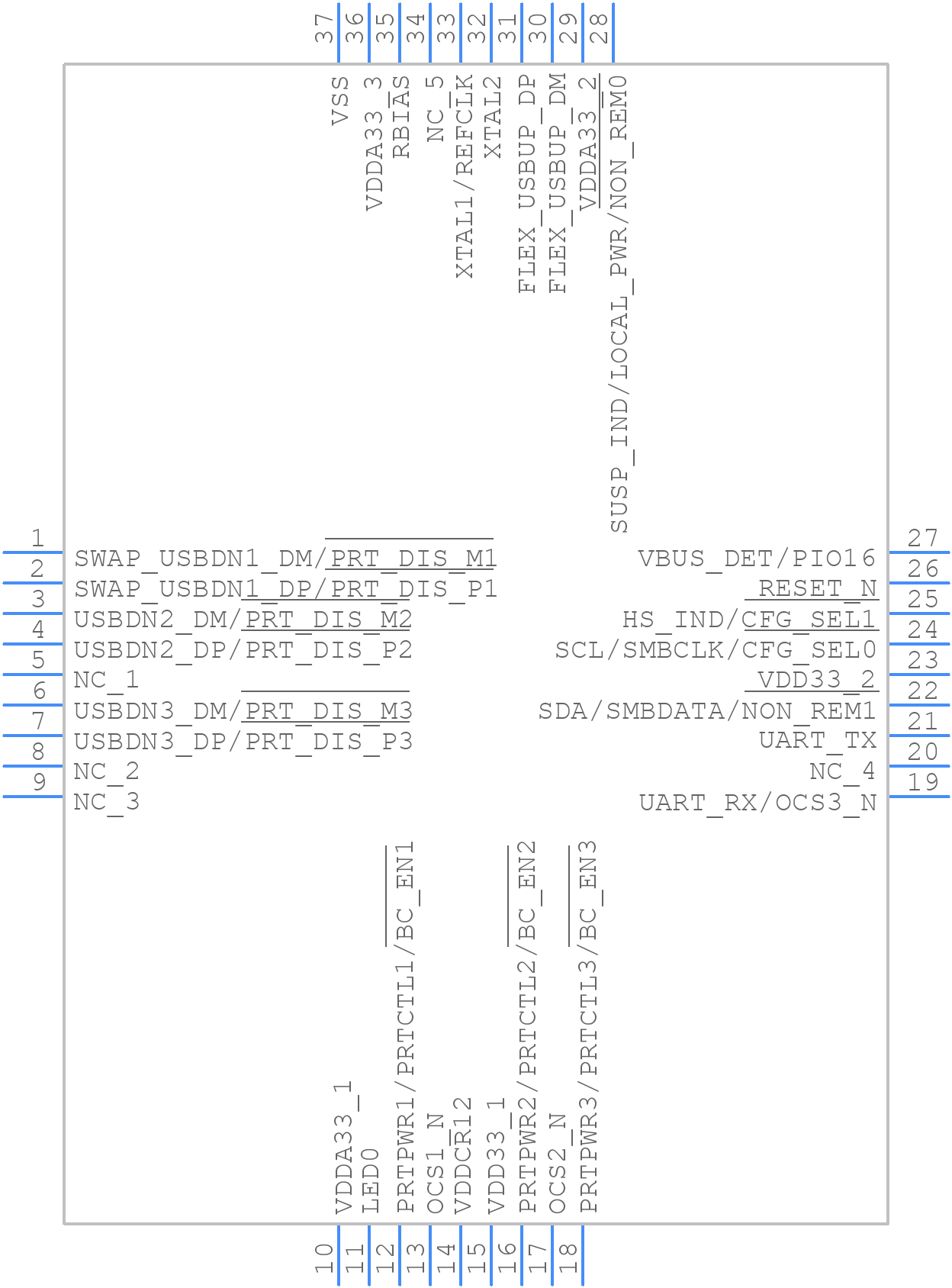

Part Symbol
-
