USB7002/KDX Information
USB7002/KDX by Microchip Technology Inc is a Bus Controller.
Bus Controllers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for USB7002/KDX
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
75AC3071
|
Newark | 4-Port Super Speed/Hi-Speed Smarthub With 2 Downstream Type C Ports And Type C Up With Cc Pin Support 100 Vqfn 12X12X0.9Mm Tray Rohs Compliant: Yes |Microchip USB7002/KDX RoHS: Compliant Min Qty: 168 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$5.5000 | Buy Now |
|
DISTI #
USB7002/KDX
|
Avnet Americas | - Trays (Alt: USB7002/KDX) COO: China RoHS: Compliant Min Qty: 168 Package Multiple: 168 Lead time: 7 Weeks, 0 Days Container: Tray | 0 |
|
$5.8375 / $6.6714 | Buy Now |
|
DISTI #
USB7002/KDX
|
Microchip Technology Inc | USB3.1 GEN1 HUB WITHOUT PD, 2 CC, VQFN, Projected EOL: 2045-09-10 COO: Taiwan ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Tray | In Stock: 97 and Alternates Available |
|
$4.8200 / $7.2600 | Buy Now |
|
|
NAC | 4-Port Super Speed/Hi-Speed SmartHub with 2 Downstream Type C Ports and Type C Up with CC Pin Support. Package: 100 VQFN 12X12X0.9mm TRAY - Non-Auto USB Product Line RoHS: Compliant Min Qty: 168 Package Multiple: 168 Container: Tray | 0 |
|
$5.7000 / $6.8700 | Buy Now |
|
DISTI #
USB7002/KDX
|
Avnet Silica | (Alt: USB7002/KDX) RoHS: Compliant Min Qty: 168 Package Multiple: 168 Lead time: 9 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Chip Stock | ICUSBHUBCNTRLR100VQFNUSBHubControllerUSB3.1USBInterface100-VQFN(12x12) | 3670 |
|
RFQ | |
|
|
LCSC | Hub VQFN-100-EP(12x12) Interface Controllers RoHS | 5 |
|
$9.7555 / $12.1795 | Buy Now |
US Tariff Estimator: USB7002/KDX by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for USB7002/KDX
USB7002/KDX CAD Models
-

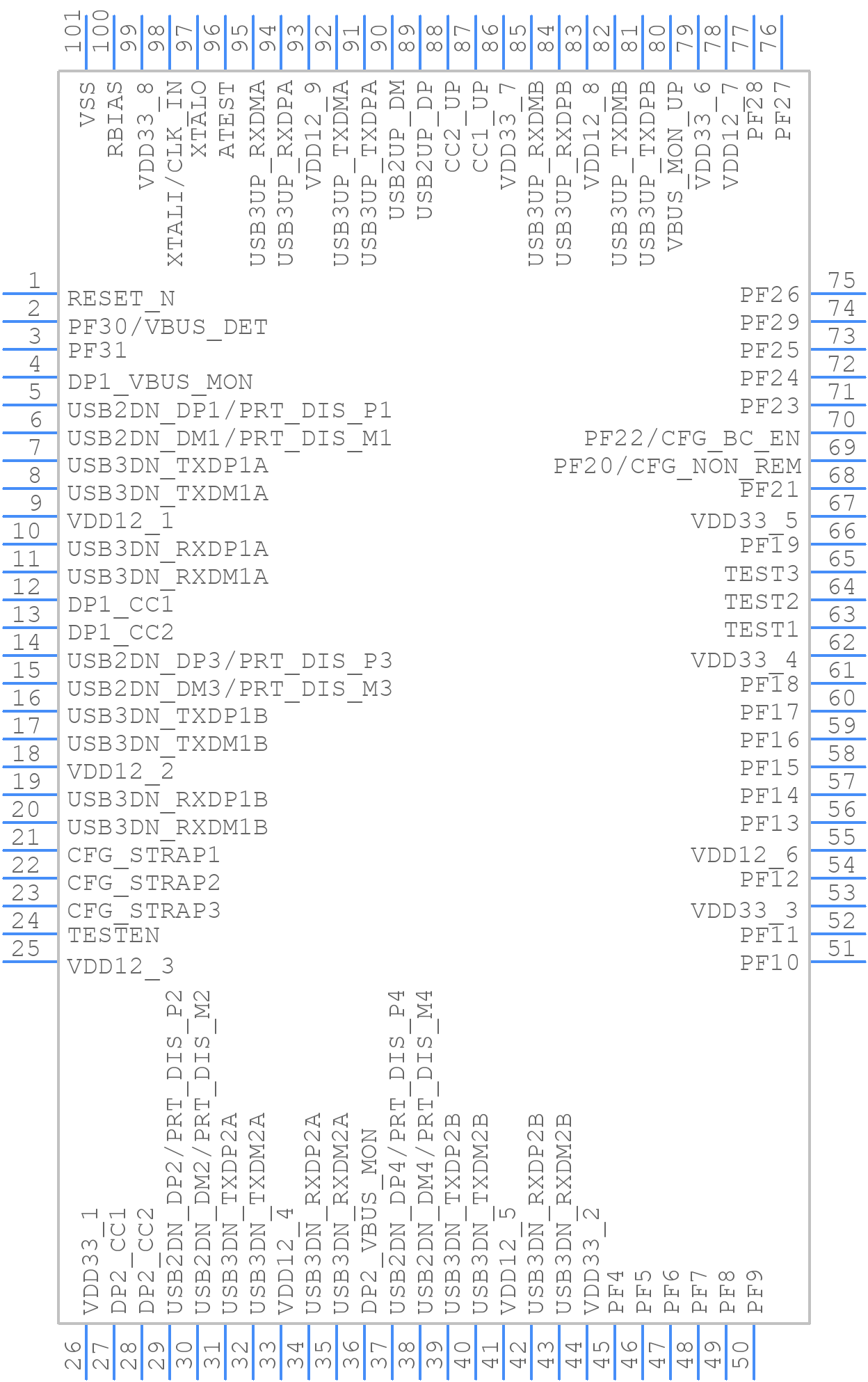

Part Symbol
-

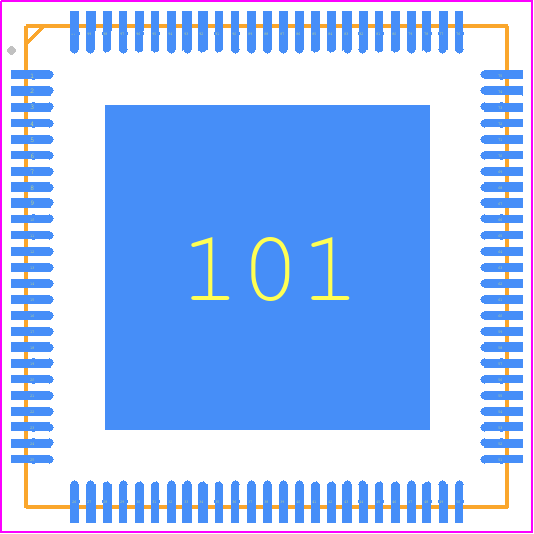

Footprint
-

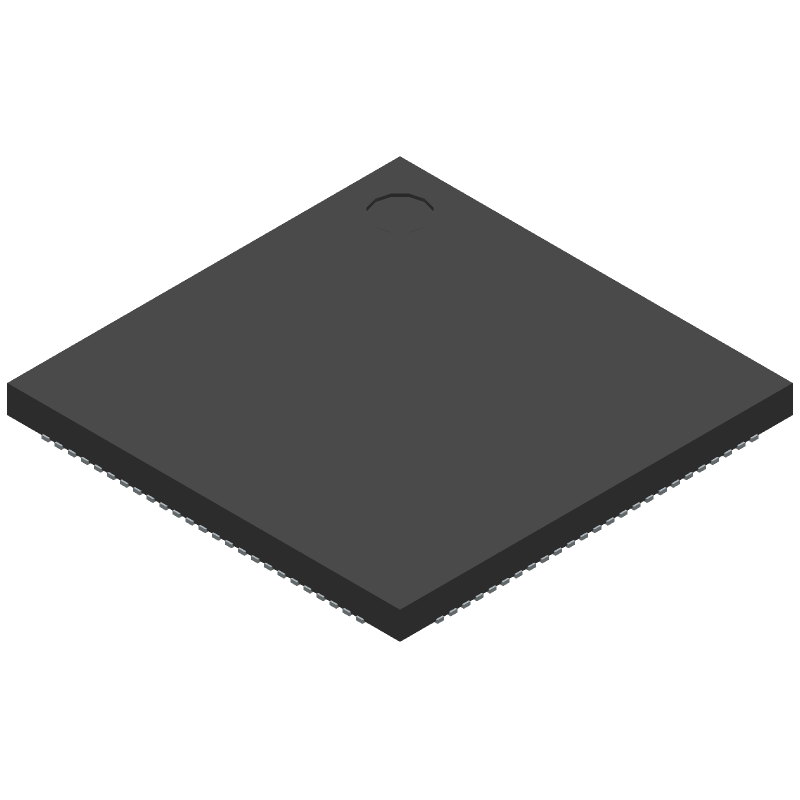

3D Model
