VFT3045CBP-M3/4W by Vishay Intertechnologies is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for VFT3045CBP-M3/4W
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
VFT3045CBP-M3/4W
|
Avnet Americas | 30A,45V,TRENCH SKY RECT. - Tape and Reel (Alt: VFT3045CBP-M3/4W) COO: China RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.7584 / $0.8062 | Buy Now |
US Tariff Estimator: VFT3045CBP-M3/4W by Vishay Intertechnologies
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for VFT3045CBP-M3/4W
VFT3045CBP-M3/4W CAD Models
-
Part Symbol
-

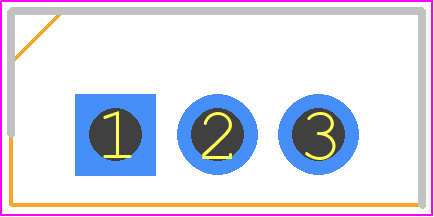

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
VFT3045CBP-M3/4W Part Data Attributes
|
|
VFT3045CBP-M3/4W
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
VFT3045CBP-M3/4W
Vishay Intertechnologies
Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 45V V(RRM), Silicon, TO-220AB, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, ITO-220AB, 3 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Ito-220ab, 3 Pin | |
| Reach Compliance Code | Unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 7 Weeks | |
| Additional Feature | Low Power Loss | |
| Application | Efficiency | |
| Case Connection | Isolated | |
| Configuration | Common Cathode, 2 Elements | |
| Diode Element Material | Silicon | |
| Diode Type | Rectifier Diode | |
| Forward Voltage-Max (VF) | 0.57 V | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 200 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 15 A | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Flange Mount | |
| Rep Pk Reverse Voltage-Max | 45 V | |
| Reverse Current-Max | 2000 µA | |
| Surface Mount | No | |
| Technology | Schottky | |
| Terminal Finish | Matte Tin | |
| Terminal Form | Through-Hole | |
| Terminal Position | Single |
Alternate Parts for VFT3045CBP-M3/4W
This table gives cross-reference parts and alternative options found for VFT3045CBP-M3/4W. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of VFT3045CBP-M3/4W, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MBR3045FCT | Yangzhou Yangjie Electronics Co Ltd | $0.2771 | Rectifier Diode, | VFT3045CBP-M3/4W vs MBR3045FCT |
| SBL3045FCT | Won-Top Electronics Co Ltd | Check for Price | Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 45V V(RRM), Silicon, TO-220AB, ITO-220, 3 PIN | VFT3045CBP-M3/4W vs SBL3045FCT |
| MBRF3045CTD0G | Taiwan Semiconductor | Check for Price | Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 45V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN | VFT3045CBP-M3/4W vs MBRF3045CTD0G |
| MGBR30U45CG-TF3-T | Unisonic Technologies Co Ltd | Check for Price | Rectifier Diode, | VFT3045CBP-M3/4W vs MGBR30U45CG-TF3-T |
| SB3045FCT-LF | Won-Top Electronics Co Ltd | Check for Price | Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 45V V(RRM), Silicon, TO-220AB, ITO-220, 3 PIN | VFT3045CBP-M3/4W vs SB3045FCT-LF |
| MBRF3045CT-YC0 | Taiwan Semiconductor | Check for Price | Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 45V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN | VFT3045CBP-M3/4W vs MBRF3045CT-YC0 |
| MBRF3045CT-LJ | Diodes Incorporated | Check for Price | Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 45V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN | VFT3045CBP-M3/4W vs MBRF3045CT-LJ |
| MBRF3045CT | Suzhou Good-Ark Electronics Co Ltd | Check for Price | Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 45V V(RRM), Silicon, TO-220AB, PLASTIC, ITO-220AB, 3 PIN | VFT3045CBP-M3/4W vs MBRF3045CT |
| SBR3045CTFP | Diodes Incorporated | Check for Price | Rectifier Diode, 1 Phase, 2 Element, 15A, 45V V(RRM), Silicon, TO-220AB, ROHS COMPLIANT, PLASTIC, ITO-220AB, 3 PIN | VFT3045CBP-M3/4W vs SBR3045CTFP |
| MBRF3045CT | Vishay Semiconductors | Check for Price | Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 45V V(RRM), Silicon, PLASTIC, ITO-220AB, 3 PIN | VFT3045CBP-M3/4W vs MBRF3045CT |
VFT3045CBP-M3/4W Frequently Asked Questions (FAQ)
-
Vishay provides a recommended PCB layout and land pattern in their application note AN10343, which can be found on their website. It's essential to follow these guidelines to ensure proper thermal performance and to prevent thermal runaway.
-
The VFT3045CBP-M3/4W comes with a pre-applied TIM. However, if you need to rework or replace the TIM, Vishay recommends using a thermal interface material with a thermal conductivity of at least 1 W/m-K. Apply a thin, uniform layer of TIM to the device's thermal pad, and ensure good contact between the device and the heat sink.
-
Vishay recommends derating the maximum voltage by 10% to ensure reliable operation and to prevent electrical overstress. For example, if the maximum rated voltage is 45 V, the derated voltage would be 40.5 V.
-
Follow the recommended soldering profile and guidelines provided in the Vishay application note AN10226. Ensure the soldering temperature does not exceed 260°C, and the soldering time is within the recommended range of 3-5 seconds. Use a solder with a melting point above 217°C to prevent solder joint fatigue.
-
Store the VFT3045CBP-M3/4W in a dry, cool place, away from direct sunlight and moisture. Handle the devices by the body, avoiding touching the leads or thermal pad to prevent electrical discharge damage. Use anti-static packaging and follow ESD handling procedures to prevent damage during storage and handling.
