Results Overview of VI-J33-EW-B1 by Vicor Corporation

Distributor Offerings: (1 listing)
Number of FFF Equivalents: (4 replacements)
Tariff Estimator: (Not Available)
Number of Functional Equivalents: (10 options)
CAD Models: (Available)
Part Data Attributes: (Available)
Reference Designs: (Not Available)

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Energy and Power Systems Renewable Energy Automotive

VI-J33-EW-B1 Information

VI-J33-EW-B1 by Vicor Corporation is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Part #	Distributor	Description	Stock	Price	Buy
VI-J33-EW-B1 DISTI # VI-J33-EW-B1	Avnet Americas	Module DC-DC Single-Out 24V 4.17A 100W Screw Mount/Through Hole 9-Pin Half Brick - Boxed Product (Development Kits) (Alt: VI-J33-EW-B1) COO: United States of America (the) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 22 Weeks, 0 Days Container: Box	0	1 $576.1273 10 $551.0783 30 $528.2047 50 $506.9920 100 $487.4923	$487.4923 / $576.1273	Buy Now

Part Details for VI-J33-EW-B1

VI-J33-EW-B1 CAD Models

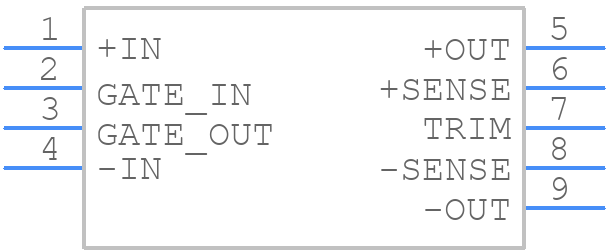

Part Symbol

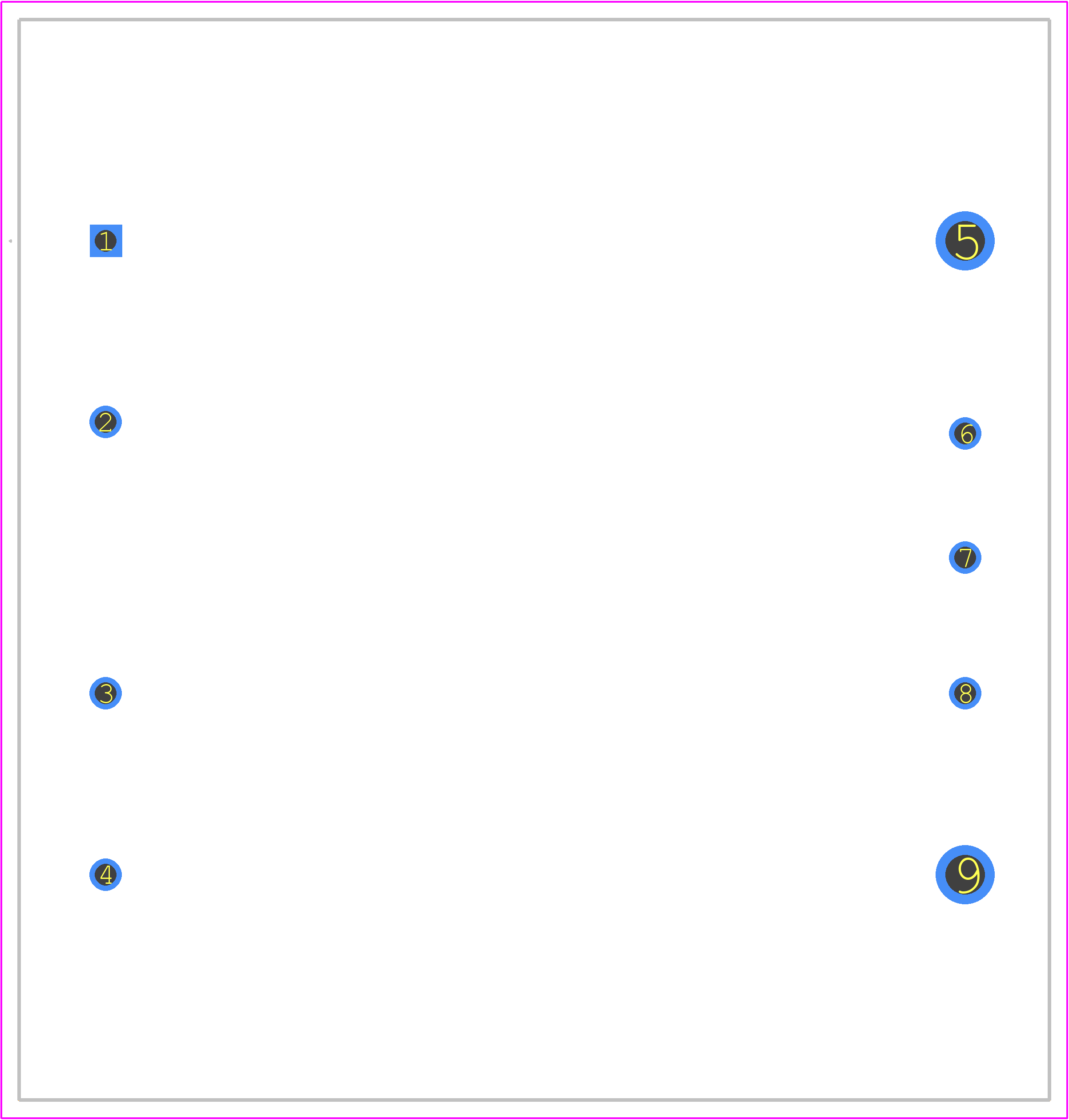

Footprint

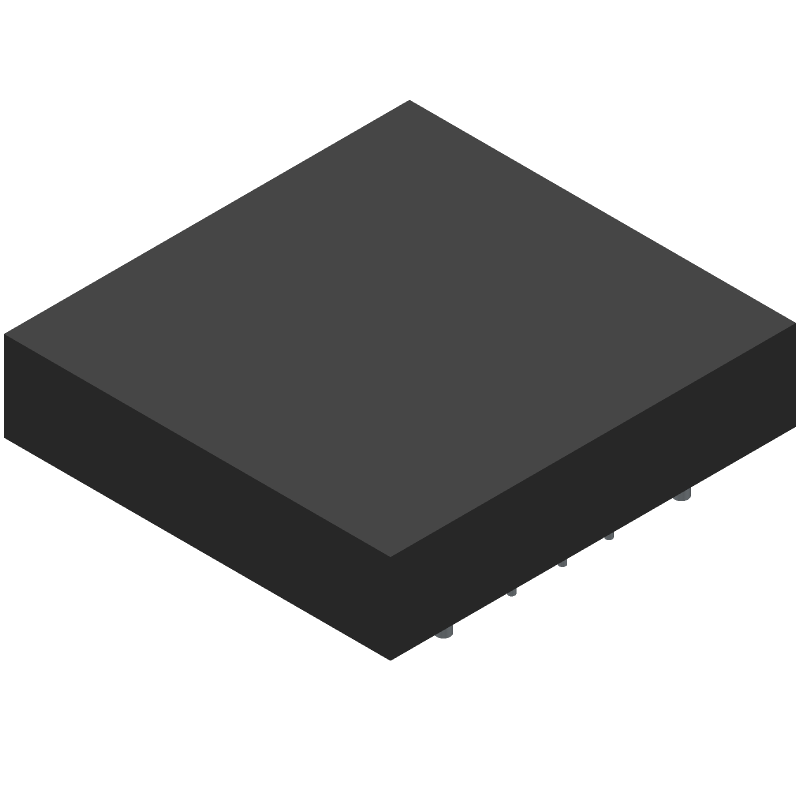

3D Model

Available Download Formats

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

VI-J33-EW-B1 Part Data Attributes

Parametric Data

Show differences only	VI-J33-EW-B1 Vicor Corporation Buy Now Datasheet	Buy Now	Compare Parts: VI-J33-EW-B1 Vicor Corporation DC-DC Regulated Power Supply Module, 100W

Rohs Code	No
Part Life Cycle Code	Active
Reach Compliance Code	Not Compliant
ECCN Code	EAR99
Factory Lead Time	22 Weeks
Additional Feature	Remote Shutdown
Analog IC - Other Type	Dc-Dc Regulated Power Supply Module
Approvals	Tuv, Ul
Efficiency (Main Output)	88%
Input Voltage-Max	60 V
Input Voltage-Min	42 V
Input Voltage-Nom	48 V
JESD-30 Code	R-XDFM-P9
JESD-609 Code	e0
Length	61 Mm
Line Regulation-Max	0.2%
Load Regulation-Max	0.2%
Number of Functions	1
Number of Outputs	1
Number of Terminals	9
Operating Temperature-Max	100 °C
Operating Temperature-Min	-10 °C
Output Voltage-Max	26.4 V
Output Voltage-Min	12 V
Output Voltage-Nom	24 V
Package Body Material	Unspecified
Package Code	DFM
Package Shape	Rectangular
Package Style	Flange Mount
Seated Height-Max	27.4 Mm
Surface Mount	No
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	Pin/Peg
Terminal Position	Dual
Total Power Output-Max	100 W
Width	57.9 Mm

Alternate Parts for VI-J33-EW-B1

This table gives cross-reference parts and alternative options found for VI-J33-EW-B1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of VI-J33-EW-B1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number	Manufacturer	Composite Price	Description	Compare
VI-J33-CW-B1	Vicor Corporation	Check for Price	DC-DC Regulated Power Supply Module, 100W	VI-J33-EW-B1 vs VI-J33-CW-B1
VE-J33-MW-B1	Vicor Corporation	Check for Price	DC-DC Regulated Power Supply Module, 100W	VI-J33-EW-B1 vs VE-J33-MW-B1
VI-J33-IW-B1	Vicor Corporation	Check for Price	DC-DC Regulated Power Supply Module, 100W	VI-J33-EW-B1 vs VI-J33-IW-B1
VE-J33-CW-B1	Vicor Corporation	Check for Price	DC-DC Regulated Power Supply Module, 100W	VI-J33-EW-B1 vs VE-J33-CW-B1

Part Number	Manufacturer	Composite Price	Description	Compare
VE-J33-IW-F4	Vicor Corporation	Check for Price	DC-DC Regulated Power Supply Module, 1 Output, 100W, Hybrid, 2.280 X 2.400 INCH, 0.500 INCH HEIGHT, MODULE-9	VI-J33-EW-B1 vs VE-J33-IW-F4
VI-J33-IW-F2	Vicor Corporation	Check for Price	DC-DC Regulated Power Supply Module, 1 Output, 100W, Hybrid,	VI-J33-EW-B1 vs VI-J33-IW-F2
VI-J33-MW-F3	Vicor Corporation	Check for Price	DC-DC Regulated Power Supply Module, 1 Output, 100W, Hybrid, 2.280 X 2.400 INCH, 0.500 INCH HEIGHT, MODULE-9	VI-J33-EW-B1 vs VI-J33-MW-F3
VI-J33-MW	Vicor Corporation	Check for Price	DC-DC Regulated Power Supply Module, 1 Output, 100W, Hybrid, HALF BRICK PACKAGE-9	VI-J33-EW-B1 vs VI-J33-MW
VE-J33-MW	Vicor Corporation	Check for Price	DC-DC Regulated Power Supply Module, 1 Output, 100W, Hybrid, ROHS COMPLIANT, HALF BRICK PACKAGE-9	VI-J33-EW-B1 vs VE-J33-MW
VI-J33-IW	Vicor Corporation	Check for Price	DC-DC Regulated Power Supply Module, 1 Output, 100W, Hybrid, HALF BRICK PACKAGE-9	VI-J33-EW-B1 vs VI-J33-IW
VI-J33-EW	Vicor Corporation	Check for Price	DC-DC Regulated Power Supply Module, 1 Output, 100W, Hybrid, HALF BRICK PACKAGE-9	VI-J33-EW-B1 vs VI-J33-EW
VI-J33-EW-F3	Vicor Corporation	Check for Price	DC-DC Regulated Power Supply Module, 1 Output, 100W, Hybrid, 2.280 X 2.400 INCH, 0.500 INCH HEIGHT, MODULE-9	VI-J33-EW-B1 vs VI-J33-EW-F3
VE-J33-IW-F2	Vicor Corporation	Check for Price	DC-DC Regulated Power Supply Module, 1 Output, 100W, Hybrid,	VI-J33-EW-B1 vs VE-J33-IW-F2
VE-J33-EW-F1	Vicor Corporation	Check for Price	DC-DC Regulated Power Supply Module, 1 Output, 100W, Hybrid,	VI-J33-EW-B1 vs VE-J33-EW-F1
