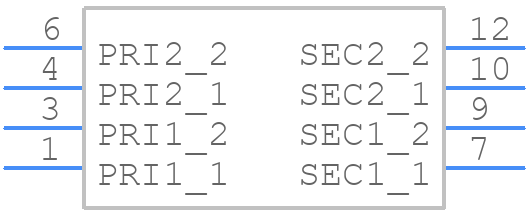

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VPP12-2400 by Triad Magnetics
Overview of VPP12-2400 by Triad Magnetics
- Distributor Offerings:
- Number of FFF Equivalents:
- CAD Models:
- Number of Functional Equivalents:
- Part Data Attributes
- Reference Designs:
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for VPP12-2400
| Distributor | Stock | Package | QTY Break / Prices |
|---|---|---|---|
|
|
1845 Box |
Box |
|
|
|
0 | Bulk |
|
|
|
2 | Bulk |
|
Part Details for VPP12-2400
VPP12-2400 CAD Models
VPP12-2400 Part Data Attributes
|
|
VPP12-2400
Triad Magnetics
Buy Now
Datasheet
|
Compare Parts:
VPP12-2400
Triad Magnetics
Split Bobbin Power Transformer, 30VA, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TRIAD MAGNETICS | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.31.40.35 | |
| Samacsys Manufacturer | Triad Magnetics | |
| Application | POWER | |
| Approvals | CE, CSA, CUL, TUV, UL | |
| Center Tap Feature 1 | NO | |
| Center Tap Feature 2 | NO | |
| Height | 39.67 mm | |
| Input Voltage-Nom | 230 V | |
| Isolation Voltage | 4000 V | |
| Length | 66.67 mm | |
| Mounting Feature | THROUGH HOLE MOUNTED | |
| Number of Primary Winding | 2 | |
| Number of Secondary Winding | 2 | |
| Output Current 1 | 4.8 A | |
| Output Current 2 | 4.8 A | |
| Output Voltage 1 | 6.3 V | |
| Output Voltage 2 | 6.3 V | |
| Physical Dimension | L66.67XB55.55XH39.67 (mm) | |
| Primary Rating | DUAL 115V | |
| Surface Mount | NO | |
| Transformer Type | POWER TRANSFORMER | |
| VA Rating | 30 VA | |
| Width | 55.55 mm |
