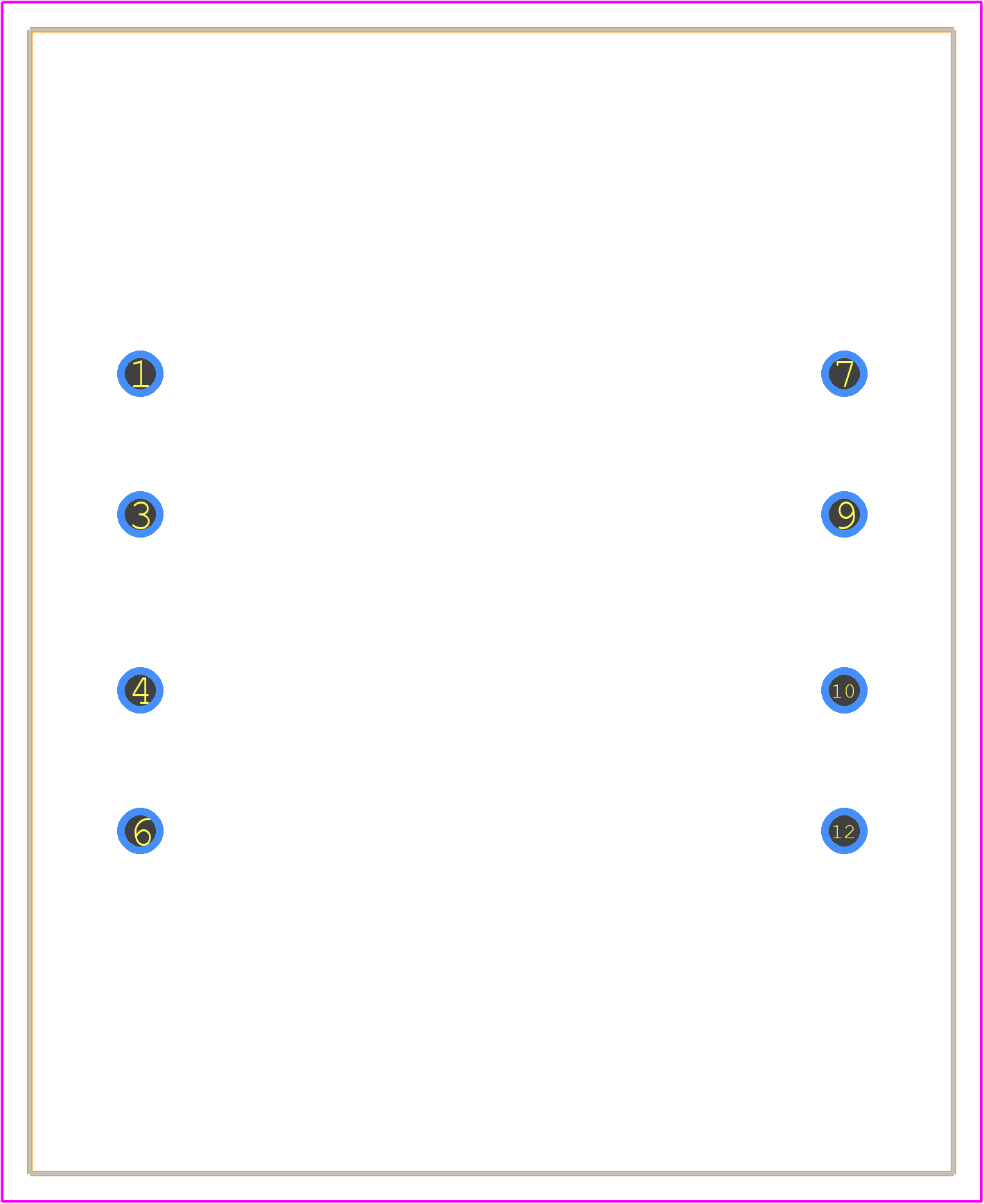

Footprint
-

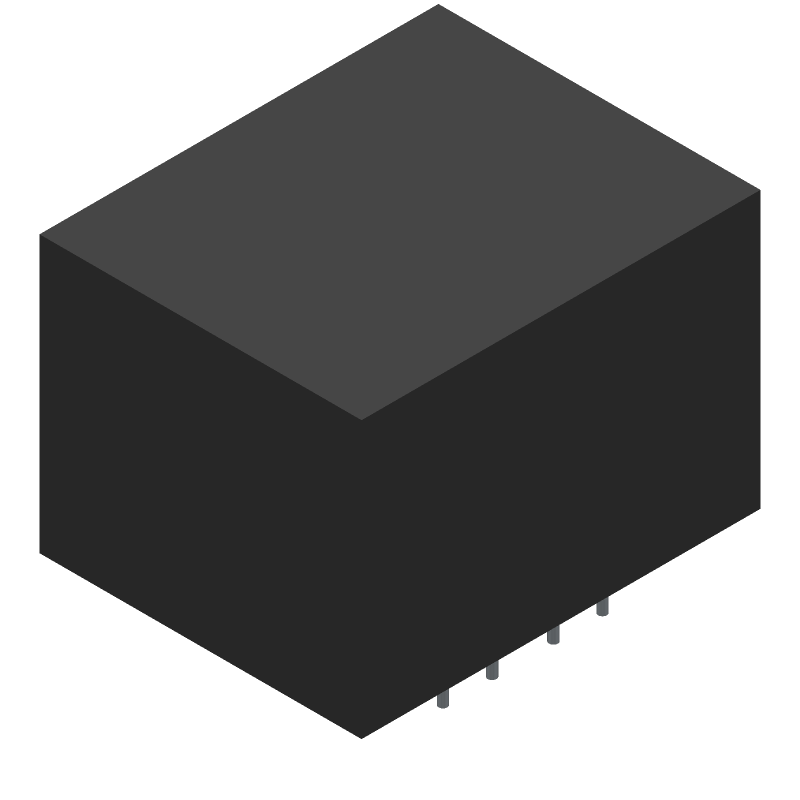

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VPP16-150 by Triad Magnetics
Overview of VPP16-150 by Triad Magnetics
- Distributor Offerings:
- Number of FFF Equivalents:
- CAD Models:
- Number of Functional Equivalents:
- Part Data Attributes
- Reference Designs:
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for VPP16-150
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
93F8760
|
Newark | Power Transformer, Pcb Transformer Type:Dual Bobbin, Secondary Voltages:2 X 8V, Power Rating:2.5Va, Frequency Range:50Hz/60Hz, Winding Type:Dual Primary, Dual Secondary, Current Rating:300Ma, Isolation Voltage:4Kv Rohs Compliant: Yes |Triad Magnetics VPP16-150 Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$5.5800 / $8.6700 | Buy Now |
|
DISTI #
237-1062-ND
|
DigiKey | PWR XFMR LAMINATED 2.5VA TH Min Qty: 1 Lead time: 23 Weeks Container: Box |
1353 In Stock |
|
$4.5875 / $7.7700 | Buy Now |
|
DISTI #
553-VPP16-150
|
Mouser Electronics | Power Transformers POWER XFMR 16.0Vct@0.150A UL/CSA/VDE PCB MOUNT/VPP16-150 RoHS: Compliant | 37 |
|
$4.5800 / $7.7700 | Buy Now |
|
DISTI #
70218371
|
RS | Transformer, Power, Bobbin, 1, Freq 50/60Hz, Pri 115/230VAC, Sec 8/16VAC, PCB | Triad Magnetics VPP16-150 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk | 0 |
|
$7.0700 / $7.7700 | RFQ |
|
|
Future Electronics | PC Mount World Series 300 mA Dual Bobbin Insulated Shroud Power Transformer RoHS: Compliant pbFree: Yes Min Qty: 84 Package Multiple: 84 Container: Bag | 0Bag |
|
$4.7500 / $5.5300 | Buy Now |
|
|
Onlinecomponents.com | Power Transformer 4000VAC 2.5VA 8Term. PC Pin Thru-Hole | 7168 Factory Stock |
|
$4.7600 / $7.2300 | Buy Now |
|
|
Master Electronics | Power Transformer 4000VAC 2.5VA 8Term. PC Pin Thru-Hole | 7168 Factory Stock |
|
$4.7600 / $7.2300 | Buy Now |
|
|
Neutron USA | Power Transformers 2.5VA 16VCT at 0.15A 8V at 0.3A PCMNT | 50 |
|
$53.5200 | Buy Now |
Part Details for VPP16-150
VPP16-150 CAD Models
VPP16-150 Part Data Attributes
|
|
VPP16-150
Triad Magnetics
Buy Now
Datasheet
|
Compare Parts:
VPP16-150
Triad Magnetics
Split Bobbin Power Transformer, 2.5VA, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TRIAD MAGNETICS | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.31.40.35 | |
| Samacsys Manufacturer | Triad Magnetics | |
| Application | POWER | |
| Approvals | CSA; IEC; TUV; UL | |
| Center Tap Feature 1 | NO | |
| Center Tap Feature 2 | NO | |
| Height | 28.58 mm | |
| Input Voltage-Nom | 230 V | |
| Isolation Voltage | 4000 V | |
| Length | 41.28 mm | |
| Mounting Feature | THROUGH HOLE MOUNTED | |
| Number of Primary Winding | 2 | |
| Number of Secondary Winding | 2 | |
| Output Current 1 | 0.3 A | |
| Output Voltage 1 | 8 V | |
| Output Voltage 2 | 8 V | |
| Primary Rating | DUAL 115V | |
| Surface Mount | NO | |
| Transformer Type | POWER TRANSFORMER | |
| VA Rating | 2.5 VA | |
| Width | 33.34 mm |
