VS-12CWQ10FN-M3 Information
VS-12CWQ10FN-M3 by Vishay Intertechnologies is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for VS-12CWQ10FN-M3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AC3961
|
Newark | Schottky Rectifier, 100V, 12A, To-252Aa, Repetitive Peak Reverse Voltage:100V, Average Forward Current:12A, Diode Configuration:Dual Common Cathode, Diode Case Style:To-252Aa, No. Of Pins:3Pins, Forward Voltage Max:950Mv Rohs Compliant: Yes |Vishay VS-12CWQ10FN-M3 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 150 |
|
$0.9490 / $1.3800 | Buy Now |
|
DISTI #
60AC3961
|
Avnet Americas | Diode Schottky 100V 12A 3-Pin(2+Tab) DPAK Tube - Bulk (Alt: 60AC3961) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk | 150 Partner Stock |
|
$1.0200 / $1.3800 | Buy Now |
|
DISTI #
VS-12CWQ10FN-M3
|
Avnet Americas | Diode Schottky 100V 12A 3-Pin(2+Tab) DPAK Tube - Tape and Reel (Alt: VS-12CWQ10FN-M3) COO: China RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 11 Weeks, 0 Days Container: Reel | 0 |
|
$0.3268 / $0.3473 | Buy Now |
|
|
Bristol Electronics | Min Qty: 6 | 1075 |
|
$0.2564 / $0.9157 | Buy Now |
|
DISTI #
VS-12CWQ10FN-M3
|
TME | Diode: Schottky rectifying, DPAK, SMD, 100V, 6Ax2, tube, 75pcs. Min Qty: 1 | 350 |
|
$0.6460 / $1.0500 | Buy Now |
|
DISTI #
DSKY6537
|
Rutronik | SCHOTTKY-DIODE 6A 100V 0,65V DPAK RoHS: Compliant Min Qty: 75 Package Multiple: 75 Container: Tube |
Stock DE - 3000 Stock HK - 0 Stock US - 0 Stock SG - 0 |
|
$0.5126 / $0.6295 | Buy Now |
|
DISTI #
VS-12CWQ10FN-M3
|
Avnet Asia | Diode Schottky 100V 12A 3-Pin(2+Tab) DPAK Tube (Alt: VS-12CWQ10FN-M3) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 13 Weeks, 0 Days | 0 |
|
RFQ | |
|
|
Chip Stock | RectifierDiodeSchottky100V12A3-Pin(2+Tab)DPAKTube/DIODEARRAYSCHOTTKY100VDPAK | 7020 |
|
RFQ | |
|
DISTI #
VS-12CWQ10FN-M3
|
EBV Elektronik | Diode Schottky 100V 12A 3Pin2Tab DPAK Tube (Alt: VS-12CWQ10FN-M3) RoHS: Compliant Min Qty: 75 Package Multiple: 75 Lead time: 12 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
LCSC | 330A 100V 1 Pair Common Cathode 950mV12A 6A DPAK(TO-252AA) Single Diodes RoHS | 1218 |
|
$0.2663 / $0.5681 | Buy Now |
US Tariff Estimator: VS-12CWQ10FN-M3 by Vishay Intertechnologies
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for VS-12CWQ10FN-M3
VS-12CWQ10FN-M3 CAD Models
-

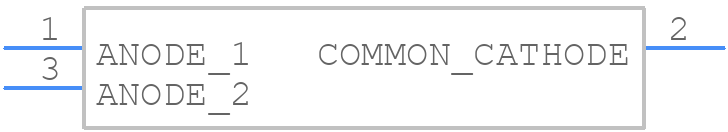

Part Symbol
-

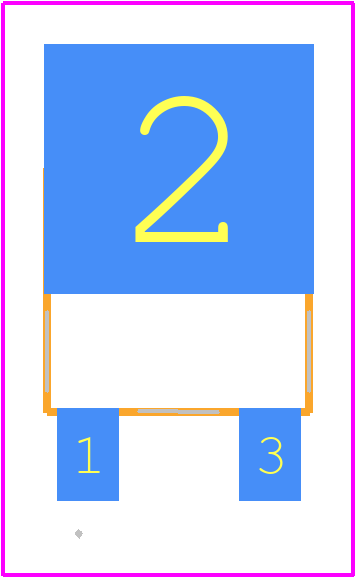

Footprint
-
