Part Details for VS-30BQ100HM3/9AT by Vishay Intertechnologies
Results Overview of VS-30BQ100HM3/9AT by Vishay Intertechnologies
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (9 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
VS-30BQ100HM3/9AT Information
VS-30BQ100HM3/9AT by Vishay Intertechnologies is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for VS-30BQ100HM3/9AT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
38AH3304
|
Newark | Schottky - Smc-E3 Rohs Compliant: Yes |Vishay VS-30BQ100HM3/9AT RoHS: Compliant Min Qty: 3500 Package Multiple: 1 Date Code: 0 Container: Reel | 175000 |
|
$0.2350 / $0.2930 | Buy Now |
|
DISTI #
60AC3968
|
Newark | Schottky Rectifier, 100V, 3A, Do-214Ab, Repetitive Peak Reverse Voltage:100V, Average Forward Current:3A, Diode Configuration:Single, Diode Case Style:Do-214Ab (Smc), No. Of Pins:2Pins, Forward Voltage Max:790Mv, Product Range:- Rohs Compliant: Yes |Vishay VS-30BQ100HM3/9AT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 4132 |
|
$0.1760 | Buy Now |
|
DISTI #
27AK0263
|
Newark | Schottky - Smc |Vishay VS-30BQ100HM3/9AT RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 3248 |
|
$0.3120 / $0.5200 | Buy Now |
|
DISTI #
49Y3291
|
Newark | Schottky - Smc |Vishay VS-30BQ100HM3/9AT RoHS: Not Compliant Min Qty: 3500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2440 / $0.3020 | Buy Now |
|
DISTI #
VS-30BQ100HM3/9AT
|
Avnet Americas | - Tape and Reel (Alt: VS-30BQ100HM3/9AT) COO: China RoHS: Compliant Min Qty: 3500 Package Multiple: 3500 Lead time: 5 Weeks, 0 Days Container: Reel | 175000 |
|
$0.1542 | Buy Now |
|
DISTI #
27AK0263
|
Avnet Americas | - Product that comes on tape, but is not reeled (Alt: 27AK0263) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack | 3248 Partner Stock |
|
$0.2800 / $0.5200 | Buy Now |
|
DISTI #
60AC3968
|
Avnet Americas | - Product that comes on tape, but is not reeled (Alt: 60AC3968) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack | 213 Partner Stock |
|
$0.3050 / $0.5200 | Buy Now |
|
DISTI #
VS-30BQ100HM3/9AT
|
TME | Diode: Schottky rectifying, SMB, SMD, 100V, 3A, 13 inch reel Min Qty: 1 | 0 |
|
$0.2000 / $0.5000 | RFQ |
|
DISTI #
DSKY5182
|
Rutronik | SCHOTTKY-DIODE 100V 3A SMC RoHS: Compliant Min Qty: 3500 Package Multiple: 3500 Container: Reel |
Stock DE - 7000 Stock HK - 0 Stock US - 0 Stock SG - 0 |
|
$0.1878 / $0.2228 | Buy Now |
|
DISTI #
VS-30BQ100HM3/9AT
|
Avnet Asia | (Alt: VS-30BQ100HM3/9AT) RoHS: Compliant Min Qty: 3500 Package Multiple: 3500 Lead time: 7 Weeks, 0 Days | 0 |
|
$0.2876 / $0.3241 | Buy Now |
US Tariff Estimator: VS-30BQ100HM3/9AT by Vishay Intertechnologies
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for VS-30BQ100HM3/9AT
VS-30BQ100HM3/9AT CAD Models
-
Part Symbol
-

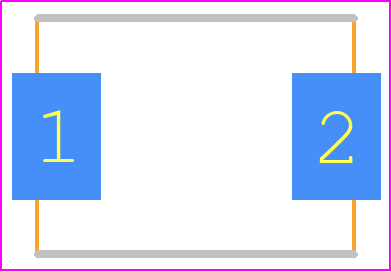

Footprint
-

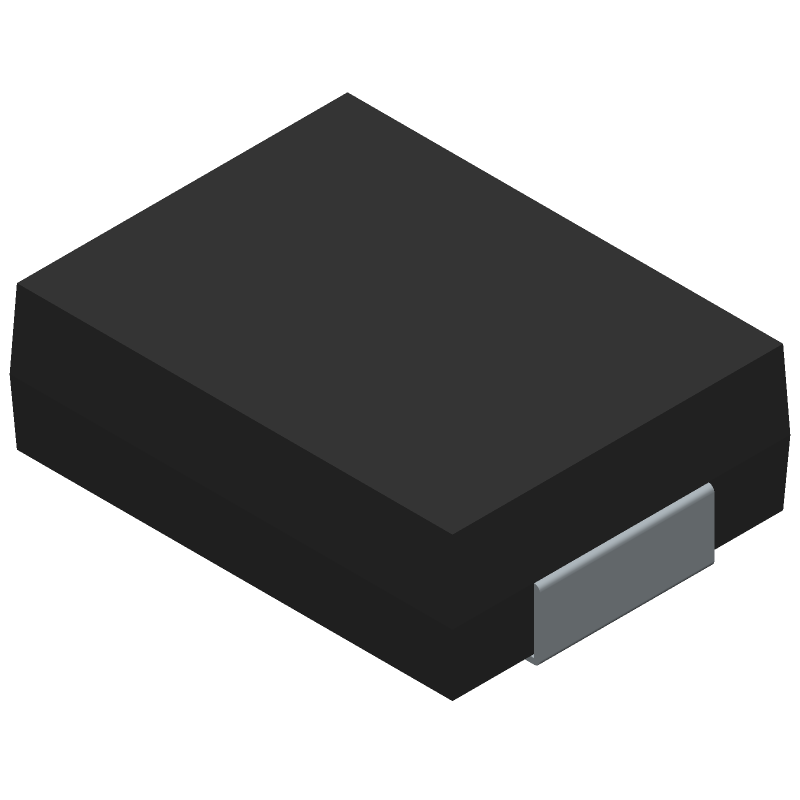

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
VS-30BQ100HM3/9AT Part Data Attributes
|
|
VS-30BQ100HM3/9AT
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
VS-30BQ100HM3/9AT
Vishay Intertechnologies
Rectifier Diode, Schottky, 1 Phase, 1 Element, 100V V(RRM), Silicon, DO-214AB, HALOGEN FREE AND ROHS COMPLIANT, SMC, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | FREE WHEELING DIODE | |
| Application | GENERAL PURPOSE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.9 V | |
| JEDEC-95 Code | DO-214AB | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 800 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 4 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Reverse Current-Max | 500 µA | |
| Reverse Test Voltage | 100 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL |
Alternate Parts for VS-30BQ100HM3/9AT
This table gives cross-reference parts and alternative options found for VS-30BQ100HM3/9AT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of VS-30BQ100HM3/9AT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| VS-MBRS340-M3/9AT | Vishay Intertechnologies | $0.2886 | Rectifier Diode, Schottky, 1 Phase, 1 Element, 40V V(RRM), Silicon, DO-214AB, HALOGEN FREE AND ROHS COMPLIANT, SMC, 2 PIN | VS-30BQ100HM3/9AT vs VS-MBRS340-M3/9AT |
| SK85-TP | Micro Commercial Components | Check for Price | Rectifier Diode, Schottky, 1 Phase, 1 Element, 8A, 50V V(RRM), Silicon, DO-214AB, SMCJ, 2 PIN | VS-30BQ100HM3/9AT vs SK85-TP |
| FR6D-TP | Micro Commercial Components | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 6A, 200V V(RRM), Silicon, DO-214AB, PLASTIC, HSMC, 2 PIN | VS-30BQ100HM3/9AT vs FR6D-TP |
| CS3K-E3/I | Vishay Intertechnologies | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 2A, 800V V(RRM), Silicon, DO-214AB, SMC, 2 PIN | VS-30BQ100HM3/9AT vs CS3K-E3/I |
| S5M | SEMIKRON | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 5A, 1000V V(RRM), Silicon, DO-214AB, PLASTIC, SMC, 2 PIN | VS-30BQ100HM3/9AT vs S5M |
| ER6G-T | Micro Commercial Components | Check for Price | Rectifier Diode, | VS-30BQ100HM3/9AT vs ER6G-T |
| GN6K | Suzhou Good-Ark Electronics Co Ltd | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 6A, 800V V(RRM), Silicon, DO-214AB, SMC, 2 PIN | VS-30BQ100HM3/9AT vs GN6K |
| FR8M-TP | Micro Commercial Components | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 8A, 1000V V(RRM), Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, HSMC, 2 PIN | VS-30BQ100HM3/9AT vs FR8M-TP |
| ER6D-TP | Micro Commercial Components | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 6A, 200V V(RRM), Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, HSMC, 2 PIN | VS-30BQ100HM3/9AT vs ER6D-TP |
VS-30BQ100HM3/9AT Frequently Asked Questions (FAQ)
-
The recommended land pattern for the VS-30BQ100HM3/9AT can be found in the Vishay Intertechnologies' application note AN48374, which provides guidelines for PCB layout and assembly.
-
The VS-30BQ100HM3/9AT has a thermal resistance of 1.5°C/W. To ensure proper thermal management, it is recommended to use a heat sink with a thermal interface material and to follow the guidelines outlined in the Vishay Intertechnologies' application note AN48374.
-
The maximum allowed voltage derating for the VS-30BQ100HM3/9AT is 80% of the rated voltage, as specified in the datasheet. Exceeding this limit may affect the reliability and lifespan of the device.
-
The VS-30BQ100HM3/9AT is designed for high-frequency applications up to 100 kHz. However, it is recommended to consult with a Vishay Intertechnologies' application engineer to ensure the device meets the specific requirements of your application.
-
The VS-30BQ100HM3/9AT should be stored in a dry, cool place, away from direct sunlight and moisture. It is recommended to follow the ESD handling procedures outlined in the Vishay Intertechnologies' application note AN48374 to prevent damage during handling and assembly.
