Part Details for VS-8EWS12STR-M3 by Vishay Intertechnologies
Results Overview of VS-8EWS12STR-M3 by Vishay Intertechnologies
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (6 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
VS-8EWS12STR-M3 Information
VS-8EWS12STR-M3 by Vishay Intertechnologies is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for VS-8EWS12STR-M3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
43X2483
|
Newark | New Input Diodes - D-Pak |Vishay VS-8EWS12STR-M3 RoHS: Not Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$1.3800 / $1.6200 | Buy Now |
|
DISTI #
VS-8EWS12STR-M3
|
Avnet Americas | - Tape and Reel (Alt: VS-8EWS12STR-M3) COO: China RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$1.1520 / $1.2011 | Buy Now |
|
DISTI #
VS-8EWS12STR-M3
|
TME | Diode: rectifying, SMD, 1.2kV, 8A, DPAK, Ufmax: 1.1V, 13 inch reel Min Qty: 1 | 0 |
|
$0.8400 / $1.6000 | RFQ |
|
DISTI #
VS-8EWS12STR-M3
|
IBS Electronics | VS-8EWS12: 1200 V 8 A HIGH VOLTAGE INPUT RECTIFIER DIODE - D-PAK (TO-252AA) Min Qty: 2000 Package Multiple: 1 | 0 |
|
$0.6720 | Buy Now |
|
DISTI #
VS-8EWS12STR-M3
|
EBV Elektronik | (Alt: VS-8EWS12STR-M3) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 17 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
US Tariff Estimator: VS-8EWS12STR-M3 by Vishay Intertechnologies
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for VS-8EWS12STR-M3
VS-8EWS12STR-M3 CAD Models
-

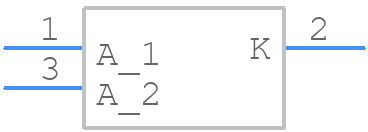

Part Symbol
-

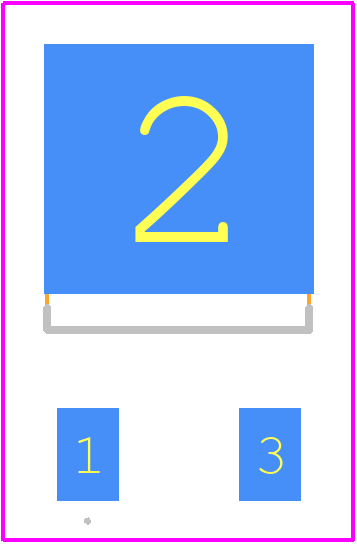

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
VS-8EWS12STR-M3 Part Data Attributes
|
|
VS-8EWS12STR-M3
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
VS-8EWS12STR-M3
Vishay Intertechnologies
Rectifier Diode, 1 Phase, 1 Element, 8A, 1200V V(RRM), Silicon, TO-252AA, DPAK-3
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Dpak-3 | |
| Reach Compliance Code | Unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 16 Weeks | |
| Application | High Voltage High Power | |
| Case Connection | Cathode | |
| Configuration | Single | |
| Diode Element Material | Silicon | |
| Diode Type | Rectifier Diode | |
| Forward Voltage-Max (VF) | 1.1 V | |
| JEDEC-95 Code | TO-252AA | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 120 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 8 A | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 1200 V | |
| Surface Mount | Yes | |
| Terminal Finish | Matte Tin (Sn) - With Nickel (Ni) Barrier | |
| Terminal Form | Gull Wing | |
| Terminal Position | Single | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
Alternate Parts for VS-8EWS12STR-M3
This table gives cross-reference parts and alternative options found for VS-8EWS12STR-M3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of VS-8EWS12STR-M3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| VS-8EWS12S-M3 | Vishay Intertechnologies | $0.9994 | Rectifier Diode, 1 Phase, 1 Element, 8A, 1200V V(RRM), Silicon, TO-252AA, DPAK-3 | VS-8EWS12STR-M3 vs VS-8EWS12S-M3 |
VS-8EWS12STR-M3 Frequently Asked Questions (FAQ)
-
The recommended storage temperature range for the VS-8EWS12STR-M3 is -40°C to 125°C.
-
Yes, the VS-8EWS12STR-M3 is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
-
The maximum operating voltage for the VS-8EWS12STR-M3 is 12V.
-
Yes, the VS-8EWS12STR-M3 is AEC-Q101 qualified, making it suitable for use in automotive applications.
-
The typical power dissipation for the VS-8EWS12STR-M3 is 1.5W.
