W25Q80DVSSIG Information
W25Q80DVSSIG by Winbond Electronics Corp is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for W25Q80DVSSIG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | Min Qty: 7 | 5047 |
|
$0.2003 / $0.7702 | Buy Now |
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
|
NAC | spiFlash, 8M-bit, 4Kb Uniform Sector, SOP8(208mil) Package RoHS: Compliant Min Qty: 90 Package Multiple: 90 | 0 |
|
$0.2900 / $0.3300 | Buy Now |
|
|
Chip Stock | NORFlashSerial(SPI,DualSPI,QuadSPI)3V/3.3V8M-bit1Mx86ns8-PinSOIC | 135800 |
|
RFQ | |
|
|
Win Source Electronics | IC FLASH 8MBIT 104MHZ 8SOIC / NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 8M-bit 1M x 8 6ns 8-Pin SOIC | 200000 |
|
$0.1715 / $0.2214 | Buy Now |
US Tariff Estimator: W25Q80DVSSIG by Winbond Electronics Corp
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for W25Q80DVSSIG
W25Q80DVSSIG CAD Models
-
Part Symbol
-

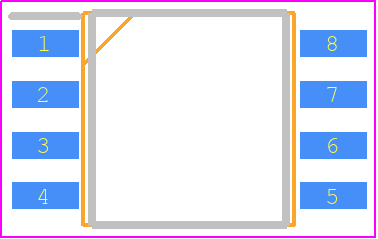

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
W25Q80DVSSIG Part Data Attributes
|
|
W25Q80DVSSIG
Winbond Electronics Corp
Buy Now
Datasheet
|
Compare Parts:
W25Q80DVSSIG
Winbond Electronics Corp
Flash, 8MX1, PDSO8, SOIC-8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | WINBOND ELECTRONICS CORP | |
| Package Description | SOP, SOP8,.3 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Samacsys Manufacturer | Winbond | |
| Clock Frequency-Max (fCLK) | 104 MHz | |
| Data Retention Time-Min | 20 | |
| Endurance | 100000 Write/Erase Cycles | |
| JESD-30 Code | S-PDSO-G8 | |
| Length | 5.23 mm | |
| Memory Density | 8388608 bit | |
| Memory IC Type | FLASH | |
| Memory Width | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 1048576 words | |
| Number of Words Code | 1000000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 1MX8 | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.3 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Programming Voltage | 3 V | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.16 mm | |
| Serial Bus Type | QSPI | |
| Standby Current-Max | 0.00006 A | |
| Supply Current-Max | 0.025 mA | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Type | NOR TYPE | |
| Width | 5.23 mm | |
| Write Protection | HARDWARE/SOFTWARE |
Alternate Parts for W25Q80DVSSIG
This table gives cross-reference parts and alternative options found for W25Q80DVSSIG. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of W25Q80DVSSIG, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| M25P80-VMW6TG | Micron Technology Inc | Check for Price | Flash, 8MX1, PDSO8, 0.208 INCH WIDTH, ROHS COMPLIANT, SOW-8 | W25Q80DVSSIG vs M25P80-VMW6TG |
| M25P80-VMW3TPB | Micron Technology Inc | Check for Price | Flash, 1MX8, PDSO8, SOP-8 | W25Q80DVSSIG vs M25P80-VMW3TPB |
| M25P80-VMW3P | Micron Technology Inc | Check for Price | Flash, 1MX8, PDSO8, SOP-8 | W25Q80DVSSIG vs M25P80-VMW3P |
| M25P80-VMW6TP | Micron Technology Inc | Check for Price | Flash, 1MX8, PDSO8, SOP-8 | W25Q80DVSSIG vs M25P80-VMW6TP |
| M25P80-VMW6T | Micron Technology Inc | Check for Price | Flash, 1MX8, PDSO8, 0.200 INCH, PLASTIC, SO-8 | W25Q80DVSSIG vs M25P80-VMW6T |
| M25P80-VMW3TP | Micron Technology Inc | Check for Price | Flash, 1MX8, PDSO8, SOP-8 | W25Q80DVSSIG vs M25P80-VMW3TP |
| M25P80-VMW6GBA | Micron Technology Inc | Check for Price | Flash, 1MX8, PDSO8, SOP-8 | W25Q80DVSSIG vs M25P80-VMW6GBA |
| M25P80-VMW6 | Micron Technology Inc | Check for Price | Flash, 1MX8, PDSO8, 0.200 INCH, PLASTIC, SO-8 | W25Q80DVSSIG vs M25P80-VMW6 |
| M25P80-VMW6TPBA | Micron Technology Inc | Check for Price | Flash, 1MX8, PDSO8, SOP-8 | W25Q80DVSSIG vs M25P80-VMW6TPBA |
| M25P80-VMW6PBA | Micron Technology Inc | Check for Price | Flash, 1MX8, PDSO8, SOP-8 | W25Q80DVSSIG vs M25P80-VMW6PBA |
W25Q80DVSSIG Frequently Asked Questions (FAQ)
-
The W25Q80DVSSIG supports up to 100,000 erase cycles.
-
The hold signal (HOLD#) should be kept low during a write operation to prevent any other operation from interrupting the write process.
-
The WP# (Write Protect) pin is used to prevent accidental writes to the device. To use it, connect WP# to VCC to enable write protection, or connect it to GND to disable write protection.
-
The W25Q80DVSSIG has a density of 8Mbits and is organized as 1024 sectors of 8192 bytes each.
-
The recommended power-up sequence is to apply VCC first, followed by the input signals (e.g., CLK, CS#, DIN, etc.).
