Part Details for WSHP2818R1000FEA by Vishay Intertechnologies
Results Overview of WSHP2818R1000FEA by Vishay Intertechnologies
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Smart Cities
WSHP2818R1000FEA Information
WSHP2818R1000FEA by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for WSHP2818R1000FEA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
08AJ1718
|
Newark | Res, 0R1, 10W, 2818, Metal Strip, Resistance:100Mohm, Product Range:Wshp2818 Series, Resistor Case/Package:2818 [7146 Metric], Power Rating:10W, Resistance Tolerance:± 1%, Resistor Technology:Metal Strip, Product Length:7.1Mm Rohs Compliant: Yes |Vishay WSHP2818R1000FEA RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 3080 |
|
$0.9940 / $1.9000 | Buy Now |
|
DISTI #
08AC0736
|
Newark | Res, 0R1, 10W, 2818, Metal Strip, Resistance:100Mohm, Product Range:Wshp2818 Series, Resistor Case/Package:2818 [7146 Metric], Power Rating:10W, Resistance Tolerance:± 1%, Resistor Technology:Metal Strip, Product Length:7.1Mm Rohs Compliant: Yes |Vishay WSHP2818R1000FEA RoHS: Compliant Min Qty: 3500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.6600 / $0.7790 | Buy Now |
|
DISTI #
WSHP2818R1000FEA
|
Avnet Americas | - Tape and Reel (Alt: WSHP2818R1000FEA) COO: United States of America (the) RoHS: Compliant Min Qty: 3500 Package Multiple: 3500 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$0.5976 / $0.7086 | Buy Now |
|
DISTI #
WSHP2818R1000FEA
|
IBS Electronics | SMD CURRENT SENSE RESISTOR 0.1 OHM WSHP2818 SERIES 2818 [7146 METRIC] 10 W ±, 1% METAL STRIP Min Qty: 3500 Package Multiple: 1 | 10500 |
|
$1.0500 | Buy Now |
|
DISTI #
WSHP2818R1000FEA
|
Avnet Abacus | (Alt: WSHP2818R1000FEA) RoHS: Compliant Min Qty: 3500 Package Multiple: 3500 Lead time: 9 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
US Tariff Estimator: WSHP2818R1000FEA by Vishay Intertechnologies
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for WSHP2818R1000FEA
WSHP2818R1000FEA CAD Models
-
Part Symbol
-

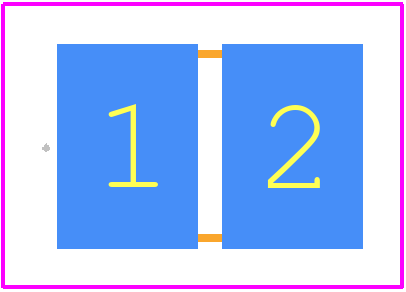

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
WSHP2818R1000FEA Part Data Attributes
|
|
WSHP2818R1000FEA
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
WSHP2818R1000FEA
Vishay Intertechnologies
Fixed Resistor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Chip | |
| Reach Compliance Code | Unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 6 Weeks | |
| Additional Feature | Anti-Sulfur | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | Surface Mount | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 170 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Height | 1.5 Mm | |
| Package Length | 7.1 Mm | |
| Package Style | Smt | |
| Package Width | 4.6 Mm | |
| Packing Method | Tr, Embossed Plastic, 13 Inch | |
| Rated Power Dissipation (P) | 10 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | Aec-Q200 | |
| Resistance | 0.1 Ω | |
| Resistor Type | Fixed Resistor | |
| Size Code | 2818 | |
| Surface Mount | Yes | |
| Technology | Metal Strip | |
| Temperature Coefficient | 75 Ppm/°C | |
| Terminal Finish | Tin (Sn) | |
| Terminal Shape | Wraparound | |
| Tolerance | 1% | |
| Working Voltage | 1 V |
WSHP2818R1000FEA Frequently Asked Questions (FAQ)
-
A recommended PCB layout for optimal thermal performance would be to have a large copper area on the bottom layer of the PCB, connected to the thermal pad of the WSHP2818R1000FEA. This helps to dissipate heat efficiently.
-
To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the pads. Avoid applying excessive force or pressure during soldering, as this can damage the component.
-
The recommended storage condition for the WSHP2818R1000FEA is in a dry, cool place, away from direct sunlight and moisture. The storage temperature should be between -40°C to 125°C, and the humidity should be below 60%.
-
Yes, the WSHP2818R1000FEA is suitable for high-reliability applications. It is built with high-quality materials and has undergone rigorous testing to ensure its reliability and performance.
-
To prevent ESD damage, handle the WSHP2818R1000FEA with anti-static wrist straps, mats, or other ESD protection devices. Avoid touching the component's pins or leads, and store the component in an anti-static bag or container.
