XAL7030-332MEC Information
XAL7030-332MEC by Coilcraft Inc is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for XAL7030-332MEC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2289111
|
Farnell | INDUCTOR, 3.3UH, 10A, 20%, PWR, 29MHZ COO: CN RoHS: Compliant Min Qty: 1 Lead time: 14 Weeks, 1 Days Container: Cut Tape | 757 |
|
$1.4870 / $3.0660 | Buy Now |
|
DISTI #
2289111RL
|
Farnell | INDUCTOR, 3.3UH, 10A, 20%, PWR, 29MHZ COO: CN RoHS: Compliant Min Qty: 100 Lead time: 14 Weeks, 1 Days Container: Reel | 757 |
|
$1.4870 / $1.6317 | Buy Now |
|
|
Bristol Electronics | 107 |
|
RFQ | ||
|
|
Coilcraft Direct | Power inductor, shielded, 20% tol, SMT, RoHS, halogen-free RoHS: Compliant pbFree: No Min Qty: 1 | 12421 |
|
$0.7300 / $2.7100 | Buy Now |
|
|
LCSC | 3.3uH 20% SMD7.5x7.5mm Fixed Inductors RoHS | 187 |
|
$0.9888 / $1.6784 | Buy Now |
|
DISTI #
XAL7030-332MEC
|
Maritex | Power Inductors – SMD, COILCRAFT, XAL7030-332MEC, 3.3 µH, 21.45 mOhm, 100 kHz, 20 % Min Qty: 1 Package Multiple: 1 | 28000 |
|
$1.0730 | Buy Now |
US Tariff Estimator: XAL7030-332MEC by Coilcraft Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for XAL7030-332MEC
XAL7030-332MEC CAD Models
-
Part Symbol
-

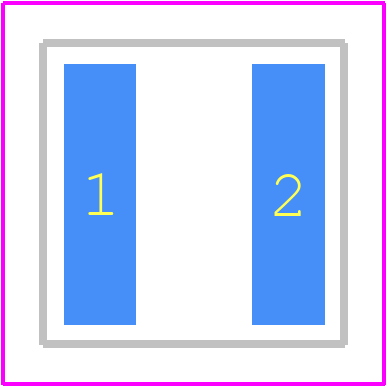

Footprint
-

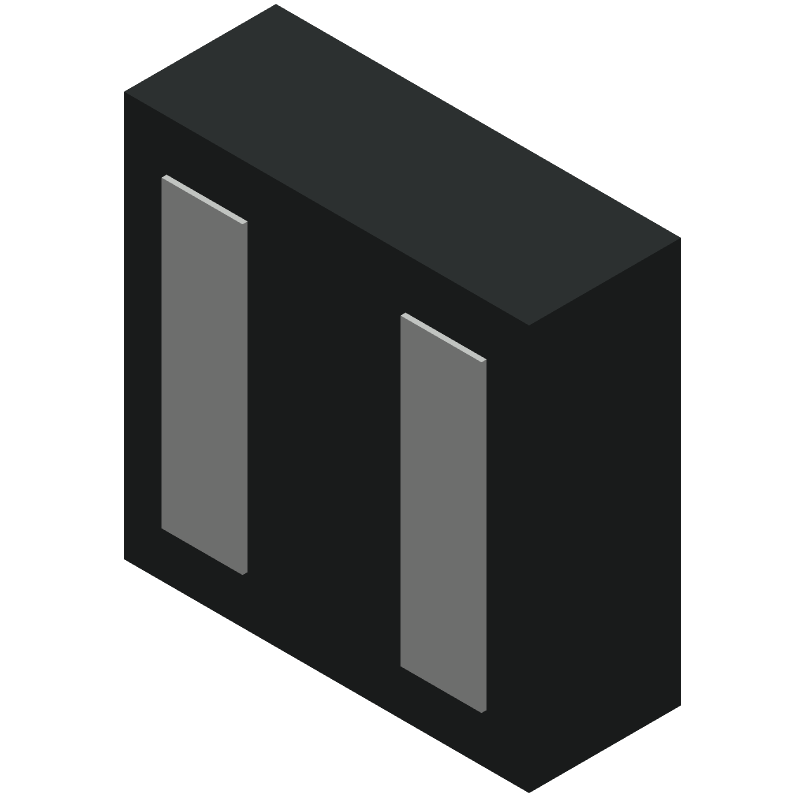

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
XAL7030-332MEC Part Data Attributes
|
|
XAL7030-332MEC
Coilcraft Inc
Buy Now
Datasheet
|
Compare Parts:
XAL7030-332MEC
Coilcraft Inc
General Purpose Inductor, 3.3uH, 20%, 1 Element, Composite-Core, SMD, 3030, CHIP, 3030, HALOGEN FREE AND ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | COILCRAFT INC | |
| Package Description | CHIP | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Samacsys Manufacturer | COILCRAFT | |
| Case/Size Code | 3030 | |
| Construction | Rectangular | |
| Core Material | COMPOSITE | |
| DC Resistance | 0.02145 Ω | |
| Inductance-Nom (L) | 3.3 µH | |
| Inductor Application | POWER INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| JESD-609 Code | e2 | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 3.1 mm | |
| Package Length | 7.5 mm | |
| Package Style | SMT | |
| Package Width | 7.5 mm | |
| Packing Method | TR, Embossed Plastic, 7 Inch | |
| Rated Current-Max | 10 A | |
| Reference Standard | AEC-Q200 | |
| Self Resonance Frequency | 25 MHz | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | YES | |
| Surface Mount | YES | |
| Terminal Finish | Tin/Silver (Sn96.5Ag3.5) | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | ONE SURFACE | |
| Test Frequency | 1 MHz | |
| Tolerance | 20% |
