XC2C32A-6VQG44C Information

XC2C32A-6VQG44C by AMD is a Programmable Logic Device.
Programmable Logic Devices are under the broader part category of Programmable Logic Devices.

Programmable Logic Devices (PLDs) are reconfigurable digital components that can be customized for different applications, offering flexibility and improved performance over fixed logic devices. Read more about Programmable Logic Devices on our Programmable Logic part category page.

Part #	Distributor	Description	Stock	Price	Buy
XC2C32A-6VQG44C	Chip Stock	CPLDCoolRunner-IIFamily750Gates32MacroCells200MHz0.18um(CMOS)Technology1.8V44-PinVTQFP	20121			RFQ

US Tariff Estimator: XC2C32A-6VQG44C by AMD

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

Part Number: XC2C32A-6VQG44C

Manufacturer: AMD

COO:

HTS Code:

Import Value:

Estimator Results:

		Tariff Calculation
	Import Value	$.
	Total Duty	$.
	Total Estimate	$.
		$.
Based on tariff data from

Part Details for XC2C32A-6VQG44C

XC2C32A-6VQG44C CAD Models

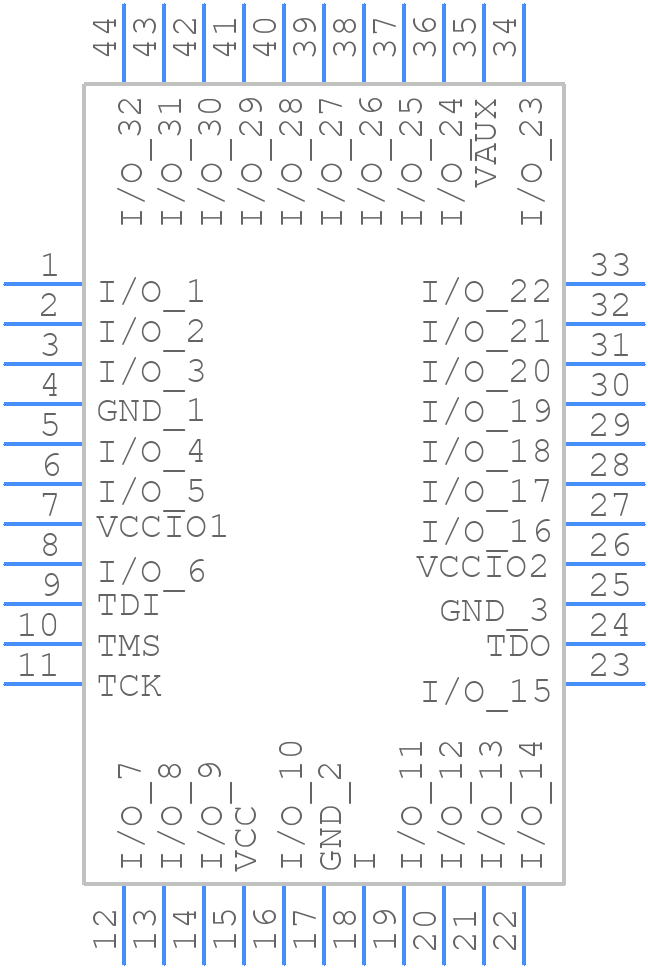

Part Symbol

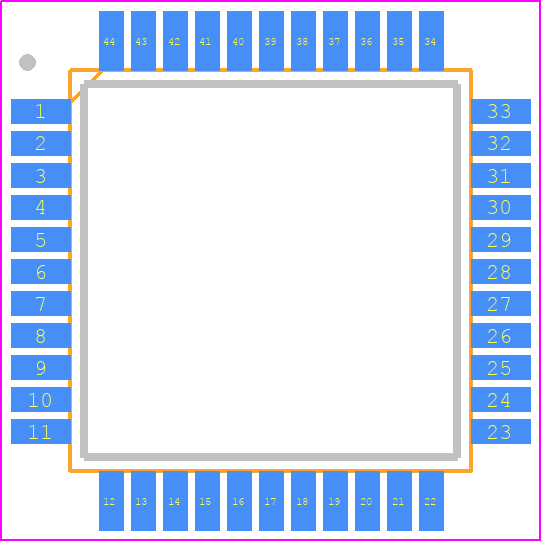

Footprint
3D Model

Available Download Formats

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

XC2C32A-6VQG44C Part Data Attributes

Parametric Data

Show differences only	XC2C32A-6VQG44C AMD Buy Now Datasheet	Buy Now	Compare Parts: XC2C32A-6VQG44C AMD Flash PLD, 6ns, 32-Cell, CMOS, PQFP44, 10 X 10 MM, 0.80 MM PITCH, LEAD FREE, VQFP-44

Rohs Code	Yes
Part Life Cycle Code	Obsolete
Package Description	10 X 10 Mm, 0.80 Mm Pitch, Lead Free, Vqfp-44
Reach Compliance Code	Compliant
HTS Code	8542.39.00.01
Additional Feature	Real Digital Design Technology
Clock Frequency-Max	300 Mhz
In-System Programmable	Yes
JESD-30 Code	S-PQFP-G44
JESD-609 Code	e3
JTAG BST	Yes
Length	10 Mm
Moisture Sensitivity Level	3
Number of I/O Lines	33
Number of Macro Cells	32
Number of Terminals	44
Operating Temperature-Max	70 °C
Operating Temperature-Min
Organization	33 I/O
Output Function	Macrocell
Package Body Material	Plastic/Epoxy
Package Code	TQFP
Package Equivalence Code	LCC32,.2SQ,20
Package Shape	Square
Package Style	Flatpack, Thin Profile
Peak Reflow Temperature (Cel)	260
Programmable Logic Type	Flash Pld
Propagation Delay	6 Ns
Qualification Status	Not Qualified
Seated Height-Max	1.2 Mm
Supply Voltage-Max	1.9 V
Supply Voltage-Min	1.7 V
Supply Voltage-Nom	1.8 V
Surface Mount	Yes
Technology	Cmos
Temperature Grade	Commercial
Terminal Finish	Matte Tin
Terminal Form	Gull Wing
Terminal Pitch	0.8 Mm
Terminal Position	Quad
Time@Peak Reflow Temperature-Max (s)	30
Width	10 Mm

Alternate Parts for XC2C32A-6VQG44C

This table gives cross-reference parts and alternative options found for XC2C32A-6VQG44C. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of XC2C32A-6VQG44C, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number	Manufacturer	Composite Price	Description	Compare
XC2C32A-6VQ44C	AMD	Check for Price	Flash PLD, 6ns, 32-Cell, CMOS, PQFP44, 10 X 10 MM, 0.80 MM PITCH, VQFP-44	XC2C32A-6VQG44C vs XC2C32A-6VQ44C

Part Number	Manufacturer	Composite Price	Description	Compare
XC2C32A-4VQG44C	AMD Xilinx	$2.6900	Flash PLD, 4ns, 32-Cell, CMOS, PQFP44, 10 X 10 MM, 0.80 MM PITCH, LEAD FREE, VQFP-44	XC2C32A-6VQG44C vs XC2C32A-4VQG44C
XC2C32A-6QFG32C	AMD Xilinx	Check for Price	Flash PLD, 6ns, 32-Cell, CMOS, PDSO32, 5 X 5 MM, 0.50 MM PITCH, LEAD FREE, QFN-32	XC2C32A-6VQG44C vs XC2C32A-6QFG32C
XC2C32A-6QFG32C	AMD	Check for Price	Flash PLD, 6ns, 32-Cell, CMOS, PDSO32, 5 X 5 MM, 0.50 MM PITCH, LEAD FREE, QFN-32	XC2C32A-6VQG44C vs XC2C32A-6QFG32C
XC2C32A-4VQ44C	AMD	Check for Price	Flash PLD, 4ns, 32-Cell, CMOS, PQFP44, 10 X 10 MM, 0.80 MM PITCH, VQFP-44	XC2C32A-6VQG44C vs XC2C32A-4VQ44C
XC2C32A-6VQ44I	AMD	Check for Price	Flash PLD, 6ns, 32-Cell, CMOS, PQFP44, 10 X 10 MM, 0.80 MM PITCH, VQFP-44	XC2C32A-6VQG44C vs XC2C32A-6VQ44I
XC2C32A-6QFG32I	AMD Xilinx	Check for Price	Flash PLD, 6ns, 32-Cell, CMOS, PDSO32, 5 X 5 MM, 0.50 MM PITCH, LEAD FREE, QFN-32	XC2C32A-6VQG44C vs XC2C32A-6QFG32I
XC2C32A-6QFG32I	AMD	Check for Price	Flash PLD, 6ns, 32-Cell, CMOS, PDSO32, 5 X 5 MM, 0.50 MM PITCH, LEAD FREE, QFN-32	XC2C32A-6VQG44C vs XC2C32A-6QFG32I
XC2C32A-4VQG44C	AMD	Check for Price	Flash PLD, 4ns, 32-Cell, CMOS, PQFP44, 10 X 10 MM, 0.80 MM PITCH, LEAD FREE, VQFP-44	XC2C32A-6VQG44C vs XC2C32A-4VQG44C
XC2C32-6PCG44I	AMD Xilinx	Check for Price	Flash PLD, 6ns, 32-Cell, CMOS, PQCC44, 16.50 X 16.50 MM, 1.27 MM PITCH, PLASTIC, LCC-44	XC2C32A-6VQG44C vs XC2C32-6PCG44I
XC2C32-4PCG44I	AMD Xilinx	Check for Price	Flash PLD, 4.5ns, CMOS, PQCC44, 17.50 X 17.50 MM, 1.27 MM PITCH, PLASTIC, LCC-44	XC2C32A-6VQG44C vs XC2C32-4PCG44I

XC2C32A-6VQG44C Frequently Asked Questions (FAQ)

The maximum operating frequency of the XC2C32A-6VQG44C is 160 MHz.
To implement a CDC in the XC2C32A-6VQG44C, use a synchronizer circuit or a FIFO-based CDC to ensure data integrity and prevent metastability issues.
The power consumption of the XC2C32A-6VQG44C depends on the operating frequency, voltage, and usage. Typically, it ranges from 100-300 mW.
No, the XC2C32A-6VQG44C is not a radiation-hardened device. It is not designed to withstand high levels of radiation and is not suitable for space or high-reliability applications.
To optimize the XC2C32A-6VQG44C for low power consumption, use power-saving features like clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS).
