XCKU11P-1FFVE1517E Information
XCKU11P-1FFVE1517E by AMD is a Field Programmable Gate Array.
Field Programmable Gate Arrays are under the broader part category of Programmable Logic Devices.
Programmable Logic Devices (PLDs) are reconfigurable digital components that can be customized for different applications, offering flexibility and improved performance over fixed logic devices. Read more about Programmable Logic Devices on our Programmable Logic part category page.
Price & Stock for XCKU11P-1FFVE1517E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
17AH9490
|
Newark | Fpga, 653100 Logic Cells, Fcbga-1517, Fpga Type:-, No. Of Logic Cells:653100Logic Cells, Ic Case/Package:Fcbga, No. Of Pins:1517Pins, Speed Grade:1, No.of User I/Os:512I/O S, Process Technology:-, Ic Mounting:Surface Mount Rohs Compliant: Yes |Amd XCKU11P-1FFVE1517E RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$3,901.5601 | Buy Now |
|
DISTI #
XCKU11P-1FFVE1517E
|
Avnet Americas | FPGA Kintex UltraScale+ Family 653100 Cells 20nm 0.85V 1517-Pin FCBGA Tray - Trays (Alt: XCKU11P-1FFVE1517E) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 0 Days Container: Tray | 0 |
|
$3,774.6800 | Buy Now |
|
DISTI #
XCKU11P-1FFVE1517E
|
Avnet Americas | FPGA Kintex UltraScale+ Family 653100 Cells 20nm 0.85V 1517-Pin FCBGA Tray - Trays (Alt: XCKU11P-1FFVE1517E) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 0 Days Container: Tray | 0 |
|
$3,774.6800 | Buy Now |
|
|
Chip Stock | FPGAKintexUltraScale+Family653100Cells20nm0.85V1517-PinFCBGATray | 838 |
|
RFQ |
US Tariff Estimator: XCKU11P-1FFVE1517E by AMD
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for XCKU11P-1FFVE1517E
XCKU11P-1FFVE1517E CAD Models
-
Part Symbol
-

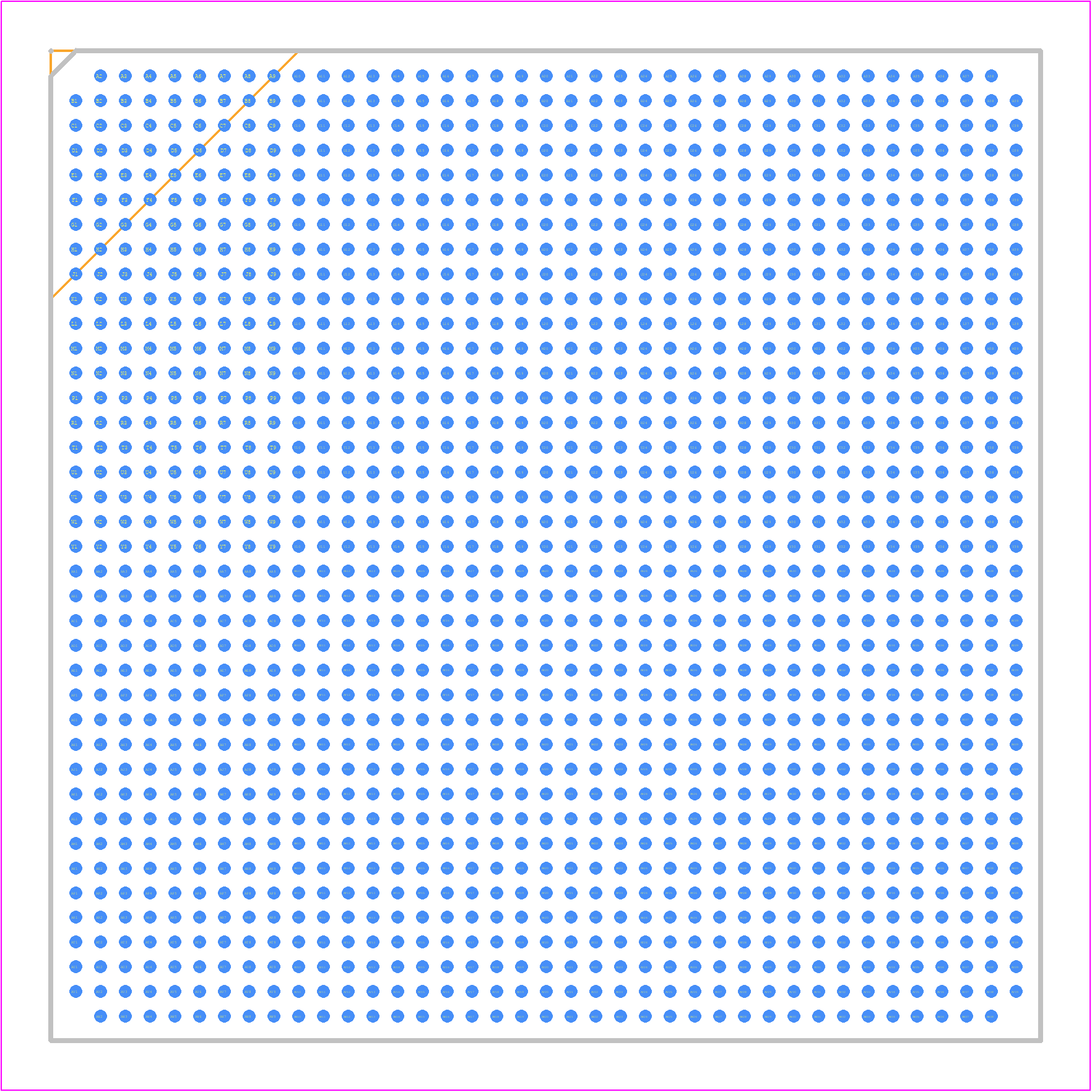

Footprint
-
