Findchips: XCVU9P-2FLGB2104I details by AMD

Results Overview of XCVU9P-2FLGB2104I by AMD

Distributor Offerings: (5 listings)
Number of FFF Equivalents: (2 replacements)
Tariff Estimator: (Available) NEW
Number of Functional Equivalents: (10 options)
CAD Models: (Available)
Part Data Attributes: (Available)
Reference Designs: (Not Available)

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

XCVU9P-2FLGB2104I Information

XCVU9P-2FLGB2104I by AMD is a Field Programmable Gate Array.
Field Programmable Gate Arrays are under the broader part category of Programmable Logic Devices.

Programmable Logic Devices (PLDs) are reconfigurable digital components that can be customized for different applications, offering flexibility and improved performance over fixed logic devices. Read more about Programmable Logic Devices on our Programmable Logic part category page.

Part #	Distributor	Description	Stock	Price	Buy
XCVU9P-2FLGB2104I DISTI # 47AC6402	Newark	Fpga, 2586150 Logic Cells, Fcbga-2104, Fpga Type:-, No. Of Logic Cells:2586150Logic Cells, Ic Case/Package:Fcbga, No. Of Pins:2104Pins, Speed Grade:2, No.of User I/Os:778I/O S, Process Technology:-, Ic Mounting:Surface Mount, Msl:-Rohs Compliant: Yes \|Amd XCVU9P-2FLGB2104I RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk	0	1 $61,010.3281	$61,010.3281	Buy Now
XCVU9P-2FLGB2104I DISTI # XCVU9P-2FLGB2104I	Avnet Americas	FPGA, Virtex UltraScale, MMCM, PLL, 778 I/O's, 725 MHz, 2586150 Cells, 922-979 mV, FCBGA-2104, NCNR - Trays (Alt: XCVU9P-2FLGB2104I) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks, 0 Days Container: Tray	0	1 $61,444.4600	$61,444.4600	Buy Now
XCVU9P-2FLGB2104I DISTI # XCVU9P-2FLGB2104I	Avnet Americas	FPGA, Virtex UltraScale, MMCM, PLL, 778 I/O's, 725 MHz, 2586150 Cells, 922-979 mV, FCBGA-2104, NCNR - Trays (Alt: XCVU9P-2FLGB2104I) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks, 0 Days Container: Tray	0	1 $61,444.4600	$61,444.4600	Buy Now
XCVU9P-2FLGB2104I	Chip Stock	FPGAVirtexUltraScale+Family2586150Cells20nmTechnology0.95V2104-PinFCBGATray	525			RFQ
XCVU9P-2FLGB2104I	Win Source Electronics	IC FPGA 702 I/O 2104FCBGA / series Field Programmable Gate Array (FPGA) IC 702 391168000 2586150 2104-BBGA, FCBGA	400	1 $1,053.1648	$1,053.1648	Buy Now

US Tariff Estimator: XCVU9P-2FLGB2104I by AMD

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

Part Number: XCVU9P-2FLGB2104I

Manufacturer: AMD

COO:

HTS Code:

Import Value:

Estimator Results:

		Tariff Calculation
	Import Value	$.
	Total Duty	$.
	Total Estimate	$.
		$.
Based on tariff data from

Part Details for XCVU9P-2FLGB2104I

XCVU9P-2FLGB2104I CAD Models

Part Symbol

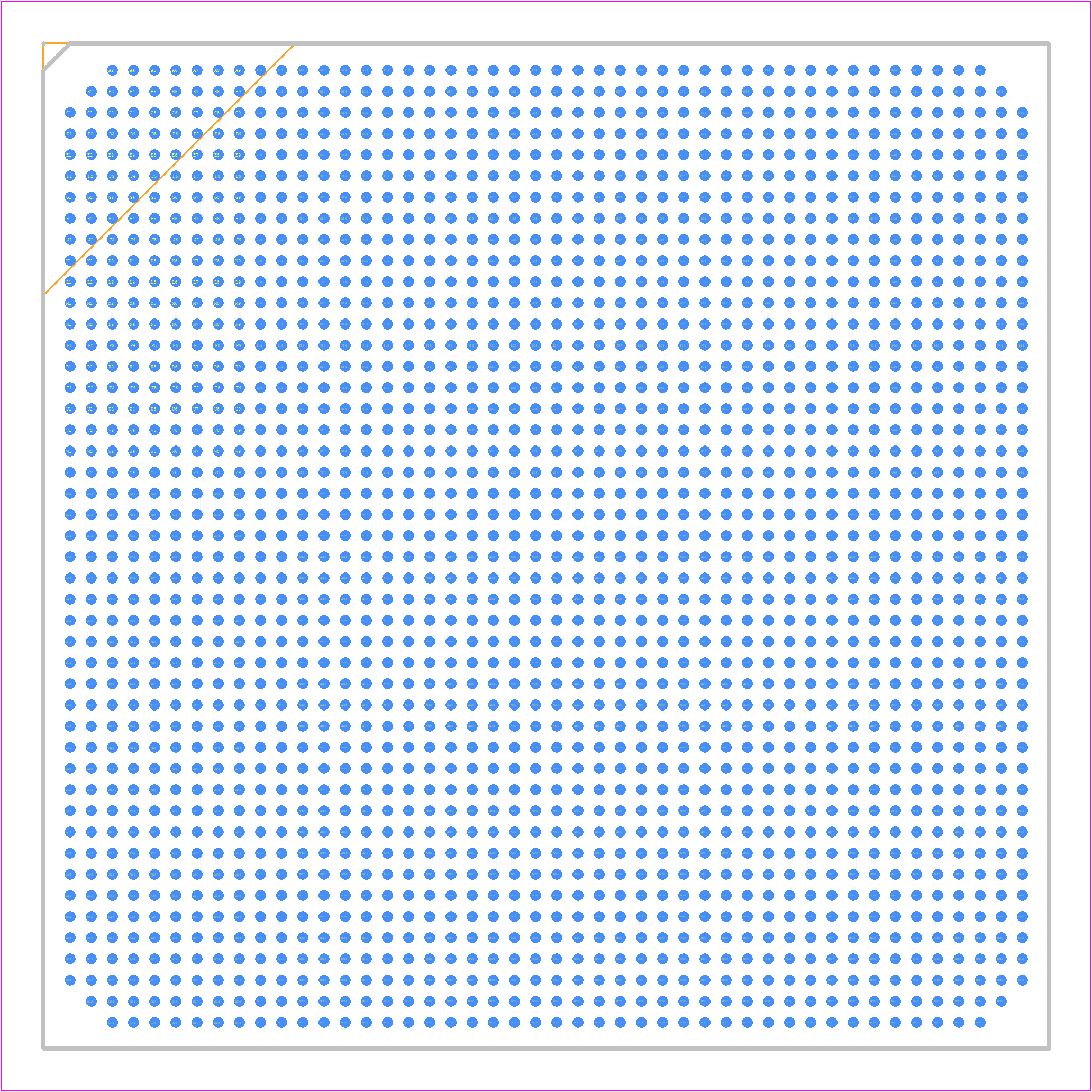

Footprint

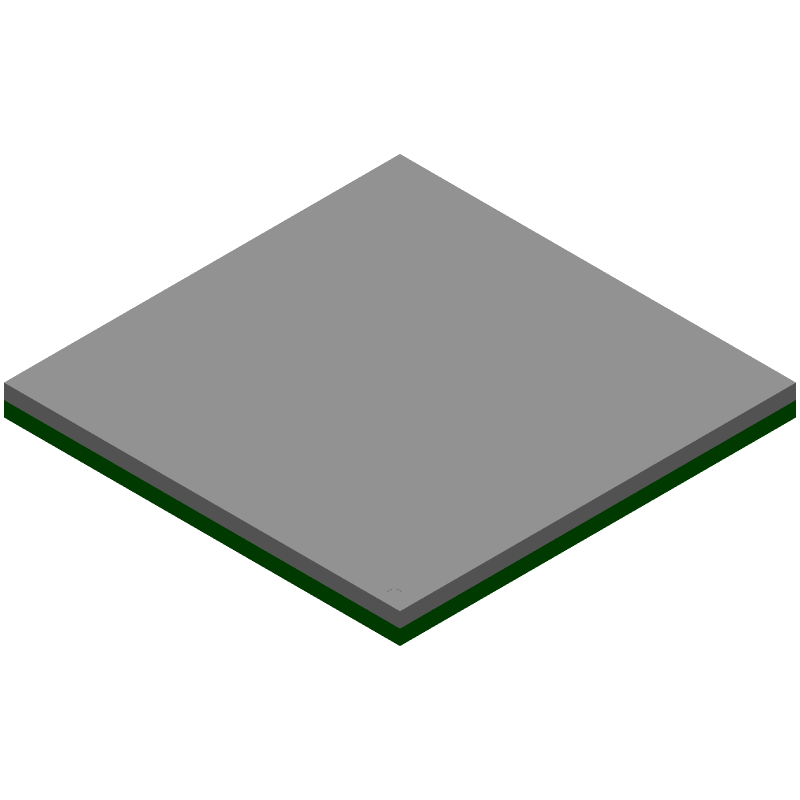

3D Model

Available Download Formats

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

XCVU9P-2FLGB2104I Part Data Attributes

Parametric Data

Show differences only	XCVU9P-2FLGB2104I AMD Buy Now Datasheet	Buy Now	Compare Parts: XCVU9P-2FLGB2104I AMD Field Programmable Gate Array, 2586150-Cell, PBGA2104,

Rohs Code	Yes
Part Life Cycle Code	Active
Package Description	Bga-2104
Reach Compliance Code	Not Compliant
HTS Code	8542.39.00.01
Factory Lead Time	20 Weeks
JESD-30 Code	S-PBGA-B2104
JESD-609 Code	e1
Length	47.5 Mm
Moisture Sensitivity Level	4
Number of CLBs	147780
Number of Inputs	832
Number of Logic Cells	2586150
Number of Outputs	832
Number of Terminals	2104
Operating Temperature-Max	100 °C
Operating Temperature-Min	-40 °C
Organization	147780 Clbs
Package Body Material	Plastic/Epoxy
Package Code	BGA
Package Equivalence Code	BGA2104,46X46,40
Package Shape	Square
Package Style	Grid Array
Peak Reflow Temperature (Cel)	245
Programmable Logic Type	Field Programmable Gate Array
Seated Height-Max	4.32 Mm
Supply Voltage-Max	0.876 V
Supply Voltage-Min	0.825 V
Supply Voltage-Nom	0.85 V
Surface Mount	Yes
Temperature Grade	Industrial
Terminal Finish	Tin Silver Copper
Terminal Form	Ball
Terminal Pitch	1 Mm
Terminal Position	Bottom
Time@Peak Reflow Temperature-Max (s)	30
Width	47.5 Mm

Alternate Parts for XCVU9P-2FLGB2104I

This table gives cross-reference parts and alternative options found for XCVU9P-2FLGB2104I. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of XCVU9P-2FLGB2104I, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number	Manufacturer	Composite Price	Description	Compare
XCVU9P-2FLGB2104I	AMD Xilinx	Check for Price	Field Programmable Gate Array,	XCVU9P-2FLGB2104I vs XCVU9P-2FLGB2104I
XCVU9P-2FLGB2104E	AMD Xilinx	Check for Price	Field Programmable Gate Array,	XCVU9P-2FLGB2104I vs XCVU9P-2FLGB2104E

Part Number	Manufacturer	Composite Price	Description	Compare
XCVU9P-2FLGB2104E	AMD	$41,695.7009	Field Programmable Gate Array, 2586150-Cell, PBGA2104,	XCVU9P-2FLGB2104I vs XCVU9P-2FLGB2104E
XCVU9P-2FSGD2104E	AMD	$41,695.7009	Field Programmable Gate Array, 2586150-Cell, PBGA2104,	XCVU9P-2FLGB2104I vs XCVU9P-2FSGD2104E
XCVU9P-2LFLGB2104E	AMD	Check for Price	Field Programmable Gate Array,	XCVU9P-2FLGB2104I vs XCVU9P-2LFLGB2104E
XCVU9P-2LFLGC2104E	AMD Xilinx	Check for Price	Field Programmable Gate Array,	XCVU9P-2FLGB2104I vs XCVU9P-2LFLGC2104E
XCVU9P-2LFLGA2577E	AMD Xilinx	Check for Price	Field Programmable Gate Array,	XCVU9P-2FLGB2104I vs XCVU9P-2LFLGA2577E
XCVU9P-2LFLGB2104E	AMD Xilinx	Check for Price	Field Programmable Gate Array,	XCVU9P-2FLGB2104I vs XCVU9P-2LFLGB2104E
XCVU9P-2LFLGA2104E	AMD	Check for Price	Field Programmable Gate Array,	XCVU9P-2FLGB2104I vs XCVU9P-2LFLGA2104E
XCVU9P-2LFSGD2104E	AMD Xilinx	Check for Price	Field Programmable Gate Array,	XCVU9P-2FLGB2104I vs XCVU9P-2LFSGD2104E
XCVU9P-2FLGC2104E	AMD	Check for Price	Field Programmable Gate Array, 2586150-Cell, PBGA2104,	XCVU9P-2FLGB2104I vs XCVU9P-2FLGC2104E
XCVU9P-2LFLGA2577E	AMD	Check for Price	Field Programmable Gate Array,	XCVU9P-2FLGB2104I vs XCVU9P-2LFLGA2577E

XCVU9P-2FLGB2104I Frequently Asked Questions (FAQ)

The maximum power consumption of the XCVU9P-2FLGB2104I is approximately 25W, but this can vary depending on the specific application and usage.
To implement a DDR4 memory interface on the XCVU9P-2FLGB2104I, you can use the MIG (Memory Interface Generator) IP core provided by AMD, which supports DDR4 memory interfaces up to 2400 MT/s.
The XCVU9P-2FLGB2104I supports clock frequencies up to 500 MHz, but this can vary depending on the specific application and usage.
To optimize power consumption on the XCVU9P-2FLGB2104I, you can use various techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS), as well as using the AMD-provided power optimization tools and IP cores.
The XCVU9P-2FLGB2104I supports PCIe Gen3 x16, which provides a maximum bandwidth of 9850 MB/s.
