Connectors / Headers and Edge Type Connectors / XHP-7
Datasheets

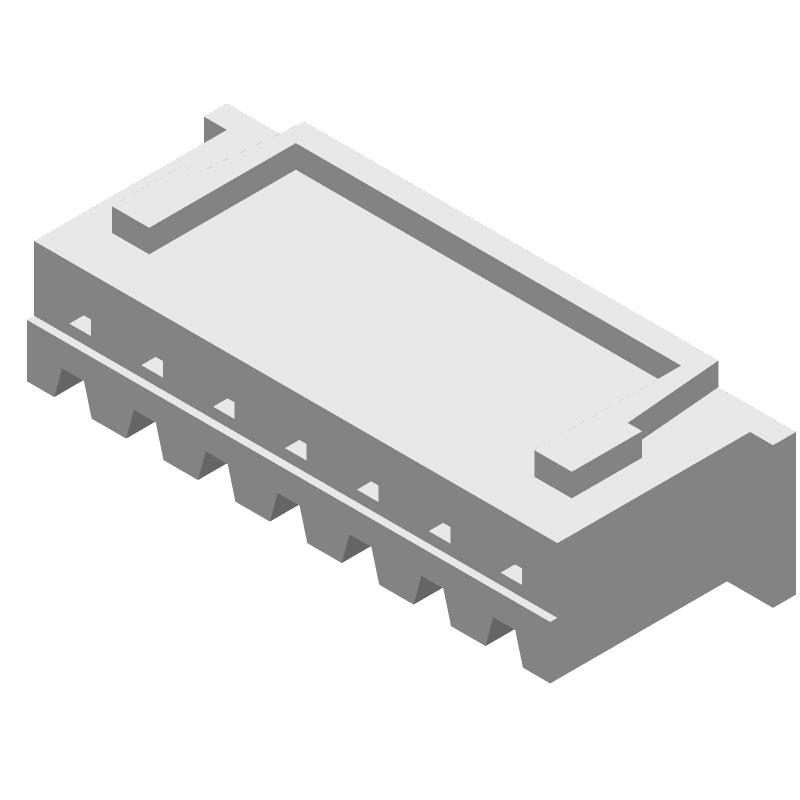

XHP-7 by:
JST Manufacturing

Board Connector, 7 Contact(s), 1 Row(s), Female, Crimp Terminal, Receptacle, ROHS COMPLIANT

Part Details for XHP-7 by JST Manufacturing

Results Overview of XHP-7 by JST Manufacturing

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Energy and Power Systems Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Automotive Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

XHP-7 Information

XHP-7 by JST Manufacturing is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for XHP-7

Part # Distributor Description Stock Price Buy
DISTI # 74M5182
Newark Wire To Board Connector, Receptacle, 7 Position, 1Row, Product Range:Xh Series, Gender:Receptacle, No. Of Positions:7Positions, Pitch Spacing:2.5Mm, For Use With:Sxh Crimp Contacts, Connector Type:Wire To Board Rohs Compliant: Yes |Jst/japan Solderless Terminals XHP-7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 57452
  • 1 $0.0390
  • 10 $0.0390
  • 25 $0.0390
  • 50 $0.0390
  • 100 $0.0390
  • 250 $0.0390
  • 500 $0.0390
  • 1,000 $0.0390
$0.0390 Buy Now
DISTI # JSTXHP-7
Heilind Electronics 'XH'CONNECTOR Americas - 26102 in Stock
  • 1 $0.0568
  • 3,300 $0.0495
  • 8,200 $0.0472
  • 16,400 $0.0458
  • 32,700 $0.0445
$0.0445 / $0.0568 Buy Now
Bristol Electronics   920
RFQ
DISTI # XHP-7
TME Connector: wire-board, plug, female, PIN: 7, XH, 3A, 250V, for cable Min Qty: 1 4183
  • 1 $0.1000
  • 10 $0.0740
  • 25 $0.0672
  • 50 $0.0618
  • 100 $0.0562
  • 200 $0.0509
  • 250 $0.0492
  • 500 $0.0440
  • 1,000 $0.0386
  • 10,000 $0.0349
$0.0349 / $0.1000 Buy Now
DISTI # XHP-7
Chip One Stop Interconnects RoHS: Compliant pbFree: Yes Min Qty: 10 Lead time: 0 Weeks, 1 Days Container: Bulk 17701
  • 10 $0.0693
  • 100 $0.0588
  • 200 $0.0562
  • 500 $0.0525
  • 1,000 $0.0500
  • 2,000 $0.0499
  • 4,000 $0.0463
  • 8,000 $0.0452
  • 16,000 $0.0444
  • 64,000 $0.0421
$0.0421 / $0.0693 Buy Now
Component Electronics, Inc MISC CONN PLAS WHT 350
  • 1 $0.1900
  • 100 $0.1400
  • 1,000 $0.1300
$0.1300 / $0.1900 Buy Now
LCSC 2.5mm 1 XH -25+85 7 Non-Latching P2.5mm Rectangular Connector Housings RoHS 14000
  • 20 $0.0260
  • 200 $0.0208
  • 1,000 $0.0164
  • 2,000 $0.0148
  • 10,000 $0.0132
  • 20,000 $0.0124
$0.0124 / $0.0260 Buy Now

US Tariff Estimator: XHP-7 by JST Manufacturing

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

XHP-7
JST Manufacturing
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for XHP-7

XHP-7 Part Data Attributes

Parametric Data
XHP-7 JST Manufacturing
Buy Now Datasheet
Compare Parts:
XHP-7 JST Manufacturing Board Connector, 7 Contact(s), 1 Row(s), Female, Crimp Terminal, Receptacle, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer J S T MFG CO LTD
Reach Compliance Code Unknown
ECCN Code EAR99
HTS Code 8536.69.40.40
Samacsys Manufacturer JST (JAPAN SOLDERLESS TERMINALS)
Additional Feature COMPATIBLE CONTACT: SXH-001T-P0.6; SXH-002T-P0.6
Body Breadth 0.224 inch
Body Depth 0.305 inch
Body Length 0.78 inch
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Design STRIP OR LOOSE
Contact Finish Mating NOT SPECIFIED
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance 20 mΩ
Contact Style SQ PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage 1000VAC V
Filter Feature NO
IEC Conformance NO
Insulation Diameter-Min 0.035 inch
Insulation Resistance 1000000000 Ω
Insulator Color WHITE
Insulator Material POLYAMIDE6
MIL Conformance NO
Mating Contact Pitch 0.098 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type CABLE
Number Of Connectors ONE
Number of Rows Loaded 1
Operating Temperature-Max 85 °C
Operating Temperature-Min -25 °C
Option GENERAL PURPOSE
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 3 A
Reference Standard UL
Termination Type CRIMP
Total Number of Contacts 7
UL Flammability Code 94V-0
Wire Size-Max 22 AWG
Wire Size-Min 30 AWG

Alternate Parts for XHP-7

This table gives cross-reference parts and alternative options found for XHP-7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of XHP-7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
W-A2507-IN SMK Corporation Check for Price Board Connector, 7 Contact(s), 1 Row(s), Female, Crimp Terminal, Socket, XHP-7 vs W-A2507-IN
W-D3407-1N#01 SMK Corporation Check for Price Board Connector, 7 Contact(s), 1 Row(s), Female, Crimp Terminal, LEAD FREE XHP-7 vs W-D3407-1N#01
201F07D03L ITW McMurdo Connectors Check for Price Board Connector, 7 Contact(s), 1 Row(s), Female, Crimp Terminal, XHP-7 vs 201F07D03L
FCN-723J007/1M FUJITSU Component Ltd Check for Price Board Connector, 7 Contact(s), 1 Row(s), Female, Crimp Terminal, Socket XHP-7 vs FCN-723J007/1M
XNIRP-07V-A-S JST Manufacturing Check for Price Board Connector, 7 Contact(s), 1 Row(s), Female, Crimp Terminal, ROHS COMPLIANT XHP-7 vs XNIRP-07V-A-S
H7P-SHF-AA JST Manufacturing Check for Price Board Connector, 7 Contact(s), 1 Row(s), Female, Crimp Terminal, Receptacle, ROHS COMPLIANT XHP-7 vs H7P-SHF-AA
HRP-07-S JST Manufacturing Check for Price Board Connector, 7 Contact(s), 1 Row(s), Female, Crimp Terminal, ROHS COMPLIANT XHP-7 vs HRP-07-S
M20-1040700 Harwin Check for Price Board Connector, 7 Contact(s), 1 Row(s), Female, Crimp Terminal, Socket XHP-7 vs M20-1040700
RMTV1-07SHY0102 ITT Interconnect Solutions Check for Price Board Connector, 7 Contact(s), 1 Row(s), Female, Crimp Terminal, Socket, ROHS COMPLIANT XHP-7 vs RMTV1-07SHY0102
PHNR-07C-H JST Manufacturing Check for Price Board Connector, 7 Contact(s), 1 Row(s), Female, Crimp Terminal XHP-7 vs PHNR-07C-H
equivalents icon

XHP-7 Related Parts

XHP-7 Frequently Asked Questions (FAQ)

  • The recommended torque value for XHP-7 connectors is 0.5-1.5 N·m (4.4-13.4 in·lb).

  • Yes, XHP-7 connectors are designed to withstand high-vibration environments and are suitable for applications with intense vibrations.

  • Yes, XHP-7 connectors are designed to operate in harsh environments, including high temperatures (up to 125°C) and high humidity (up to 95% RH).

  • The maximum current rating for XHP-7 connectors is 3A per contact.

  • Yes, XHP-7 connectors are designed for automated assembly and inspection systems, making them suitable for high-volume production.
