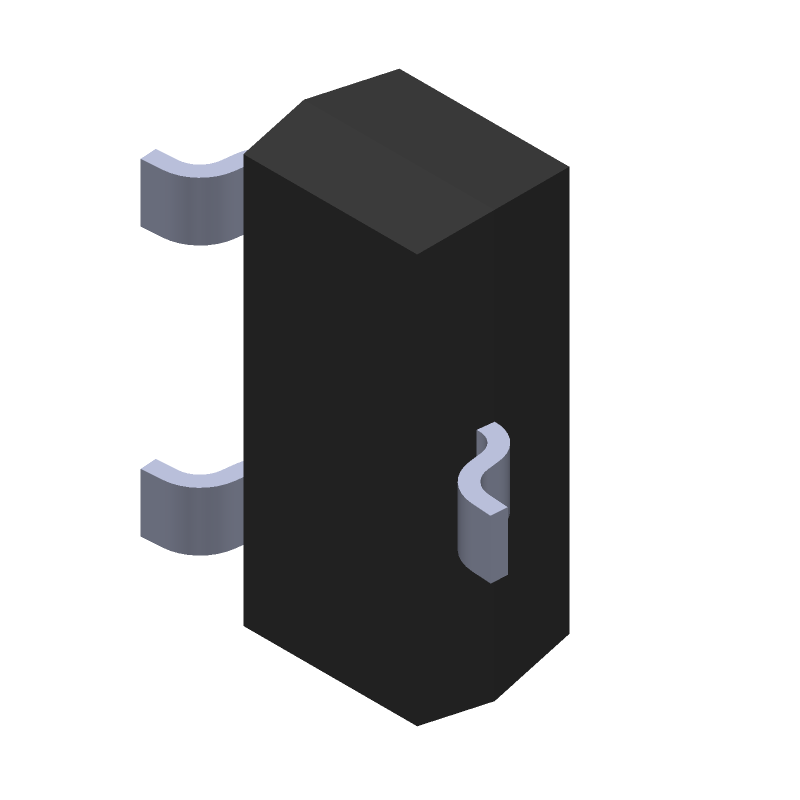

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ZXMN3B14FTA by Diodes Incorporated
Results Overview of ZXMN3B14FTA by Diodes Incorporated
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
ZXMN3B14FTA Information
ZXMN3B14FTA by Diodes Incorporated is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for ZXMN3B14FTA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
69AH3976
|
Newark | Mosfet, N-Ch, 30V, 2.9A, 150Deg C, 1W Rohs Compliant: Yes |Diodes Inc. ZXMN3B14FTA RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1561 |
|
$0.2880 / $0.6300 | Buy Now |
|
DISTI #
86AK6610
|
Newark | Mosfet, N-Ch, 30V, 2.9A, Sot-23 Rohs Compliant: Yes |Diodes Inc. ZXMN3B14FTA RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.2250 / $0.2500 | Buy Now |
|
DISTI #
ZXMN3B14FTA
|
Avnet Americas | - Tape and Reel (Alt: ZXMN3B14FTA) COO: Germany RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 26 Weeks, 0 Days Container: Reel | 0 |
|
$0.1915 / $0.1985 | Buy Now |
|
DISTI #
70438831
|
RS | MOSFET N-CHANNEL 30V 3.5A SOT23 Min Qty: 10 Package Multiple: 1 Container: Bulk | 0 |
|
$1.9100 | RFQ |
|
DISTI #
ZXMN3B14FTA
|
TME | Transistor: N-MOSFET, unipolar, 30V, 2.9A, Idm: 16A, 1W, SOT23 Min Qty: 1 | 0 |
|
$0.2410 / $0.6100 | RFQ |
|
DISTI #
ZXMN3B14FTA
|
Avnet Silica | (Alt: ZXMN3B14FTA) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 28 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for ZXMN3B14FTA
ZXMN3B14FTA CAD Models
ZXMN3B14FTA Part Data Attributes
|
|
ZXMN3B14FTA
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
ZXMN3B14FTA
Diodes Incorporated
Small Signal Field-Effect Transistor, 2.9A I(D), 30V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, SOT-23, 3 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOT-23 | |
| Package Description | Sot-23, 3 Pin | |
| Pin Count | 3 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 26 Weeks | |
| CAGE Code | 12060,6M0U4 | |
| UNSPSC | 32111615 | |
| Samacsys Description | Mosfet N-Channel 30v 3.5a Sot23 Diodes Inc Zxmn3b14fta N-Channel Mosfet Transistor, 3.5 A, 30 V, 3-Pin Sot-23 | |
| Samacsys Modified On | 2025-01-11 17:33:49 | |
| Category CO2 Kg | 8.8 | |
| EU RoHS Version | Rohs 2 (2015/863/Eu) | |
| Candidate List Date | 2025-01-21 | |
| EFUP | E | |
| Conflict Mineral Status | Drc Conflict Free | |
| Conflict Mineral Status Source | Cmrt V6.50 | |
| Configuration | Single With Built-In Diode | |
| DS Breakdown Voltage-Min | 30 V | |
| Drain Current-Max (ID) | 2.9 A | |
| Drain-source On Resistance-Max | 0.08 Ω | |
| FET Technology | Metal-Oxide Semiconductor | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | Enhancement Mode | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-Channel | |
| Qualification Status | Not Qualified | |
| Surface Mount | Yes | |
| Terminal Finish | Matte Tin | |
| Terminal Form | Gull Wing | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | Switching | |
| Transistor Element Material | Silicon |
