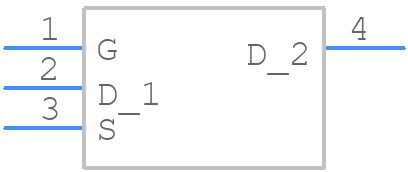

Part Symbol
-

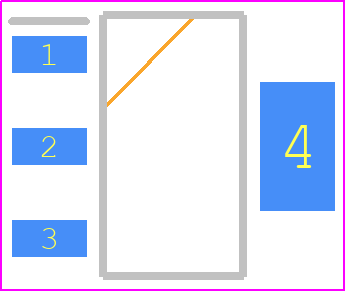

Footprint
-

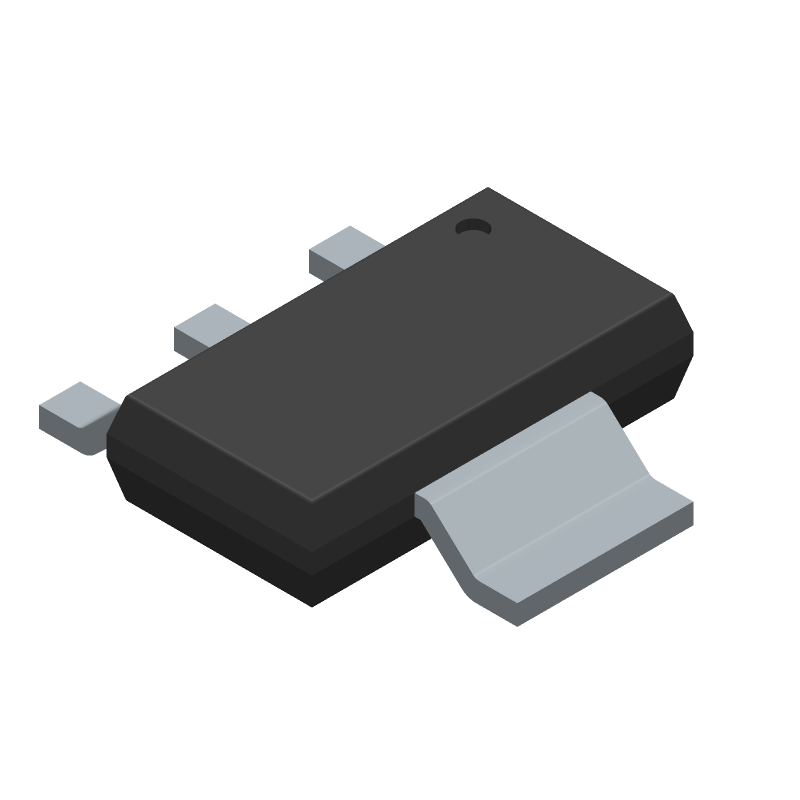

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ZXMN6A11GTA by Diodes Incorporated
Results Overview of ZXMN6A11GTA by Diodes Incorporated
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ZXMN6A11GTA Information
ZXMN6A11GTA by Diodes Incorporated is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for ZXMN6A11GTA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ZXMN6A11GTA
|
Avnet Americas | - Tape and Reel (Alt: ZXMN6A11GTA) COO: China RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel | 743000 Factory Stock |
|
$0.1866 / $0.1934 | Buy Now |
|
DISTI #
70438841
|
RS | MOSFET N-CHANNEL 60V 4.4A SOT223 Min Qty: 5 Package Multiple: 1 Container: Bulk | 0 |
|
$0.8100 / $0.9500 | RFQ |
|
|
Bristol Electronics | 95 |
|
RFQ | ||
|
DISTI #
ZXMN6A11GTA-DIO-0
|
TME | Transistor: N-MOSFET, N, 60V, 4.4A, SOT223, SMT Min Qty: 1000 | 9000 |
|
$0.2965 | Buy Now |
|
|
ComSIT USA | 60V N-CHANNEL ENHANCEMENT MODE MOSFET Power Field-Effect Transistor, 4.4A I(D), 60V, 0.12ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
ZXMN6A11GTA
|
Avnet Asia | (Alt: ZXMN6A11GTA) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days | 0 |
|
$0.2211 / $0.2473 | Buy Now |
|
DISTI #
ZXMN6A11GTA
|
Avnet Silica | (Alt: ZXMN6A11GTA) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks, 0 Days | Silica - 20000 |
|
Buy Now | |
|
|
LCSC | 60V 4.4A 16W 180m4.5V2A 3V 1 N-Channel SOT-223 Single FETs MOSFETs RoHS | 12 |
|
$0.3017 / $0.5679 | Buy Now |
|
|
New Advantage Corporation | ZXMN6A11G Series 60 V 0.12 Ohm N-Channel Enhancement Mode MOSFET - SOT-223 RoHS: Compliant Min Qty: 1 Package Multiple: 1000 | 238000 |
|
$0.4231 / $0.4583 | Buy Now |
Part Details for ZXMN6A11GTA
ZXMN6A11GTA CAD Models
ZXMN6A11GTA Part Data Attributes
|
|
ZXMN6A11GTA
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
ZXMN6A11GTA
Diodes Incorporated
Small Signal Field-Effect Transistor, 3.8A I(D), 60V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, SOT-223, 4 PIN
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIODES INC | |
| Part Package Code | SOT-223 | |
| Package Description | SOT-223, 4 PIN | |
| Pin Count | 4 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 60 V | |
| Drain Current-Max (ID) | 3.1 A | |
| Drain-source On Resistance-Max | 0.12 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 17.1 pF | |
| JESD-30 Code | R-PDSO-G4 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 4 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 2 W | |
| Pulsed Drain Current-Max (IDM) | 15.6 A | |
| Qualification Status | Not Qualified | |
| Reference Standard | MIL-STD-202 | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
ZXMN6A11GTA Frequently Asked Questions (FAQ)
-
The recommended PCB footprint for the ZXMN6A11GTA is a standard SOT23 package with a 1.3mm x 1.3mm pad size and a 0.5mm x 0.5mm thermal pad.
-
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 1uF and a maximum ESR of 1 ohm, and to place the output capacitor as close to the output pin as possible.
-
The maximum ambient temperature range for the ZXMN6A11GTA is -40°C to 125°C, but the device can operate up to 150°C with derating.
-
Yes, the ZXMN6A11GTA is suitable for high-reliability applications, as it is built with a robust design and has undergone rigorous testing to ensure its reliability and performance.
-
The power dissipation of the ZXMN6A11GTA can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
