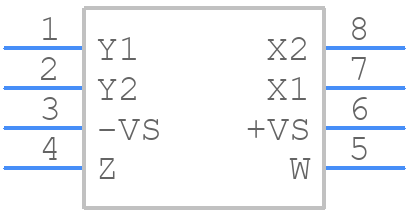

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD633ARZ-R7 by Analog Devices Inc
Results Overview of AD633ARZ-R7 by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Environmental Monitoring
Industrial Automation
Agriculture Technology
Medical Imaging
Electronic Manufacturing
AD633ARZ-R7 Information
AD633ARZ-R7 by Analog Devices Inc is an Analog Computational Function.
Analog Computational Functions are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for AD633ARZ-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
4018225RL
|
Farnell | ANALOG MULTIPLIER, 20V/US, NSOIC RoHS: Compliant Min Qty: 10 Lead time: 11 Weeks, 1 Days Container: Reel | 705 |
|
$10.0048 / $13.0947 | Buy Now |
|
DISTI #
4018225
|
Farnell | ANALOG MULTIPLIER, 20V/US, NSOIC RoHS: Compliant Min Qty: 1 Lead time: 11 Weeks, 1 Days Container: Cut Tape | 705 |
|
$10.0048 / $17.3689 | Buy Now |
|
|
Analog Devices Inc | Bipolar Multiplier 4Quad Min Qty: 1 Package Multiple: 1000 | 8 |
|
$8.0250 / $15.2400 | Buy Now |
|
DISTI #
AD633ARZ-R7
|
Richardson RFPD | MULTIPLIER/DIVIDER RoHS: Compliant Min Qty: 1000 | 0 |
|
$8.3900 | Buy Now |
|
DISTI #
SMC-AD633ARZ-R7
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 140 |
|
RFQ | |
|
|
LCSC | 20V/us Four-Quadrant 1MHz SOIC-8 Linear - Analog Multipliers Dividers ROHS | 418 |
|
$7.5513 / $11.2555 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 1073 |
|
RFQ | |
|
|
Win Source Electronics | IC MULTIPLIER ANALOG 8-SOIC | 3320 |
|
$6.3776 / $8.2377 | Buy Now |
Part Details for AD633ARZ-R7
AD633ARZ-R7 CAD Models
AD633ARZ-R7 Part Data Attributes
|
|
AD633ARZ-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD633ARZ-R7
Analog Devices Inc
Low Cost Analog Multiplier
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | ROHS COMPLIANT, PLASTIC, MS-012AA, SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | R-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | ANALOG MULTIPLIER OR DIVIDER | |
| Bandwidth-Nom | 1 MHz | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage-Max (Vsup) | -18 V | |
| Neg Supply Voltage-Min (Vsup) | -8 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Negative Input Voltage-Max | -10 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Positive Input Voltage-Max | 10 V | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 8 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Width | 3.9 mm |
