CMOS, 24-Bit Signal Conditioning ADC with Current Source

Part Details for AD7710ANZ by Analog Devices Inc

Results Overview of AD7710ANZ by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

AD7710ANZ Information

AD7710ANZ by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.

A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.

Price & Stock for AD7710ANZ

Part # Distributor Description Stock Price Buy
DISTI # 60AK7000
Newark Adc, 24-Bit, Dip-24, -40 To 85Deg C, Resolution (Bits):24Bit, Sampling Rate:-, Input Channel Type:Differential, Data Interface:Serial, Supply Voltage Type:Single, Supply Voltage Min:4.75V, Supply Voltage Max:5.25V, No. Of Pins:24Pinsrohs Compliant: Yes |Analog Devices AD7710ANZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 0
  • 1 $59.8700
  • 5 $58.2800
  • 10 $56.7000
  • 25 $55.9100
  • 50 $55.1100
  • 100 $51.9400
$51.9400 / $59.8700 Buy Now
Analog Devices Inc 24-BIT SIGMA DELTA IC Package Multiple: 15 2340
  • 1 $62.3900
  • 1,000 $32.6400
$32.6400 / $62.3900 Buy Now
DISTI # AD7710ANZ
TME IC: A/D converter, AFE, Ch: 2, 24bit, 1028sps, 5÷10V, DIP24 Min Qty: 1 0
  • 1 $53.4000
  • 3 $48.0000
  • 10 $41.6000
$41.6000 / $53.4000 RFQ
ComSIT USA SIGNAL CONDITIONING ADC ADC, Delta-Sigma, 24-Bit, 1 Func, 2 Channel, Serial Access, CMOS, PDIP24 RoHS: Compliant ECCN: EAR99 Stock DE - 5
Stock ES - 0
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # AD7710ANZ
Richardson RFPD CONVERTER - ADC RoHS: Compliant Min Qty: 15 0
  • 15 $56.4100
  • 25 $54.0900
  • 100 $52.6400
  • 500 $51.2800
  • 1,000 $50.6200
$50.6200 / $56.4100 Buy Now

Part Details for AD7710ANZ

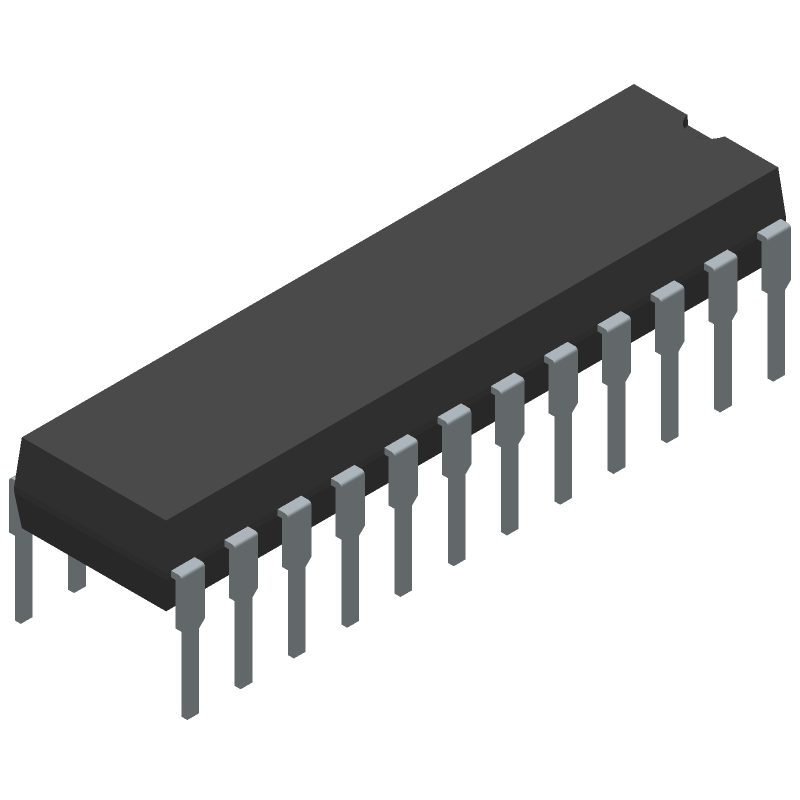

AD7710ANZ CAD Models

AD7710ANZ Part Data Attributes

AD7710ANZ Analog Devices Inc
Buy Now Datasheet
Compare Parts:
AD7710ANZ Analog Devices Inc CMOS, 24-Bit Signal Conditioning ADC with Current Source
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code DIP
Package Description 0.300 INCH, PLASTIC, MO-095AG, DIP-24
Pin Count 24
Manufacturer Package Code N-24-1
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Analog Devices
Analog Input Voltage-Max 2.5 V
Analog Input Voltage-Min -2.5 V
Converter Type ADC, DELTA-SIGMA
JESD-30 Code R-PDIP-T24
JESD-609 Code e3
Length 30.45 mm
Linearity Error-Max (EL) 0.003%
Negative Supply Voltage-Nom -5 V
Number of Analog In Channels 2
Number of Bits 24
Number of Functions 1
Number of Terminals 24
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Output Bit Code BINARY, OFFSET BINARY
Output Format SERIAL
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP24,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Sample and Hold / Track and Hold SAMPLE
Seated Height-Max 5.33 mm
Supply Voltage-Nom 5 V
Surface Mount NO
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 7.62 mm
