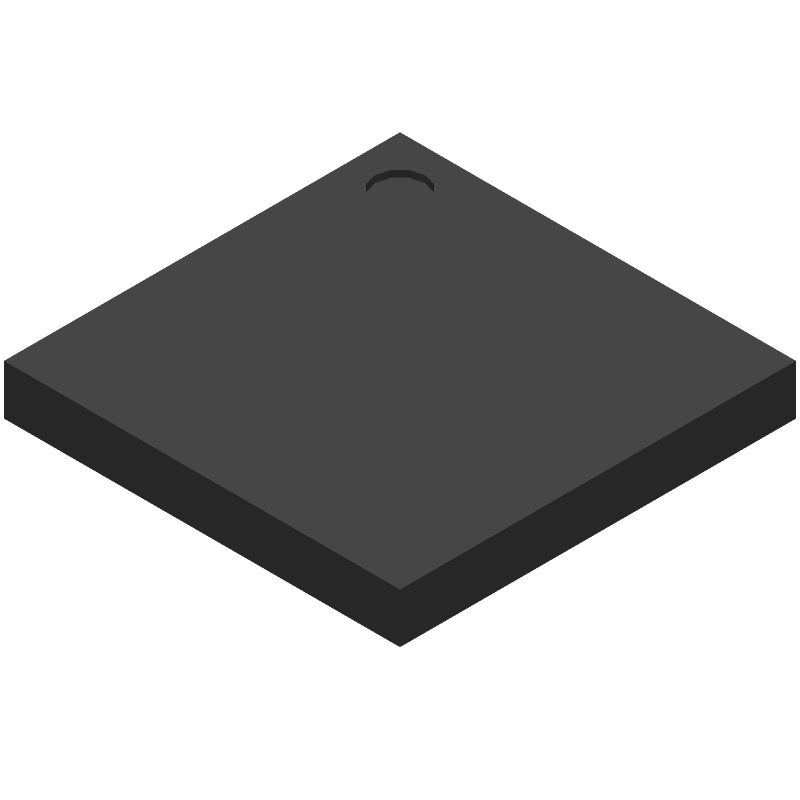

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD9174BBPZ by Analog Devices Inc
Results Overview of AD9174BBPZ by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD9174BBPZ Information
AD9174BBPZ by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD9174BBPZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AK9831
|
Newark | Da Converter, 16Bit, 12.6Gsps, Bga, Resolution (Bits):16Bit, Sampling Rate:12.6Gsps, Data Interface:Serial, Spi, Supply Voltage Range:950Mv To 1.05V, 1.71V To 1.89V, Adc/Dac Case Style:Bga, No. Of Pins:144Pins Rohs Compliant: Yes |Analog Devices AD9174BBPZ RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 1 |
|
$769.6500 | Buy Now |
|
|
Vyrian | Converters | 4 |
|
RFQ |
Part Details for AD9174BBPZ
AD9174BBPZ CAD Models
AD9174BBPZ Part Data Attributes
|
|
AD9174BBPZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD9174BBPZ
Analog Devices Inc
Dual, 16-Bit, 12.6 GSPS RF DAC and Direct Digital Synthesizer
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | BGA-144 | |
| Pin Count | 144 | |
| Manufacturer Package Code | BP-144-1 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A001.A.5.B.2.A | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2018-11-05 | |
| Samacsys Manufacturer | Analog Devices | |
| Converter Type | D/A CONVERTER | |
| Input Bit Code | BINARY | |
| Input Format | SERIAL | |
| JESD-30 Code | S-PBGA-B144 | |
| JESD-609 Code | e1 | |
| Length | 10 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Bits | 16 | |
| Number of Functions | 2 | |
| Number of Terminals | 144 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HBGA | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, HEAT SINK/SLUG | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.71 mm | |
| Supply Voltage-Nom | 1 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 10 mm |
