Part Details for ADF04S04

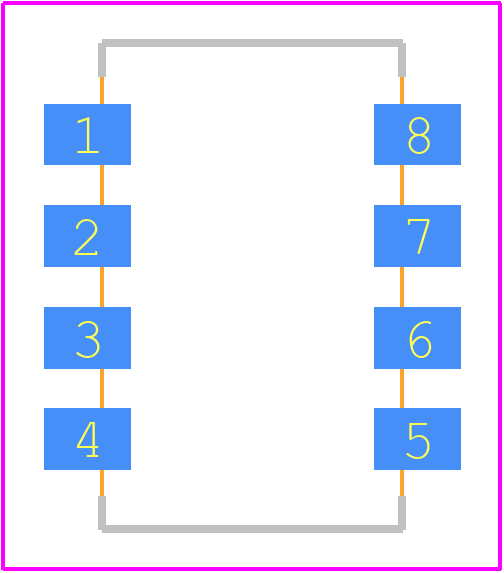

ADF04S04 CAD Models
ADF04S04 Part Data Attributes
|
|
ADF04S04
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
ADF04S04
TE Connectivity
SLIDE DIP SWITCH-4SWITCHES, SPST, LATCHED,SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.65 | |
| Samacsys Manufacturer | TE Connectivity | |
| Actuator Color | WHITE | |
| Actuator Material | POLYAMIDE6T | |
| Actuator Type | FLUSH TYPE | |
| Additional Feature | APPROVAL: UL | |
| Body Breadth | 7.5 mm | |
| Body Color | BLACK | |
| Body Height | 3.5 mm | |
| Body Length or Diameter | 12.14 mm | |
| Center Contact Material | COPPER ALLOY | |
| Center Contact Plating | GOLD | |
| Contact Current(AC)-Max | 1 A | |
| Contact Current(DC)-Max | 0.1 A | |
| Contact (DC) Max Rating R Load | 0.1A@24VDC | |
| Contact Function | OFF-ON | |
| Contact Resistance | 0.1 mΩ | |
| Contact Voltage(DC)-Max | 24 V | |
| Dielectric Withstand Volts | 300VAC V | |
| Electrical Life | 1000 Cycle(s) | |
| End Contact Material | COPPER ALLOY | |
| End Contact Plating | NICKEL | |
| Housing Material | POLYPHENYLENE SULPHIDE | |
| Insulation Resistance | 100000000 Ω | |
| Insulator Material | POLYPHENYLENE SULPHIDE | |
| JESD-609 Code | e4 | |
| Mounting Feature | PANEL MOUNT | |
| Number of Positions | 4 | |
| Number of Switch Sections | 4 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -30 °C | |
| Packing Method | BOX; TUBE | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | SPST | |
| Switch Type | SLIDE DIP SWITCH | |
| Terminal Finish | GOLD | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | SOLDER |
