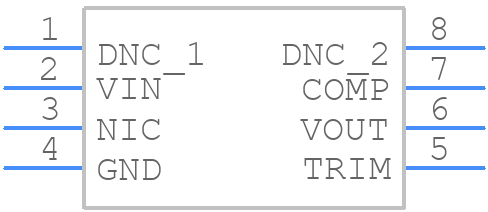

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADR433ARMZ by Analog Devices Inc
Results Overview of ADR433ARMZ by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Environmental Monitoring
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Agriculture Technology
Medical Imaging
Telecommunications
Automotive
ADR433ARMZ Information
ADR433ARMZ by Analog Devices Inc is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADR433ARMZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AK8894
|
Newark | Volt Ref, 3V, Msop-8, -40 To 125Deg C, Voltage Reference Type:Series, Product Range:Adr433 Series, Reference Voltage Min:2.996V, Reference Voltage Max:3.004V, Initial Accuracy:4Mv, Temperature Coefficient:10Ppm/°C, No. Of Pins:8Pins Rohs Compliant: Yes |Analog Devices ADR433ARMZ RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 19 |
|
$6.4300 / $13.3300 | Buy Now |
|
|
Analog Devices Inc | 3.0 V Reference Package Multiple: 50 | 3104 |
|
$4.9900 / $12.6000 | Buy Now |
|
|
Bristol Electronics | Min Qty: 1 | 3 |
|
$11.2000 | Buy Now |
|
|
Rochester Electronics | ADR433 - UltraLow Noise XFET Voltage Reference with Current Sink and Source Capability RoHS: Compliant Status: Active Min Qty: 1 | 14 |
|
$5.2400 / $6.5500 | Buy Now |
|
|
Win Source Electronics | Ultralow Noise XFET Voltage References with Current Sink and Source Capability | 400 |
|
$9.2084 / $13.8125 | Buy Now |
Part Details for ADR433ARMZ
ADR433ARMZ CAD Models
ADR433ARMZ Part Data Attributes
|
|
ADR433ARMZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADR433ARMZ
Analog Devices Inc
Ultralow Noise XFET® 3.0V Voltage Reference w/Current Sink and Source Capability
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | TSSOP | |
| Package Description | MSOP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | RM-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | OUTPUT VOLTAGE CAN BE ADJUSTED OVER A 0.5 PERCENT RANGE USING TRIM PIN | |
| Analog IC - Other Type | THREE TERMINAL VOLTAGE REFERENCE | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.03 A | |
| Output Voltage-Max | 3.004 V | |
| Output Voltage-Min | 2.996 V | |
| Output Voltage-Nom | 3 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 5 V | |
| Supply Voltage-Nom (Vsup) | 6 V | |
| Surface Mount | YES | |
| Temp Coef of Voltage-Max | 10 ppm/°C | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trim/Adjustable Output | YES | |
| Voltage Tolerance-Max | 0.13% | |
| Width | 3 mm |
Alternate Parts for ADR433ARMZ
This table gives cross-reference parts and alternative options found for ADR433ARMZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADR433ARMZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADR433ARM-REEL7 | Analog Devices Inc | Check for Price | IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 3 V, PDSO8, MO-187AA, MSOP-8, Voltage Reference | ADR433ARMZ vs ADR433ARM-REEL7 |
| ADR433AR-REEL7 | Analog Devices Inc | Check for Price | IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 3 V, PDSO8, MS-012AA, SOIC-8, Voltage Reference | ADR433ARMZ vs ADR433AR-REEL7 |
| ADR433ARZ | Analog Devices Inc | $6.2425 | Ultralow Noise XFET® 3.0V Voltage Reference w/Current Sink and Source Capability | ADR433ARMZ vs ADR433ARZ |
| ADR433AR | Analog Devices Inc | Check for Price | IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 3 V, PDSO8, MS-012AA, SOIC-8, Voltage Reference | ADR433ARMZ vs ADR433AR |
ADR433ARMZ Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for decoupling and place it close to the device.
-
Use a low-noise, low-impedance voltage source for the reference input. Ensure the input voltage is within the recommended range (2.7V to 5.5V). Use a 0.1uF decoupling capacitor between the REF pin and GND.
-
A simple RC filter (e.g., 1kΩ and 10nF) can be used to filter the output noise. For more aggressive filtering, a 2nd-order Butterworth filter can be implemented using resistors and capacitors.
-
Use a shielded enclosure, keep the device away from high-frequency sources, and use a ground plane to reduce electromagnetic interference. Use a ferrite bead or a common-mode choke to filter the power supply lines.
-
The device has a thermal pad on the bottom. Use a thermal interface material (e.g., thermal tape or thermal grease) to improve heat transfer to the PCB or a heat sink. Ensure good airflow around the device.
