Results Overview of ADS1256IDBRG4 by Texas Instruments

Distributor Offerings: (2 listings)
Number of FFF Equivalents: (0 replacements)
CAD Models: (Available)
Number of Functional Equivalents: (2 options)
Part Data Attributes: (Available)
Reference Designs: (Not Available)

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

ADS1256IDBRG4 Information

ADS1256IDBRG4 by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.

A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.

Part #	Distributor	Description	Stock	Price	Buy
ADS1256IDBRG4	Vyrian	Converters	747			RFQ
ADS1256IDBRG4	Win Source Electronics	IC ADC 24-BIT SPI PROGBL 28-SSOP	10310	9 $5.5972 20 $5.2361 30 $5.0556 43 $4.6945 56 $4.5139 70 $4.3334	$4.3334 / $5.5972	Buy Now

Part Details for ADS1256IDBRG4

ADS1256IDBRG4 CAD Models

Part Symbol
Footprint

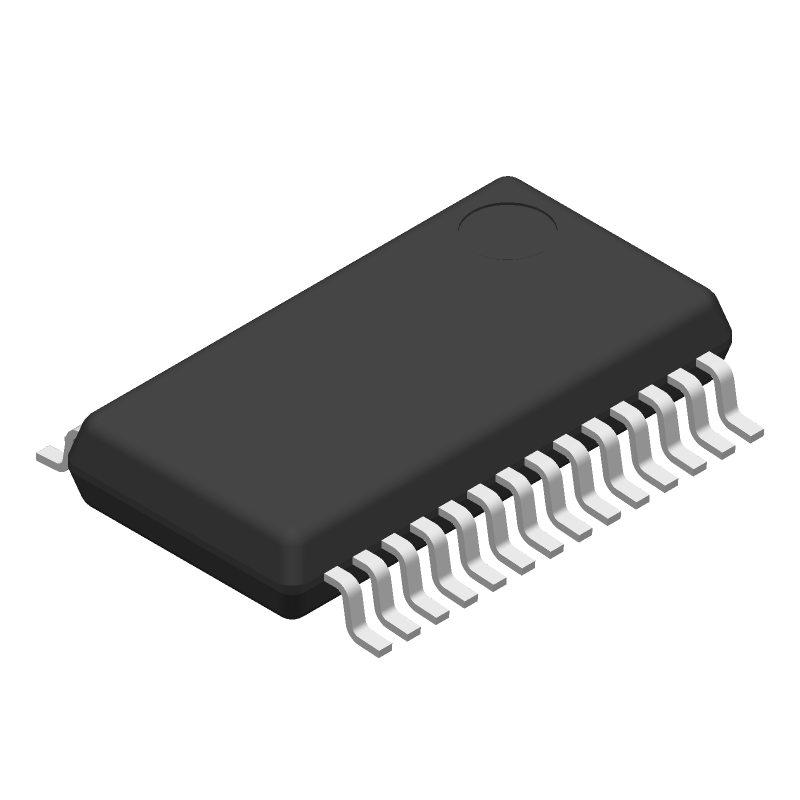

3D Model

Available Download Formats

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ADS1256IDBRG4 Part Data Attributes

Parametric Data

Show differences only	ADS1256IDBRG4 Texas Instruments Buy Now Datasheet	Buy Now	Compare Parts: ADS1256IDBRG4 Texas Instruments 24-Bit, 30kSPS, 8-Ch Delta-Sigma ADC With PGA for Factory Automation and Process Control 28-SSOP -40 to 85

Pbfree Code	Yes
Rohs Code	Yes
Part Life Cycle Code	Active
Ihs Manufacturer	TEXAS INSTRUMENTS INC
Part Package Code	SSOP
Package Description	SSOP-28
Pin Count	28
Reach Compliance Code	compliant
HTS Code	8542.39.00.01
Samacsys Manufacturer	Texas Instruments
Analog Input Voltage-Max	5.25 V
Analog Input Voltage-Min	-5 V
Converter Type	ADC, DELTA-SIGMA
JESD-30 Code	R-PDSO-G28
JESD-609 Code	e4
Length	10.2 mm
Linearity Error-Max (EL)	0.001%
Moisture Sensitivity Level	2
Number of Analog In Channels	8
Number of Bits	24
Number of Functions	1
Number of Terminals	28
Operating Temperature-Max	85 °C
Operating Temperature-Min	-40 °C
Output Bit Code	2'S COMPLEMENT BINARY
Output Format	SERIAL
Package Body Material	PLASTIC/EPOXY
Package Code	SSOP
Package Equivalence Code	SSOP28,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Sample Rate	0.03 MHz
Seated Height-Max	2 mm
Supply Current-Max	50 mA
Supply Voltage-Min	1.8 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	5.3 mm

Alternate Parts for ADS1256IDBRG4

This table gives cross-reference parts and alternative options found for ADS1256IDBRG4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADS1256IDBRG4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number	Manufacturer	Composite Price	Description	Compare
ADS1256IDBR	Texas Instruments	$13.0869	24-Bit, 30kSPS, 8-Ch Delta-Sigma ADC With PGA for Factory Automation and Process Control 28-SSOP -40 to 85	ADS1256IDBRG4 vs ADS1256IDBR
ADS1256IDBT	Texas Instruments	$9.3263	24-Bit, 30kSPS, 8-Ch Delta-Sigma ADC With PGA for Factory Automation and Process Control 28-SSOP -40 to 85	ADS1256IDBRG4 vs ADS1256IDBT

ADS1256IDBRG4 Frequently Asked Questions (FAQ)

The ADS1256IDBRG4 requires careful layout and routing to minimize noise and ensure accurate conversions. TI recommends using a 4-layer PCB with a solid ground plane, and keeping analog and digital traces separate. Additionally, use short, direct traces for the analog inputs and avoid crossing digital and analog traces.
The ADS1256IDBRG4 has a built-in calibration feature, but you may need to optimize the gain and offset for your specific application. TI recommends using the ADS1256's internal calibration feature and then fine-tuning the gain and offset using external calibration resistors or capacitors.
To ensure proper operation, TI recommends powering up the ADS1256IDBRG4 in the following sequence: VDD, AVDD, and then DVDD. This sequence helps prevent latch-up and ensures that the internal voltage regulators are properly enabled.
The ADS1256IDBRG4's high-speed digital outputs require careful handling to prevent signal degradation and electromagnetic interference (EMI). TI recommends using a low-impedance transmission line, such as a 50-ohm microstrip, and terminating the lines with a 50-ohm resistor to prevent reflections.
To synchronize multiple ADS1256IDBRG4 devices, TI recommends using a common clock source and synchronizing the devices using the SYNC pin. This ensures that all devices are sampling at the same time, which is critical in applications such as multi-channel data acquisition.
