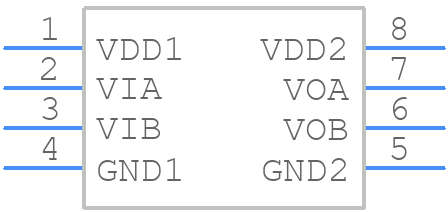

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADUM120N1BRZ by Analog Devices Inc
Results Overview of ADUM120N1BRZ by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ADUM120N1BRZ Information
ADUM120N1BRZ by Analog Devices Inc is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ADUM120N1BRZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK5716
|
Newark | Digital Isolator, 2Ch, -40 To 125Deg C, No. Of Channels:2Channels, Supply Voltage Min:1.7V, Supply Voltage Max:5.5V, Ic Case/Package:Nsoic, No. Of Pins:8Pins, Data Rate:150Mbps, Input Level:Cmos, Output Level:Cmos, Product Range:- Rohs Compliant: Yes |Analog Devices ADUM120N1BRZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 476 |
|
$1.1200 / $2.7600 | Buy Now |
|
|
Analog Devices Inc | 2ch EMC robust 3kV digital Iso Package Multiple: 98 | 8784 |
|
$0.9000 / $3.6000 | Buy Now |
|
DISTI #
ADUM120N1BRZ
|
TME | IC: interface, digital isolator, 150Mbps, iCoupler®, 1.7÷5.5VDC Min Qty: 1 | 0 |
|
$2.2100 / $2.8400 | RFQ |
|
|
ComSIT USA | AVAILABLE EU | 28 |
|
RFQ | |
|
|
ComSIT USA | Interface Circuit, CMOS, PDSO8 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
ADUM120N1BRZ
|
Richardson RFPD | INTERFACE - TRANSCEIVER RoHS: Compliant Min Qty: 1 | 0 |
|
$1.2200 / $1.3500 | Buy Now |
|
|
Vyrian | Interface ICs | 3539 |
|
RFQ | |
|
|
Win Source Electronics | 3.0 kV rms, Dual-Channel Digital Isolators | IC DGTL ISO 2CH LOGIC 8SOIC | 10000 |
|
$0.8588 / $1.2881 | Buy Now |
Part Details for ADUM120N1BRZ
ADUM120N1BRZ CAD Models
ADUM120N1BRZ Part Data Attributes
|
|
ADUM120N1BRZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADUM120N1BRZ
Analog Devices Inc
ADUM120N1BRZ
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Pin Count | 8 | |
| Manufacturer Package Code | R-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | ALSO OPERATES AT 2.5V, 3.3V, 5V NOMINAL SUPPLY | |
| Interface IC Type | INTERFACE CIRCUIT | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.55 mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 1.7 V | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for ADUM120N1BRZ
This table gives cross-reference parts and alternative options found for ADUM120N1BRZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADUM120N1BRZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SI8620EB-B-IS | Silicon Laboratories Inc | $0.8435 | Analog Circuit, 1 Func, CMOS, PDSO8, SOIC-8 | ADUM120N1BRZ vs SI8620EB-B-IS |
| ADUM5200ARWZ | Analog Devices Inc | $6.5869 | Dual-Channel Isolators with Integrated DC-to-DC Converter (2/0 channel directionality) | ADUM120N1BRZ vs ADUM5200ARWZ |
| ADUM1200BR-RL7 | Analog Devices Inc | Check for Price | Dual-Channel Digital Isolator (2/0 Channel Directionality) | ADUM120N1BRZ vs ADUM1200BR-RL7 |
| HCPL-9030-500E | Broadcom Limited | Check for Price | Analog Circuit, 1 Func, CMOS, PDIP8, DIP-8 | ADUM120N1BRZ vs HCPL-9030-500E |
| HCPL-0930-500E | Avago Technologies | Check for Price | SPECIALTY LOGIC CIRCUIT, PDSO8, ROHS COMPLIANT, SOP-8 | ADUM120N1BRZ vs HCPL-0930-500E |
| IL511-3E | NVE Corporation | Check for Price | Analog Circuit, 2 Func, PDSO8, SOIC-8 | ADUM120N1BRZ vs IL511-3E |
| ISO7220MDRG4 | Texas Instruments | Check for Price | Dual-channel, 2/0, 150-Mbps digital isolator 8-SOIC -40 to 125 | ADUM120N1BRZ vs ISO7220MDRG4 |
| SI8620EB-ASR | Silicon Laboratories Inc | Check for Price | Analog Circuit, 1 Func, CMOS, PDSO8, SOIC-8 | ADUM120N1BRZ vs SI8620EB-ASR |
| IL511-1TR7 | NVE Corporation | Check for Price | Analog Circuit, 2 Func, PDSO8, MSOP-8 | ADUM120N1BRZ vs IL511-1TR7 |
| HCPL-9030-000E | Avago Technologies | Check for Price | SPECIALTY LOGIC CIRCUIT, PDIP8, 0.300 INCH, ROHS COMPLIANT, DIP-8 | ADUM120N1BRZ vs HCPL-9030-000E |
ADUM120N1BRZ Frequently Asked Questions (FAQ)
-
The ADUM120N1BRZ can support data rates up to 100 Mbps.
-
Yes, the ADUM120N1BRZ is rated for operation from -40°C to +125°C, making it suitable for high-temperature applications.
-
The ADUM120N1BRZ has a high common-mode transient immunity of 25 kV/μs, making it suitable for applications with high electromagnetic interference (EMI).
-
Yes, the ADUM120N1BRZ is pin-compatible with other digital isolators from Analog Devices, making it easy to upgrade or replace existing designs.
-
The typical power consumption of the ADUM120N1BRZ is 1.5 mA per channel at 5 V, making it suitable for low-power applications.
