Drivers And Interfaces / Other Interface ICs / ADUM1250ARZ-RL7
Datasheets
ADUM1250ARZ-RL7 by:

Hot Swappable, Dual I<sup>2</sup>C Isolators

Part Details for ADUM1250ARZ-RL7 by Analog Devices Inc

Results Overview of ADUM1250ARZ-RL7 by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Aerospace and Defense Automotive

ADUM1250ARZ-RL7 Information

ADUM1250ARZ-RL7 by Analog Devices Inc is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.

A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.

Price & Stock for ADUM1250ARZ-RL7

Part # Distributor Description Stock Price Buy
DISTI # 60AK5748
Newark Digital Isolator, 2Ch, -40 To 105Deg C, No. Of Channels:2Channels, Supply Voltage Min:3V, Supply Voltage Max:5.5V, Ic Case/Package:Nsoic, No. Of Pins:8Pins, Data Rate:1Mbps, Input Level:-, Output Level:-, Isolation Type:Magnetic Rohs Compliant: Yes |Analog Devices ADUM1250ARZ-RL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 3
  • 1 $7.6500
  • 10 $5.9700
  • 25 $5.2700
  • 50 $4.8800
  • 100 $4.4900
  • 250 $4.1100
  • 500 $3.8800
  • 1,000 $3.6800
$3.6800 / $7.6500 Buy Now
Analog Devices Inc DUAL-Hot-Swappable 12C Isolato Min Qty: 1 Package Multiple: 1000 483
  • 1 $8.6600
  • 10 $5.9620
  • 25 $5.2660
  • 100 $4.4874
  • 250 $4.1099
  • 500 $3.8800
  • 1,000 $3.6891
  • 2,000 $3.5625
$3.5625 / $8.6600 Buy Now
Bristol Electronics   1173
RFQ
Bristol Electronics   Min Qty: 1 40
  • 1 $8.4000
  • 4 $5.4600
  • 11 $4.2000
  • 31 $3.9203
$3.9203 / $8.4000 Buy Now
DISTI # ADUM1250ARZ-RL7
TME IC: interface, digital isolator, 1Mbps, iCoupler®, 3÷5.5VDC, I2C Min Qty: 1000 0
  • 1,000 $1.3000
$1.3000 RFQ
Ameya Holding Limited Hot Swappable,Dual I2C Isolators 11572
RFQ
DISTI # ADUM1250ARZ-RL7
Richardson RFPD DIGITAL ISOLATOR RoHS: Compliant Min Qty: 1000 0
  • 1,000 $3.7200
$3.7200 Buy Now
CHIPMALL.COM LIMITED SOIC-8-150mil I2C Isolators ROHS 5904
  • 1 $1.2826
  • 10 $1.2336
  • 100 $1.1161
  • 500 $1.0574
$1.0574 / $1.2826 Buy Now
LCSC SOIC-8-150mil I2C Isolators ROHS 6068
  • 1 $1.3714
  • 10 $1.0901
  • 30 $0.9695
  • 100 $0.8191
  • 500 $0.7521
  • 1,000 $0.7119
$0.7119 / $1.3714 Buy Now
Win Source Electronics DGTL ISO 2.5KV 2CH I2C 8SOIC 46430
  • 55 $0.9823
  • 110 $0.9190
  • 170 $0.8873
  • 245 $0.8239
  • 320 $0.7922
  • 395 $0.7605
$0.7605 / $0.9823 Buy Now

Part Details for ADUM1250ARZ-RL7

ADUM1250ARZ-RL7 CAD Models

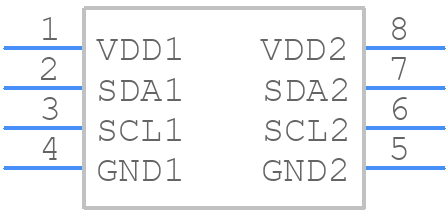

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ADUM1250ARZ-RL7 Part Data Attributes

Parametric Data
ADUM1250ARZ-RL7 Analog Devices Inc
Buy Now Datasheet
Compare Parts:
ADUM1250ARZ-RL7 Analog Devices Inc Hot Swappable, Dual I<sup>2</sup>C Isolators
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code SOIC
Package Description ROHS COMPLIANT, MS-012AA, SOIC-8
Pin Count 8
Manufacturer Package Code R-8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Analog Devices
Interface IC Type DIGITAL ISOLATOR
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.9 mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Supply Voltage-Max 5.5 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 3.9 mm

ADUM1250ARZ-RL7 Related Parts

ADUM1250ARZ-RL7 Frequently Asked Questions (FAQ)

  • A good PCB layout for the ADUM1250ARZ-RL7 involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.

  • To ensure reliable operation of the ADUM1250ARZ-RL7 in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device.

  • The recommended input termination scheme for the ADUM1250ARZ-RL7 is a 50-ohm resistor in series with the input signal, while the recommended output termination scheme is a 50-ohm resistor in parallel with the output signal.

  • To troubleshoot common issues with the ADUM1250ARZ-RL7, start by checking the power supply voltage, ensuring it's within the recommended range. Then, verify the input signal integrity and check for any signal reflections or ringing. Finally, check the output signal using an oscilloscope to identify any distortion or anomalies.

  • Operating the ADUM1250ARZ-RL7 at frequencies above 100 Mbps may require additional considerations, such as using a higher-speed grade of the device, optimizing the PCB layout for high-frequency operation, and ensuring that the input and output signals are properly terminated.
